SECUREconnect 100

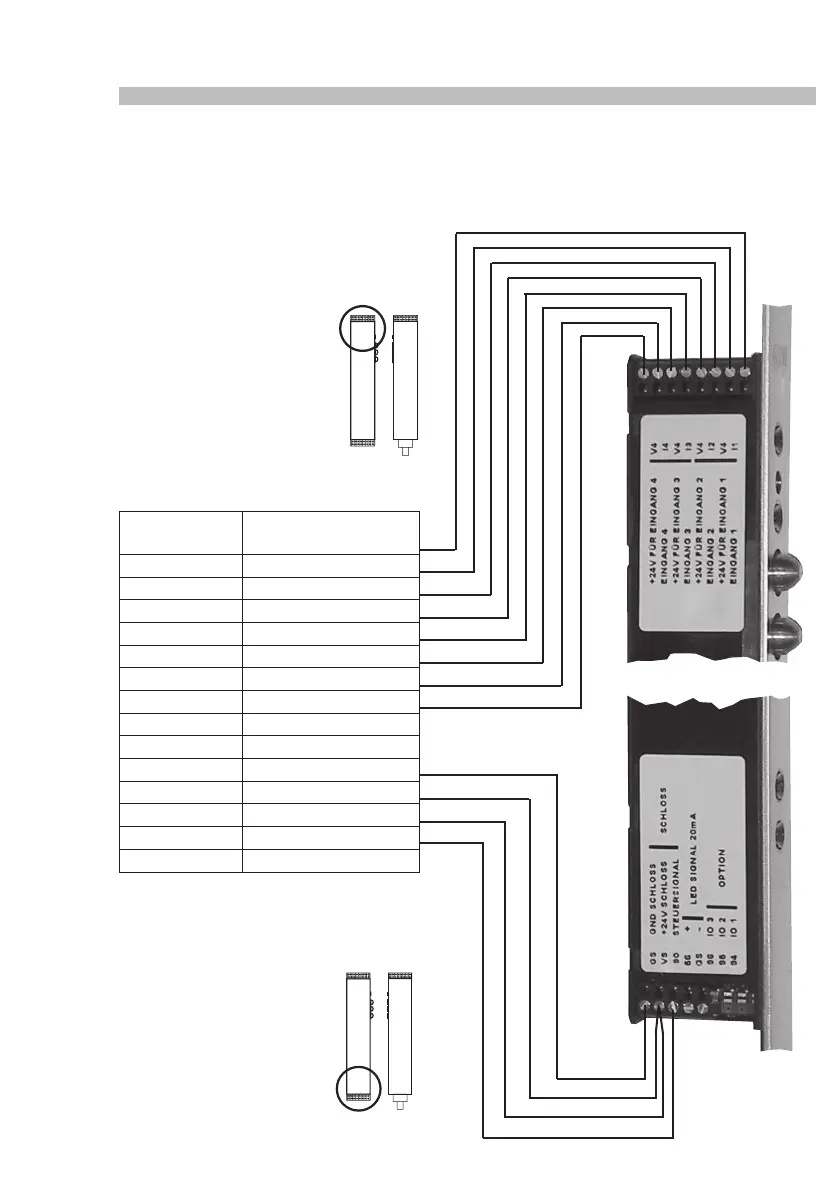

7.4 Connection diagram of motor-driven lock
Series 19 (with 14-wire connecting cable)
Connecting
cable
Signal
Blue Locked COM
Red Locked NO
Black Unlocked COM
Purple Unlocked NO
Grey-pink Locking cam COM
Red-blue Locking cam NO
White-green Function output COM
Brown-green Function output NO
Green Not assigned
Yellow Function input
White GND
Brown + 24V
Grey Door contact
Pink Control line
SECUREconnect 100F
