-14-
G0516 Lathe/Mill
Attach Mill/Drill to
Lathe
To attach the mill/drill unit to the lathe body:
1. Get the help of an assistant.
2. Locate the included nut that fits on the large
bolt in the mounting bracket, so you have it
ready for the next step.
3. Place the bottom end of the mill/drill unit over
the mounting bolt and up against the mount-
ing bracket, then have your assistant thread
the nut onto the bolt as shown in Figure 5 —
but DO NOT tighten the nut yet.

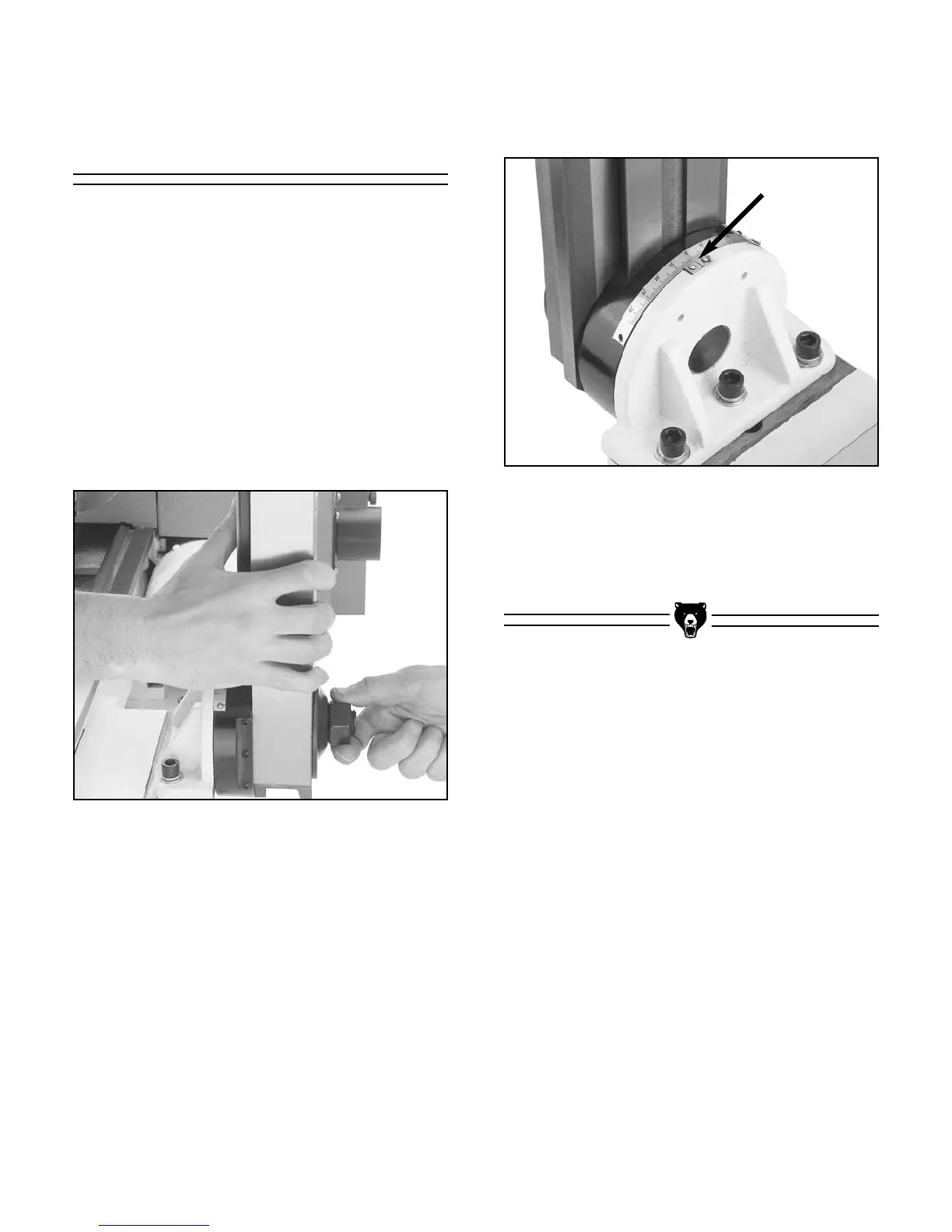

Figure 5. Threading nut onto bolt with mill/drill
unit in place against mounting bracket.
Figure 6. Mill/drill swivel scale aligned with hub
indicator line in the “0” position.
4. Align the indicator on the mounting bracket
with the “0” line on the mill/drill swivel scale,
as shown in Figure 6.
5. Now, tighten the large nut that attaches the
mill/drill unit to the lathe hub bracket.
