G0516 Lathe/Mill -43-

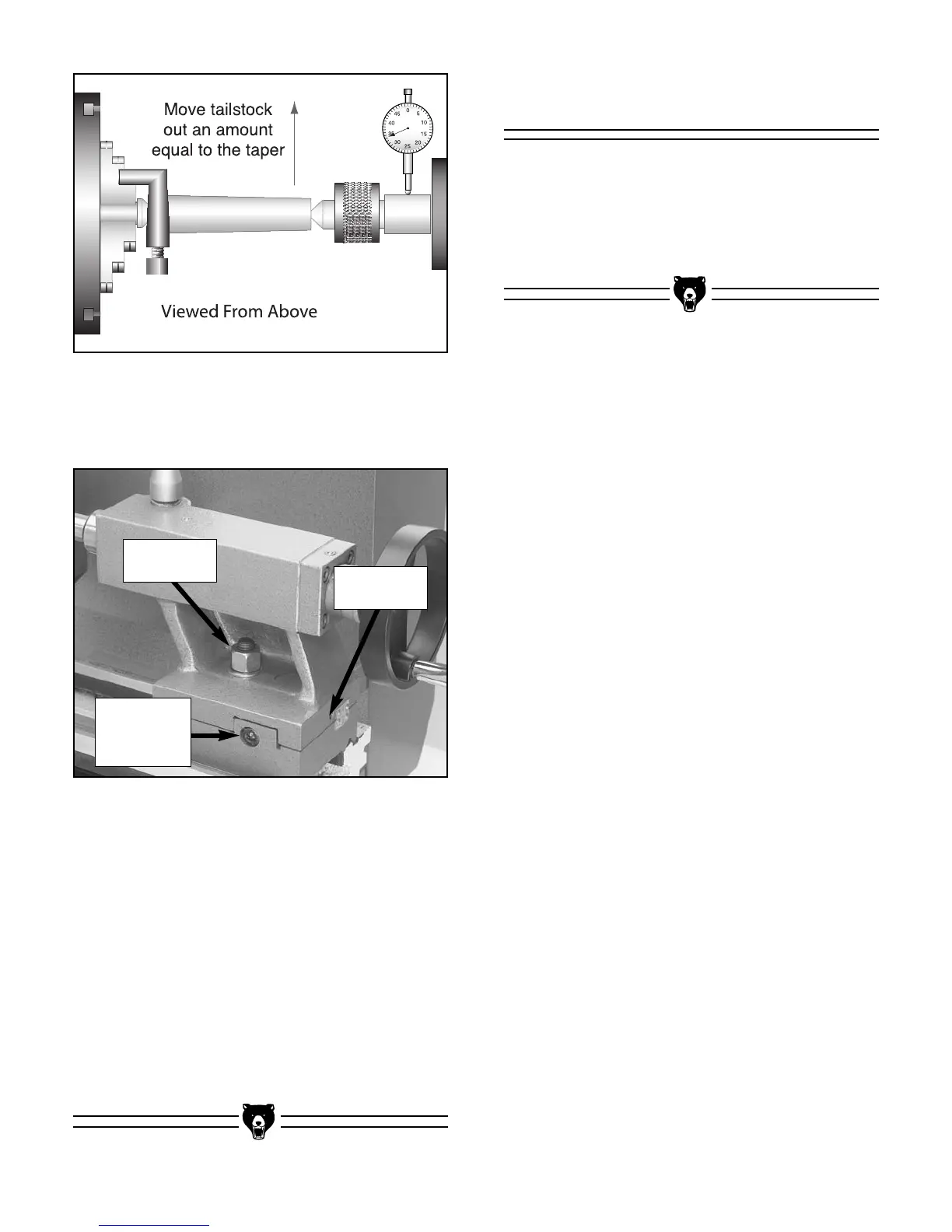

Figure 73. Adjusting for tailstock end taper.
7. Loosen the tailstock clamp nut and the lock
screw shown in Figure xx.
Figure 74. Tailstock offset adjustment screw.
Bearing Preload
This lathe is shipped from the factory with the
bearing preload already set. If the preload
requires resetting for whatever reason, please
contact our service department for further
instructions.
8. Use the tailstock adjustment screws on both
sides to adjust move the tailstock offset by
the amount of the taper.
9. Tighten the clamp nut, lock screw and adjust-
ment screws. Be careful not to move the tail-
stock out of position when tightening the
adjustment screws.
10. Turn another .010'' off of the stock and check
for taper. Repeat steps 7-9 as necessary
until the desired amount of accuracy is
achieved.
Tailstock
Clamp Nut
Adjustment
Screw
(one side)
Tailstock
Lock Screw
