G0516 Lathe/Mill -31-

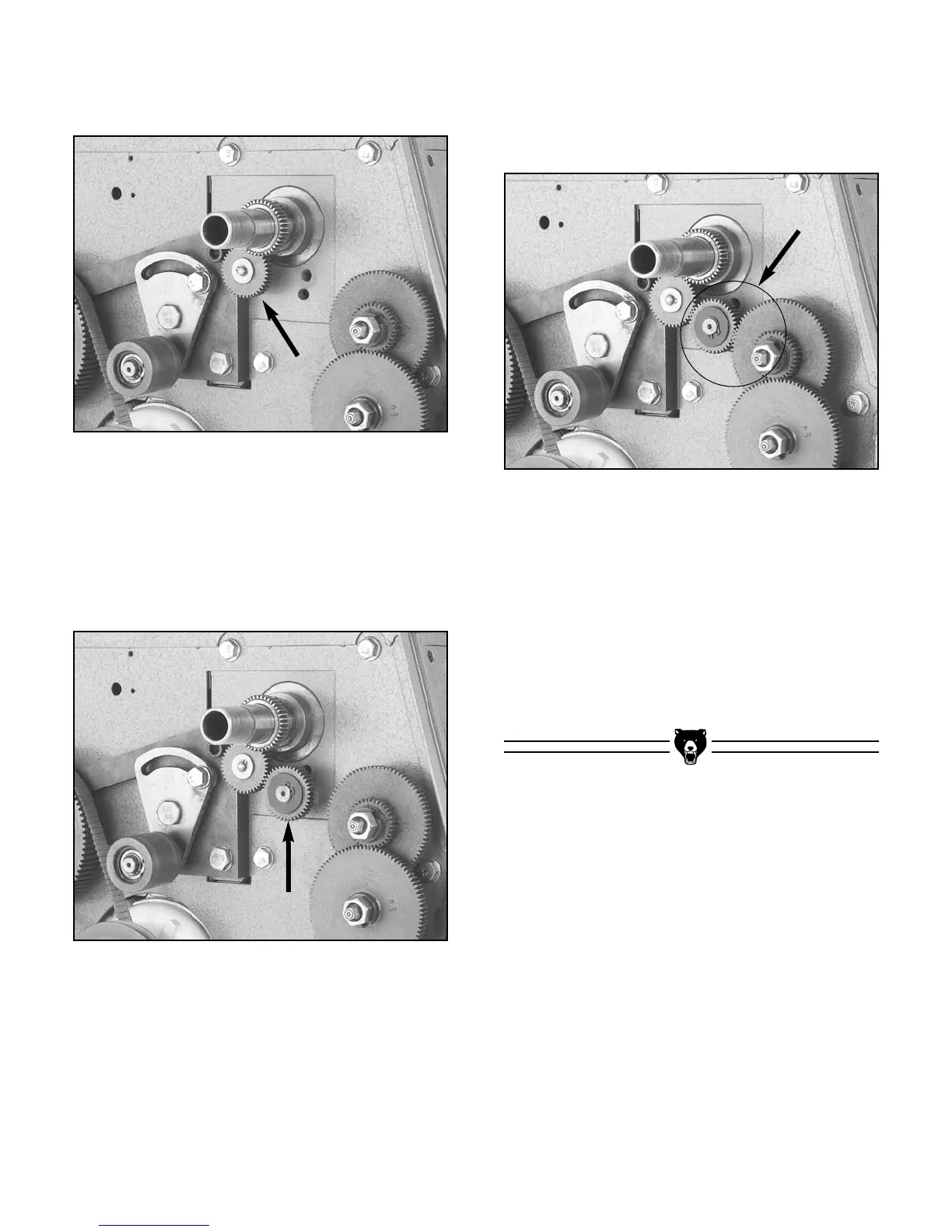

Figure 46. Extra fixed-shaft gear mounted in
position “A.”
Figure 47. Fixed-shaft gear mounted in
position “B.”
3. Thread the extra fixed-shaft gear into mount-
ing location “A” as shown in Figure 46.
4. When the machine is shipped, a fixed-shaft
gear is in position “C.” Remove that fixed-
shaft gear from mounting location “C” and
thread it into mounting location “B” as shown
in Figure 47.
Figure 48. All gears in mesh for reverse
threading operations.
5. Loosen the cap screw on the gear bracket,
and pivot the bracket so the top gear mesh-
es with the fixed-shaft gear that is in position
“B,” as shown in Figure 48.
6. Tighten the cap screw in the gear bracket to
keep it from pivoting.
7. Spin the lathe chuck by hand to ensure that
the gears do not bind.
8. Replace the cover and test run the machine
before proceeding with your specific opera-
tion.
