To replace the V-belts:
1. DISCONNECT THE PLANER FROM
POWER!
2. Loosen the button head cap screws and
remove the following access panels:
• Top left side access panel.
• Bottom left side access panel.
• Rear bottom access panel.
3. Loosen the top fasteners on the cutterhead/
feed motor tension rods shown in
Figure 23.
4. With assistance, lift the motor up and slide all
four V-belts off the pulleys.
5. Slide the new belts onto the pulleys and lower
the motor.
Note: Make sure to remount the smaller feed
belt on the outside of the feed tension pulley
as shown in
Figure 24.
6. Adjust the tension of all four V-belts as
described in the next set of procedures.

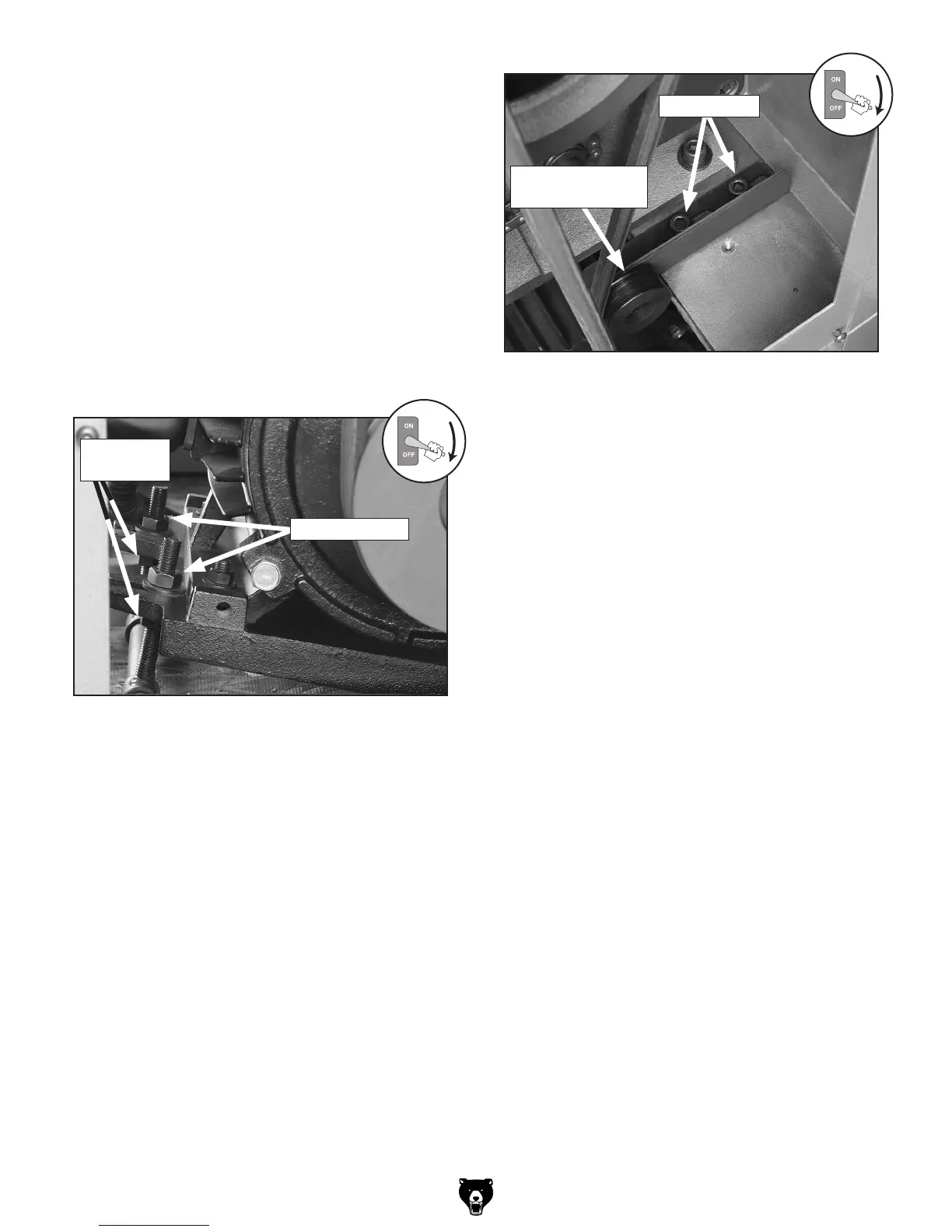

Figure 24. Feed belt mounted on feed belt
tension pulley (top left access panel removed).
Cap Screws
Feed Belt
Tension Pulley
To adjust V-belt tension:
1. Loosen the top tension rod fasteners shown
in Figure 23, then lower the bottom fasteners
at least one inch.
2. With assistance, position the motor so that
there is about
1
⁄4" deflection for each of
the three cutterhead V-belts when moderate
pressure is applied midway between the pul
-
leys.
3. As you maintain the position of the motor,
tighten the bottom fasteners snug to the bot
-
tom side of the motor mount.
4. Tighten the top fasteners to hold the motor
firmly in place.
5. Reach through the top left access opening
and loosen the two cap screws on the feed
belt tension assembly (see
Figure 24).
6. Position the feed belt tension pulley so that
there is about
1
⁄4" deflection on the feed belt
when moderate pressure is applied midway
between the pulleys.
7. While maintaining the above position of the
tension assembly, retighten the two cap
screws.
Figure 23. Cutterhead/feed motor tension rod
fasteners (bottom left access panel removed).
Top Fasteners
Bottom
Fasteners
