Grizzly G0603X User Manual

G0603X 25" Extreme Series Planer
-41-

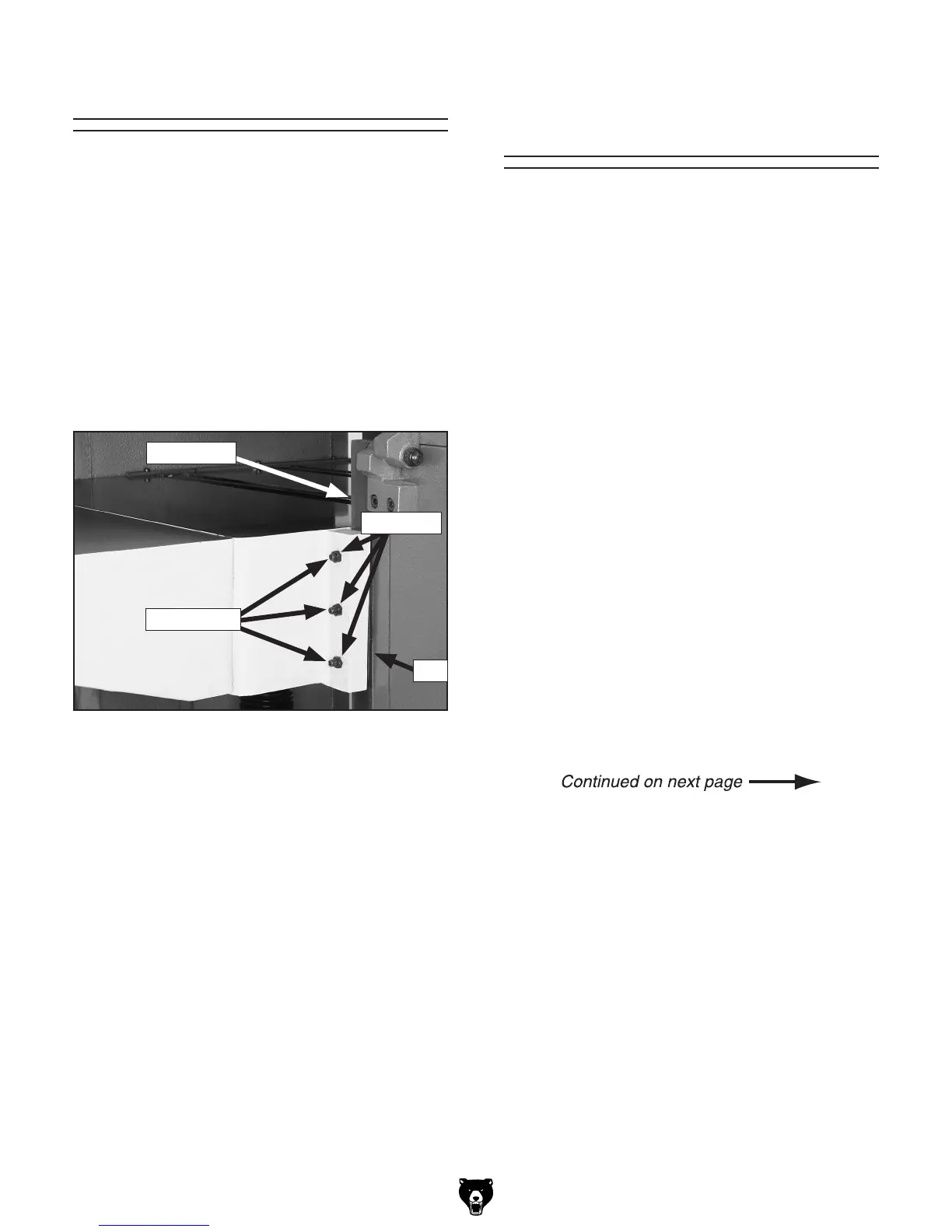

Figure 38. Table gib and way.
Set Screws
Jam Nuts
Gib
Table Way
2. Adjust the set screws.
Note: If you unscrew the gib set screws too
far, the gib will fall out. If this should happen,
replace the gib so that the set screws are
seated in the indents on the gib.
4. Using the table handwheel, move the table
up and down to ensure that the gibs are not
binding on the table ways.
Calibrate Table
Roller Scale
Tools Needed: Qty
Straightedge ...................................................... 1
Wrench 14mm ...................................................
1
Wrench 17mm ...................................................
1
The table rollers provide even planing pressure
from side-to-side and front-to-back by pushing the
workpiece up against the feed rollers.
To calibrate the table roller scale:
1. Lower the table all the way down.
2. DISCONNECT THE PLANER FROM
POWER!
3. Set the table roller control on the right side of
the table to zero.
4. Place the straightedge across the one of the
table rollers at one side of the table—the
roller should just touch the straightedge.
— If the table roller is level with the table, go
to Step 6.
— If the table roller is above or below the
height of the table, continue to Step 5
.
Adjust Table Gibs
Tools Needed: Qty
Hex Wrench 4mm ..............................................
1
Wrench 12mm ...................................................
1
The table gibs keep the table snug to the ways as
it moves up and down. Using the table handwheel,
movement should be midway between
“hard to
move” and
“too easy.”
To adjust the table gibs:
1. Loosen the gib jam nuts on the table (see
Figure 38).
