-16-
G0645 Benchtop Mortising Machine
7. Place the extension block over the rack and
base, and align the mounting holes, as shown
in Figure 15.
Test Run
Once the assembly is complete, test run your
machine.
If, during the test run, you cannot easily locate
the source of an unusual noise or vibration, stop
using the machine immediately, then review the
Troubleshooting on Page 25.
If you still cannot remedy a problem, contact our
Tech Support at (570) 546-9663 for assistance.
To test run the machine:
1. Make sure you have read the safety instruc-
tions at the beginning of the manual and that
the machine is setup properly.
2. Verify that there is not a drill bit or chisel
installed, and that all tools are cleared away
from the machine.
3. Connect the machine to the power source.
4. Turn the machine ON.
5. Listen to and watch for abnormal noises or
actions. The machine should run smoothly
with little or no vibration or rubbing noises.
— Strange or unusual noises should be inves
-
tigated and corrected before operating the
machine further. Always disconnect the
machine from power when investigating or
correcting potential problems.
6. Turn the machine OFF.

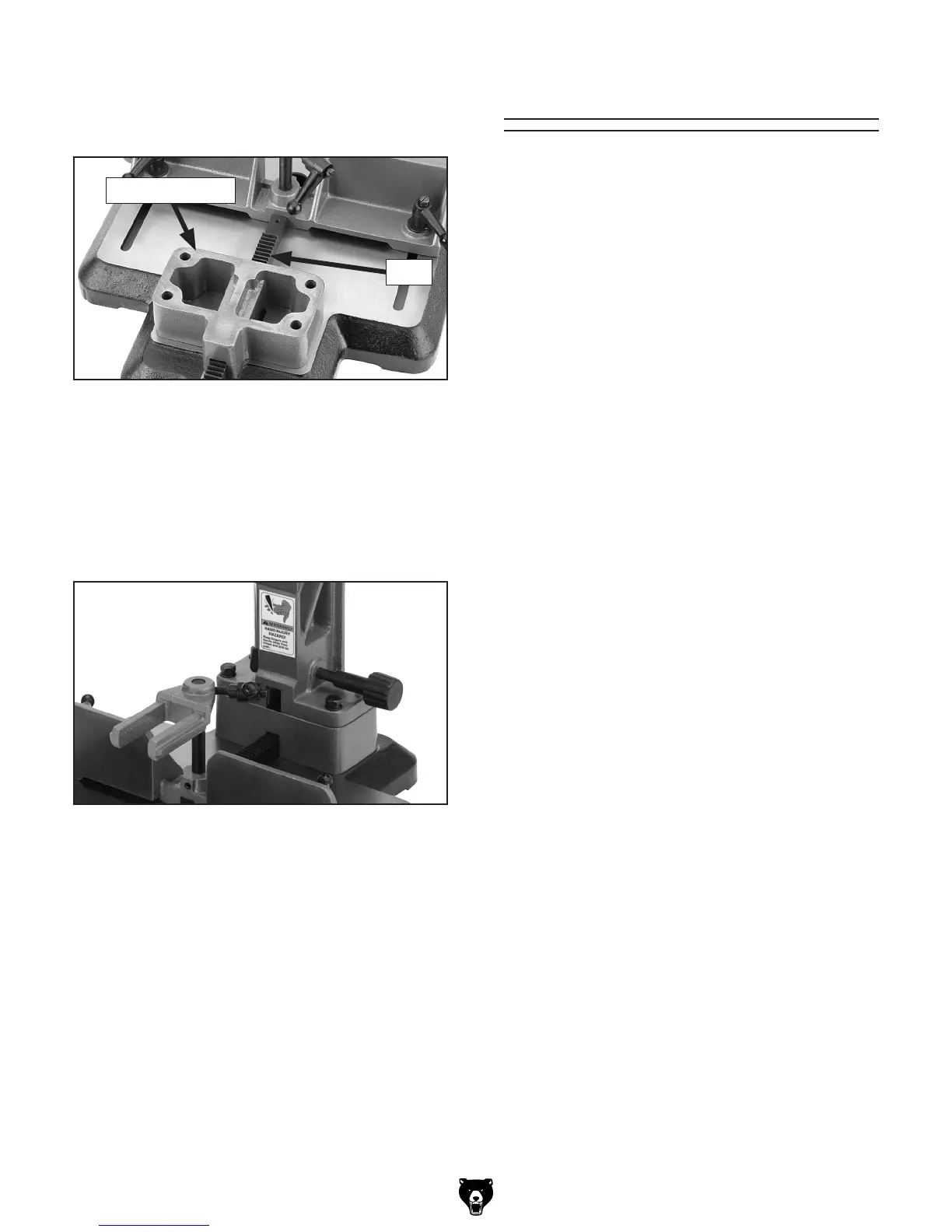

Figure 16. Extension block installed.
8. Place the column over the extension block,
align the mounting holes, have an assistant
hold the headstock upright, and secure the
column to the base with the M8-1.25 x 80 hex
bolts and the washers removed in Step 6, as
shown in Figure 16.
Figure 15. Extension block positioned on base.
Extension Block
Rack
To Next Page
