-20-
G0645 Benchtop Mortising Machine
Hold Down
The fence can be moved back and forth on the
table by loosening the spring-loaded lock levers,
rotating the fence adjustment knob, and tightening
the lock levers (Figure 24).
Note:
The fence adjustment knob cannot be used
when the extension block is installed.

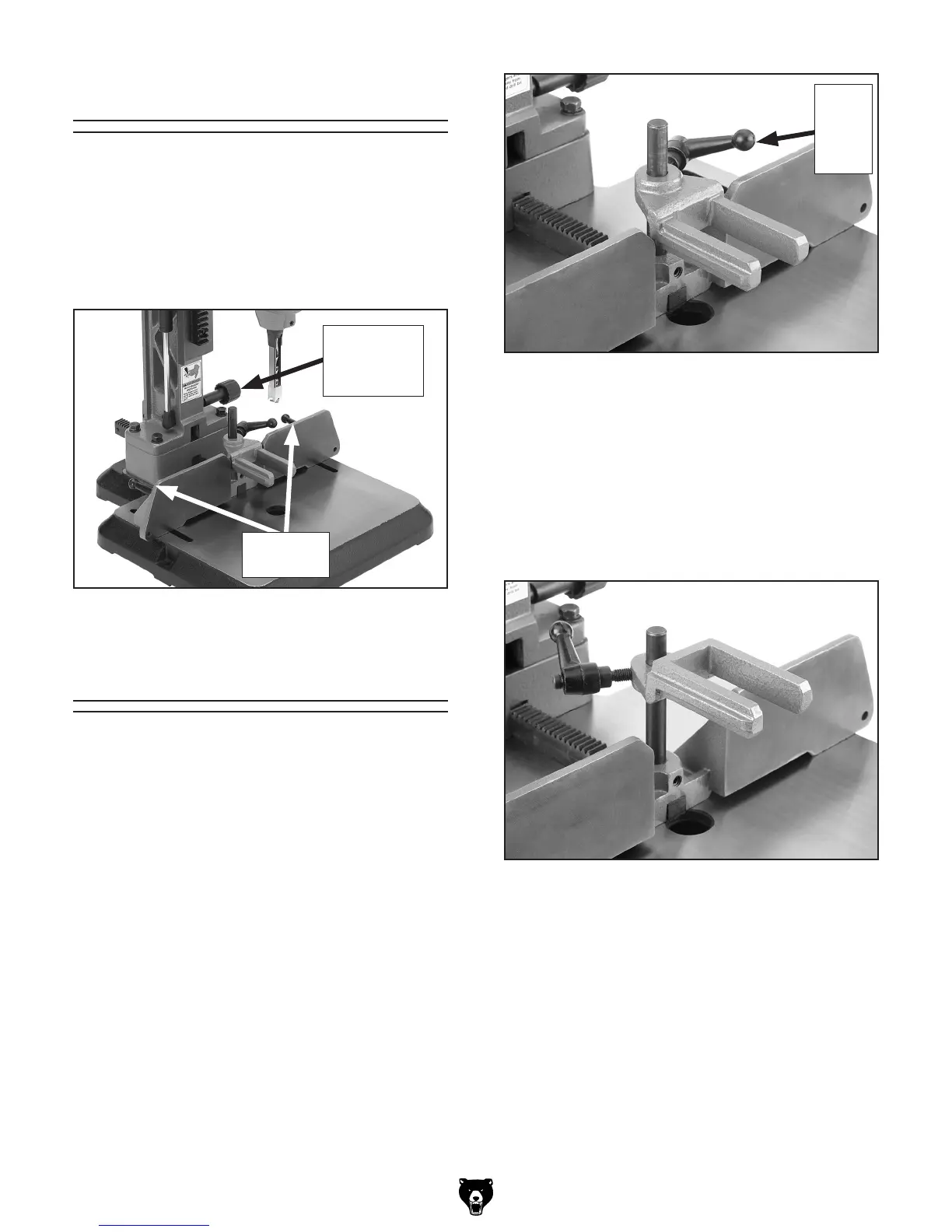

Figure 24. Fence controls.
Fence
Adjustment
Knob
Lock
Levers
The hold down acts as a clamp, holding the
workpiece to the table surface. The hold down
must be used to keep the workpiece from raising
when the chisel is removed after a cut
.
To use the hold down:
1. Position the chisel over the workpiece and
lock the depth stop rod.
Adjusting Fence
Figure 26. High hold down position.
2. Loosen the hold down rod lock lever, adjust
the bottom of the hold down
1
/16" above the
top of the workpiece—allowing the workpiece
to move horizontally for making multiple mor
-
tises, then secure the lock lever, as shown in
Figure 25.
When placed in the position shown in
Figure
25, the bracket will hold down a workpiece
slightly taller than the fence
.
Figure 25. Low hold down position.
Hold
Down
Lock
Lever
The hold down may also be placed directly on
the workpiece when making multiple mortis
-
es. However, each time you cut a mortise you
will have to loosen the lock knob, move the
workpiece, and then secure the hold down.
You can also
flip the hold down to hold thicker
workpieces, as shown in Figure 26.
