-18-
Model G0758 (Mfd. Since 2/14)
A B-16 x R8 arbor is included for the drill chuck
that comes with this machine. The following pro-
cedure describes how to install the arbor in the
chuck.
After the arbor is installed in the drill chuck, it
is very difficult to separate the assembly. If you
would like to use a different chuck in the future,
we recommend getting a new arbor for that chuck.
Important: DO NOT install the drill chuck and
arbor into the spindle until AFTER the test run.
To join drill chuck and arbor:
1. Use mineral spirits to clean drill chuck and
arbor mating surfaces, especially the bore.
2. Retract chuck jaws completely into chuck.
3. Insert small end of arbor into chuck.
4. Hold assembly by arbor and tap chuck onto
a block of wood with medium force, as illus-
trated in Figure 15.
Joining Drill Chuck
& Arbor

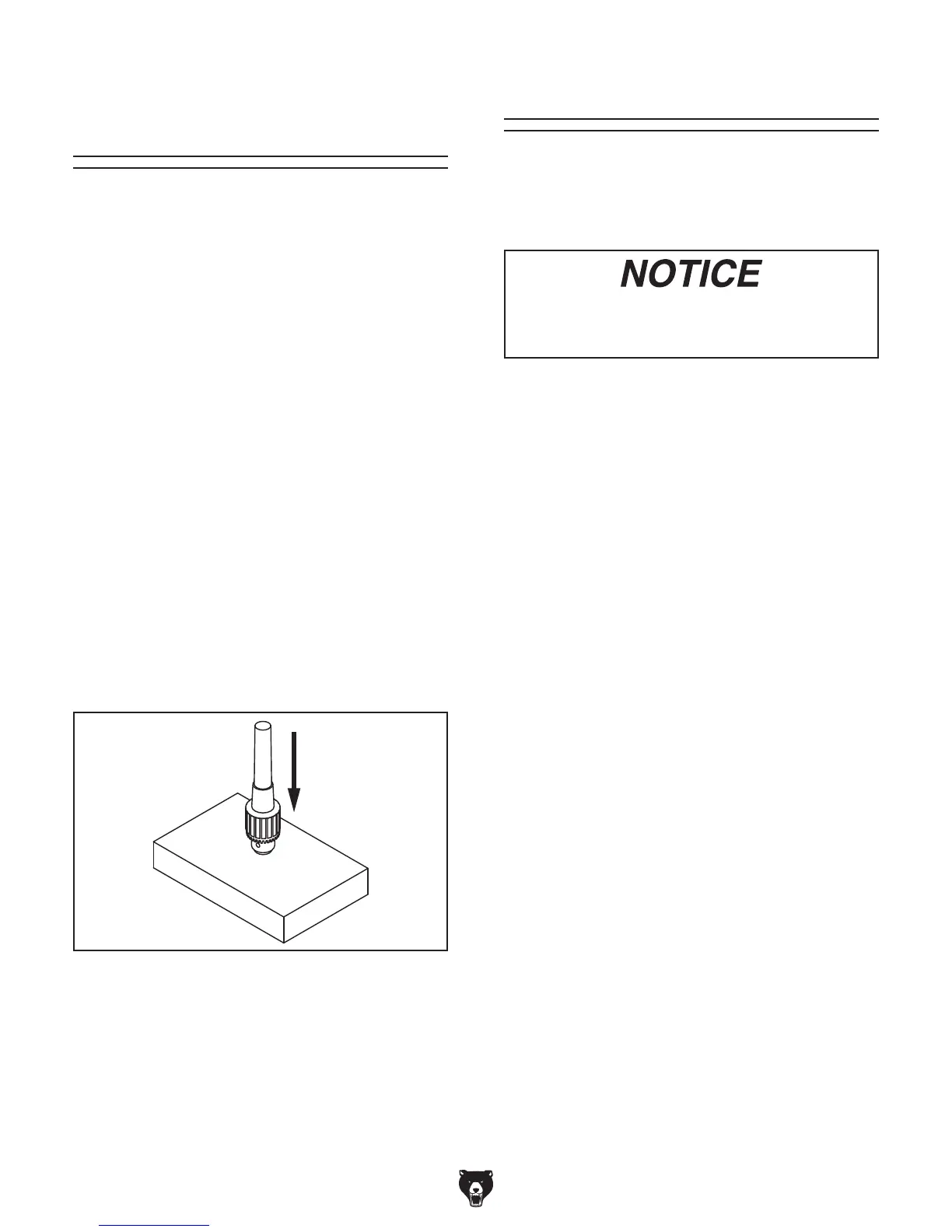

Figure 15. Tapping drill chuck/arbor on block of
wood.
5. Attempt to separate drill chuck and arbor by
hand . If you can pull them apart, repeat this
procedure.
The lubrication procedures highlighted in the
Lubrication subsection of SECTION 6:
MAINTENANCE must be completed before per-
forming the test run or spindle break-in.
Lubricating Mill/Drill
Damage caused by running the mill/drill
without first properly lubricating headstock
gears will not be covered under warranty.
Note: Refer to Installing/Removing Tooling sec-
tion on Page 25 for installing arbor into spindle
instructions.
