Model G0758 (Mfd. Since 2/14)
-39-
READ ELECTRICAL SAFETY
ON PAGE 36!

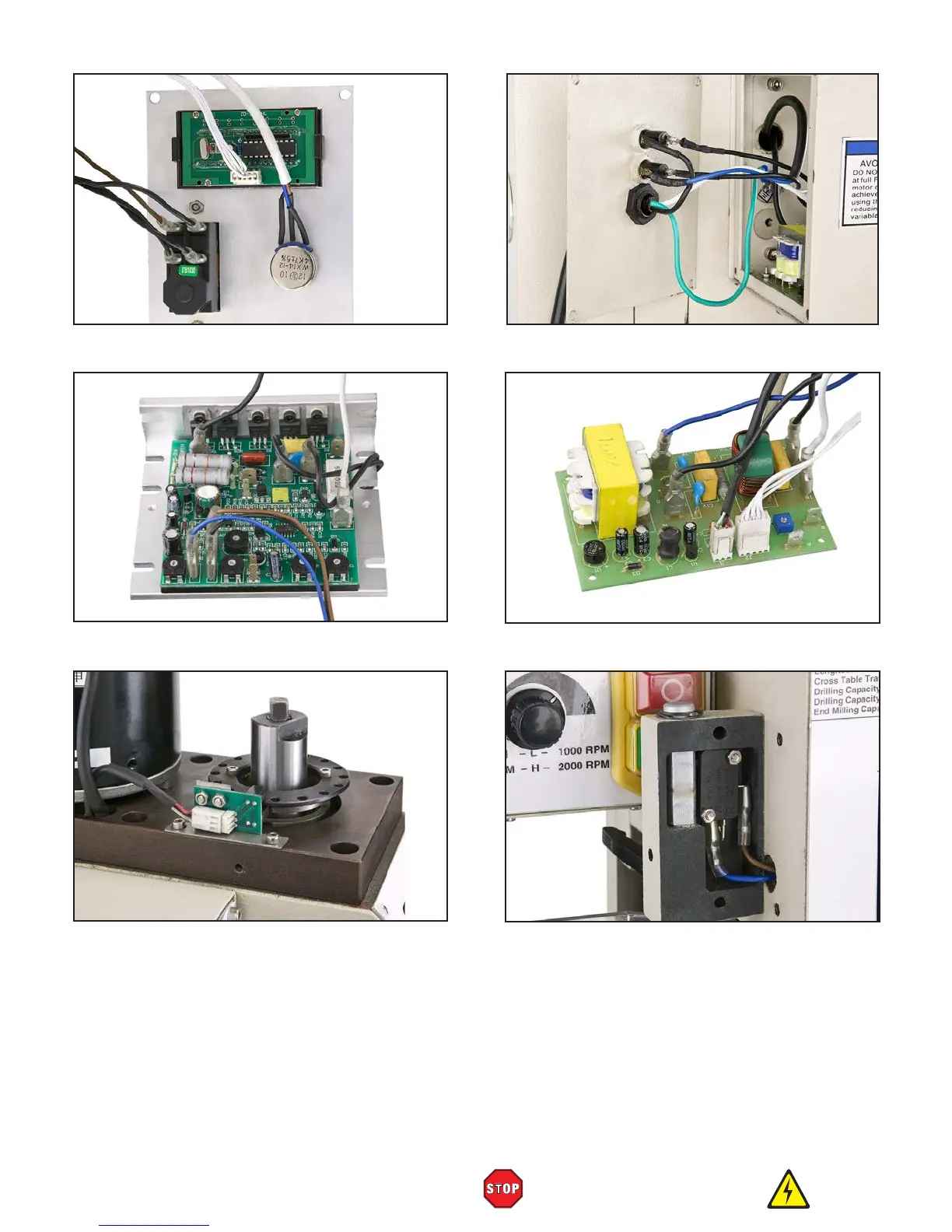

Figure 51. Front panel. Figure 54. Rear panel.
Figure 52. JD-014 circuit board. Figure 55. CESX 1101-28 circuit board.
Figure 53. Spindle RPM sensor. Figure 56. Guard limit switch.
