Model G0771 (Mfd. Since 8/15)
Inventory
Box 1 Contents (Figures 9–11): Qty
A. Main Table Saw Unit .................................. 1
B. Access Panel .............................................. 1
C. Motor Cover ................................................ 1
D. Extension Wings ........................................ 2
E. Blade Guard Assembly .............................. 1
F. Table Insert ................................................. 1
G. Dado Insert ................................................. 1
H. Saw Blade 10" x 40T .................................. 1
I. Spreader/Riving Knife................................. 1
J. Push Stick .................................................. 1
K. Fence Handle with Mounting Bolt .............. 1
L. Wrench 23mm Closed,
22mm Open...........................................1 Ea
M. Handwheels ................................................ 2
N. Connecting Bars ......................................... 3
O. Miter Gauge Handle with Washer .............. 1
P. Miter Gauge ................................................ 1
Q. Star Knobs .................................................. 2
R. Hex Wrenches 3, 4, 5, 6, 8mm .............1 Ea
S. Fence Rail End Caps ................................. 4
T. Dust Port 4" ................................................ 1
Box 2 Contents (Figure 12): ....................... Qty
U. Fence.......................................................... 1
V. Front Fence Rail Sections .......................... 2
W. Rear Fence Rail Sections .......................... 2
X. Fence Rail Brace ........................................ 1

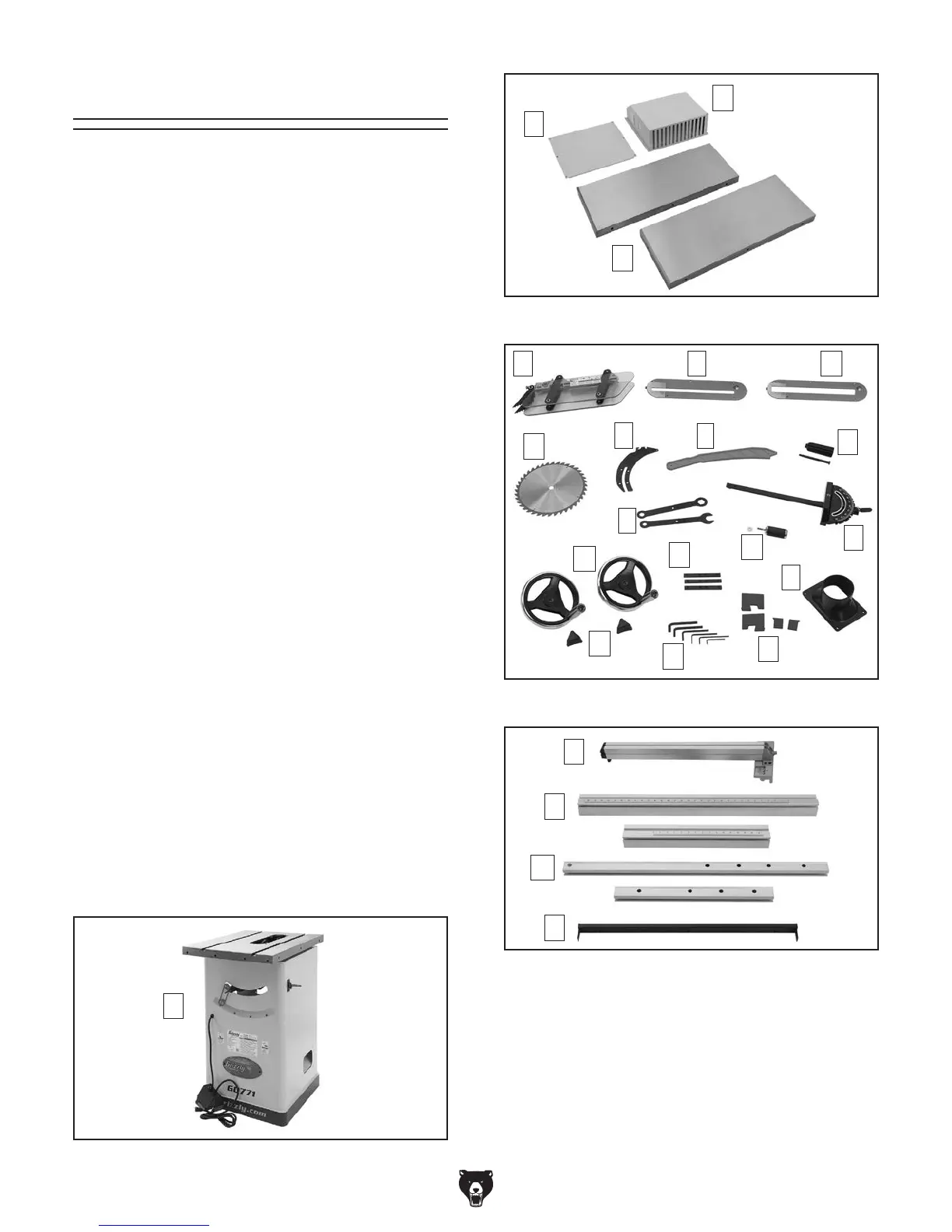

Figure 9. Main table saw unit.
A
Figure 10. Extension wings and access panel.
B
D
C
Figure 11. Component inventory.
M
E F G
I
K
J
L
H
Q
P
O
N
S
R
T
Hardware (Not Shown) Qty
Cap Screws M10-1.5 x 30 ................................. 6
Cap Screws M8-1.25 x 20 ................................. 9
Hex Bolts M8-1.25 x 30 ..................................... 9
Hex Nuts M8-1.25 ............................................ 16
Flat Washers 10mm .......................................... 6
Lock Washers 10mm ......................................... 6
Figure 12. Fence rail brace and fence rails.
U
W
X
V
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
