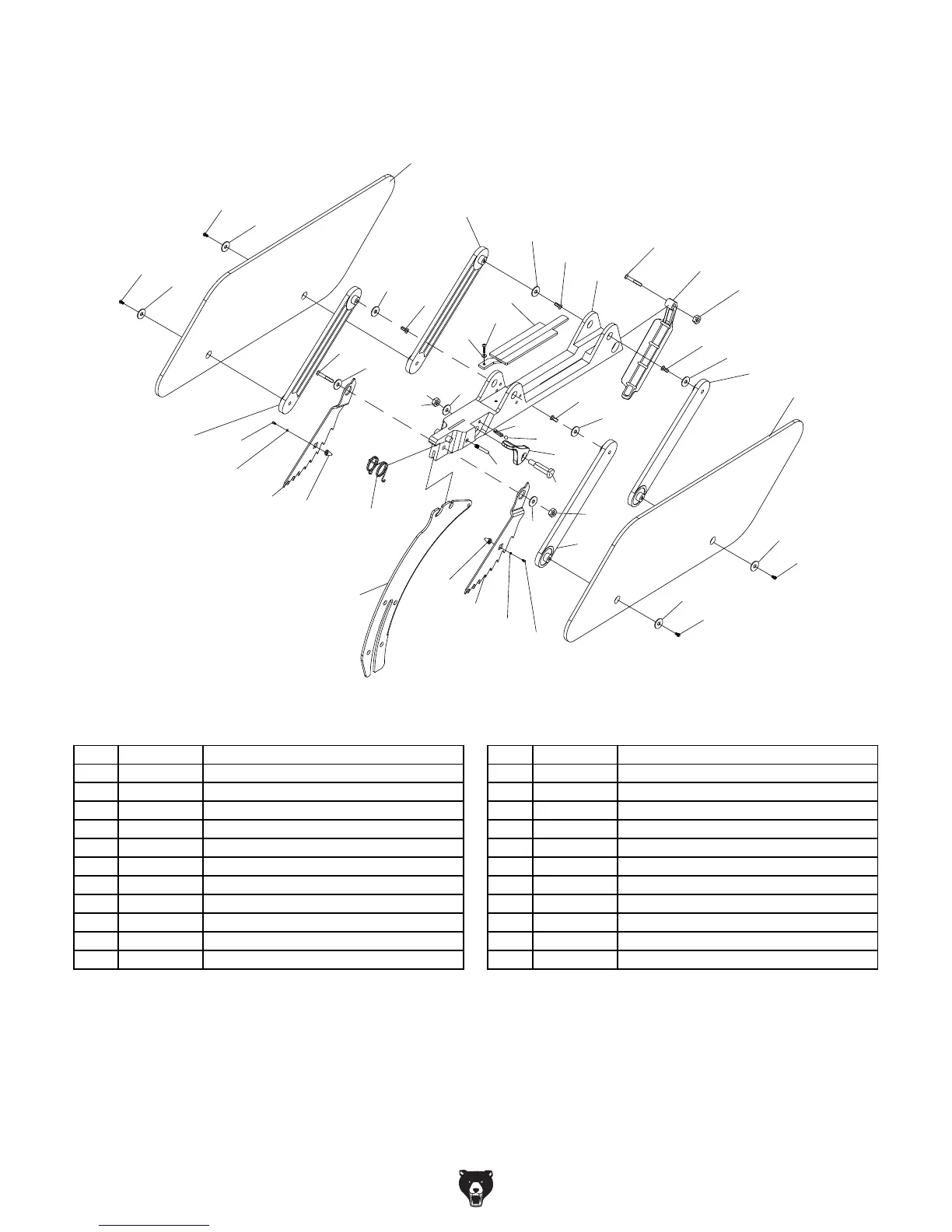

Grizzly G0771 - Blade Guard Components

-76-
Model G0771 (Mfd. Since 8/15)
Blade Guard
401
402
403
404
405
406
407
408
409
410
411
412
414
415
416
417
420
421
422
423
409
407
406
413
408
410
408
408
410
408
408
408
408
409
407
407
408
404
423
418
422
401
409
408
401
424
410
425
413
410
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0771401 LOCK NUT M5-.8 413 P0771413 FLAT WASHER 5MM
402 P0771402 SET PIN 414 P0771414 BLADE GUARD LOCK LEVER
403 P0771403 TORSION SPRING 415 P0771415 BLADE GUARD LOCK LEVER SCREW
404 P0771404 SCREW CAP 416 P0771416 ANTI-KICKBACK PAWL (L)
405 P0771405 BLADE GUARD BODY 417 P0771417 ANTI-KICKBACK PAWL (R)
406 P0771406 BARRIER 418 P0771418 SPREADER/RIVING KNIFE
407 P0771407 BARRIER CONNECTING BAR 420 P0771420 COMPRESSION SPRING
408 P0771408 FLAT WASHER 5MM 421 P0771421 STEEL BALL 4MM
409 P0771409 HEX BOLT M5-.8 X 10 422 P0771422 FLAT WASHER 3MM
410 P0771410 PHLP HD SCR M5-.8 X 10 423 P0771423 TAP SCREW M3 X 6
411 P0771411 GUARD RAIL 424 P0771424 CAP SCREW M5-.8 X 30
412 P0771412 PHLP HD SCR M5-.8 X 25 425 P0771425 BLADE GUARD WINDOW COVER
