-4-
Model G0771 (Mfd. Since 8/15)

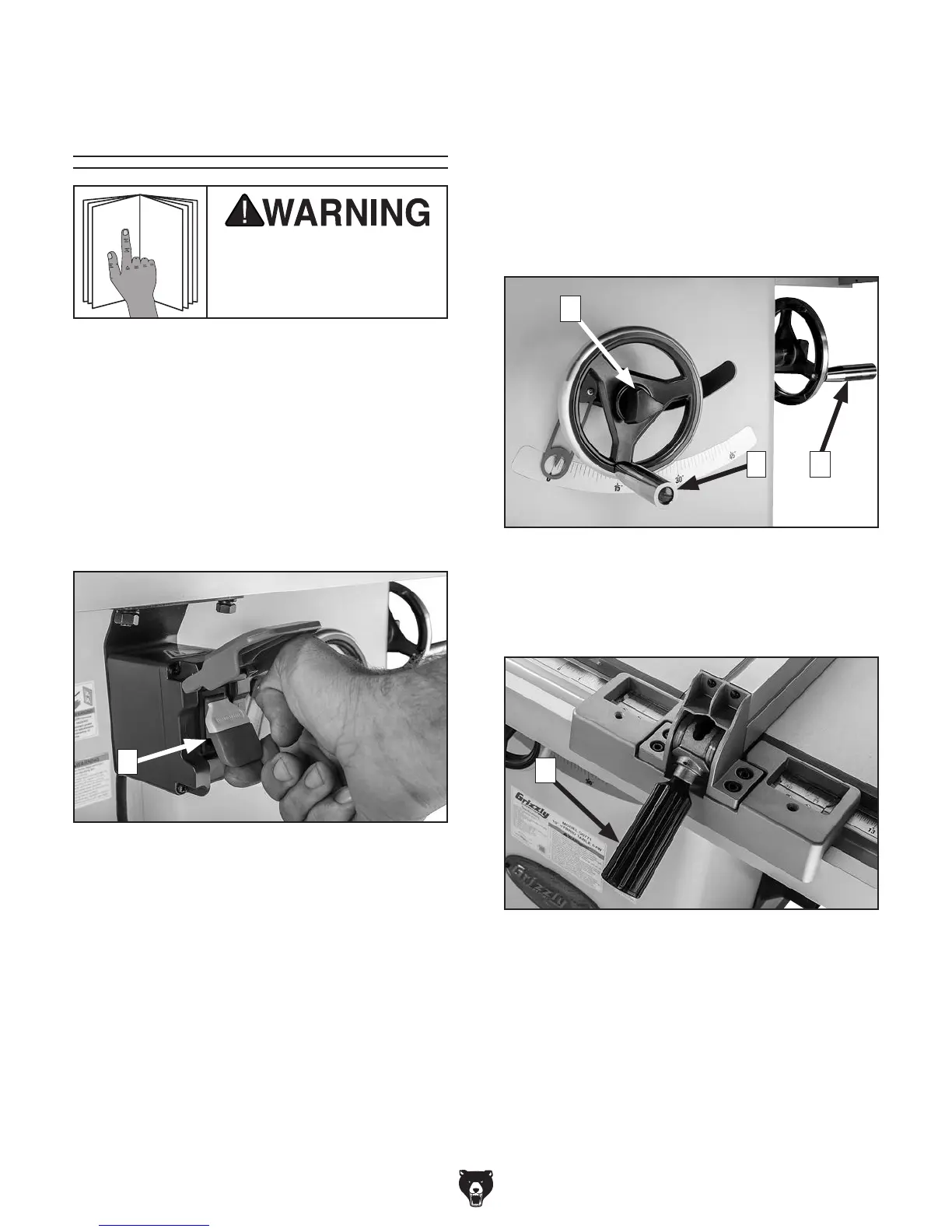

Controls &
Components
Refer to Figures 24 and the following descrip-
tions to become familiar with the basic controls of
this machine.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
A. ON/OFF Switch: Starts and stops the motor.
The switch can be disabled for safety by
removing the key.
Note: Paddle cover must be lifted to access
ON switch.
Figure 2. ON/OFF switch.
A
B. Blade Height Handwheel: Adjusts blade
height from 0"–3
1
4".
C. Blade Tilt Handwheel: Adjusts angle of
blade tilt from 90°–45°.
D. Handwheel Locks: Lock blade height
and angle when tightened (one on each
handwheel).
E. Fence Lock: Locks fence when pushed
down, unlocks fence when pulled up.
Figure 4. Fence lock handle.
E
Figure 3. Blade adjustment handwheels and
locks.
B C
D
