Model G0815 (Mfd. Since 09/18)
-33-
Height Chain & Sprockets
Grease Type ..........................NLGI#2 Equivalent
Frequency ............ Every 160 Hours of Operation
The column leadscrews are synchronized by the
height chain and sprockets located underneath
the planer base (see Figure 43). Use shop rags
and mineral spirits to clean away debris and
grime, then brush on a light coat of multi-purpose
grease to the chain and sprockets.

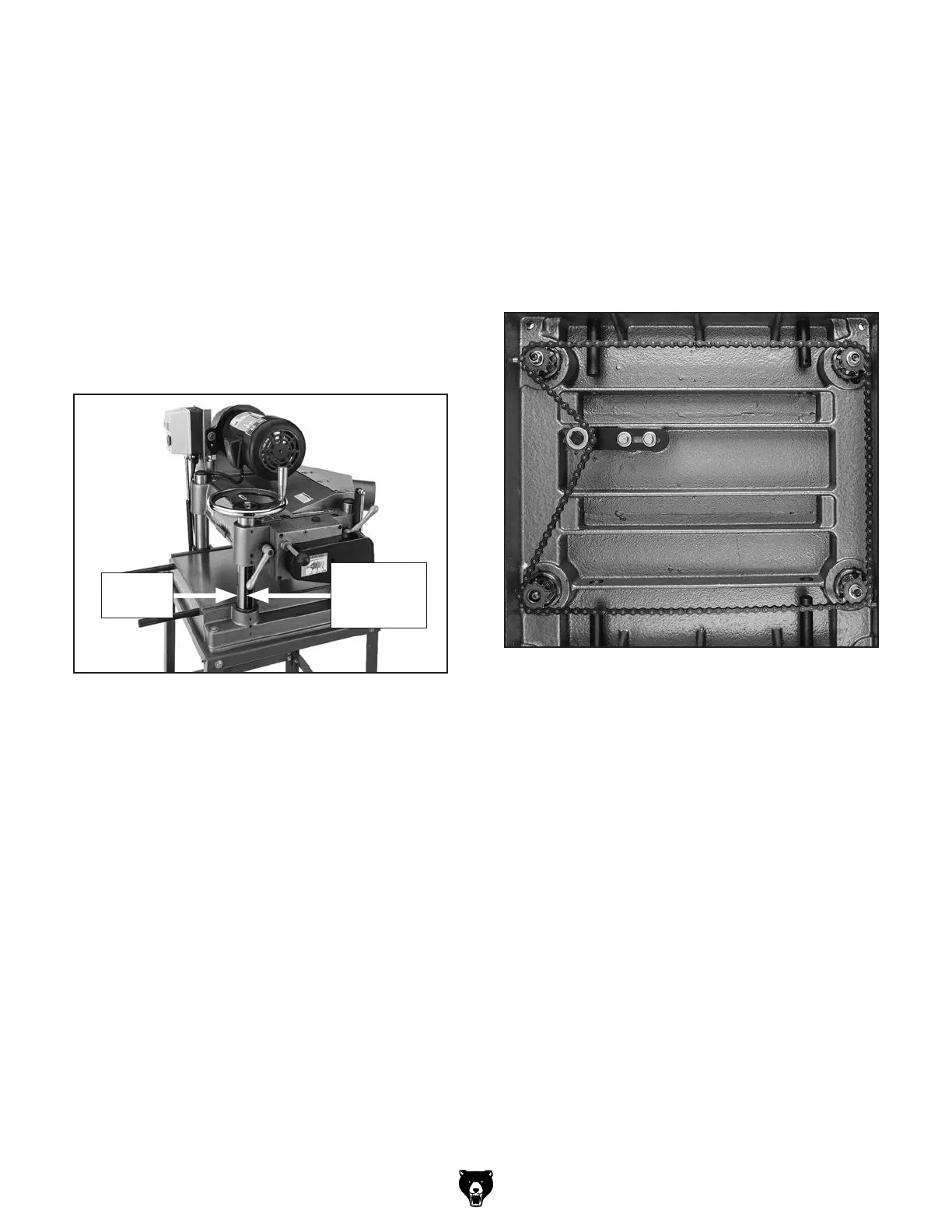

Figure 43. Height chain and sprockets as
viewed from underneath the base.
Columns & Leadscrews
Oil Type ................SB1365 or ISO 68 Equivalent
Oil Amount ............................................Thin Coat
Grease Type ..........................NLGI#2 Equivalent
Frequency .............. Every 40 Hours of Operation
The headstock rides on the columns and is
moved by the rotation of the leadscrews inside
the columns (see Figure 42). Apply a thin coat
of ISO 68 machine oil to the outside surface of
the columns and brush on a light application of
multi-purpose grease to the leadscrew threads.
Move the headstock up and down to distribute the
lubricant.
Figure 42. Location of column dust sleeve.
Column
(1 of 4)
Column
Leadscrew
(1 of 4)
To Next Page
