Grizzly G0815 User Manual

Model G0815 (Mfd. Since 09/18)
-49-
202
202
203
203
205
206
207
207
208
209
209
210V2
211
211
212V2
213
208
215V2
217
218
219
220
221
222
223
224
225
226
227V2
229V2
232
233
234V2
235
235
236
236
201
216V2
214V2
237
238
214V2
237
238

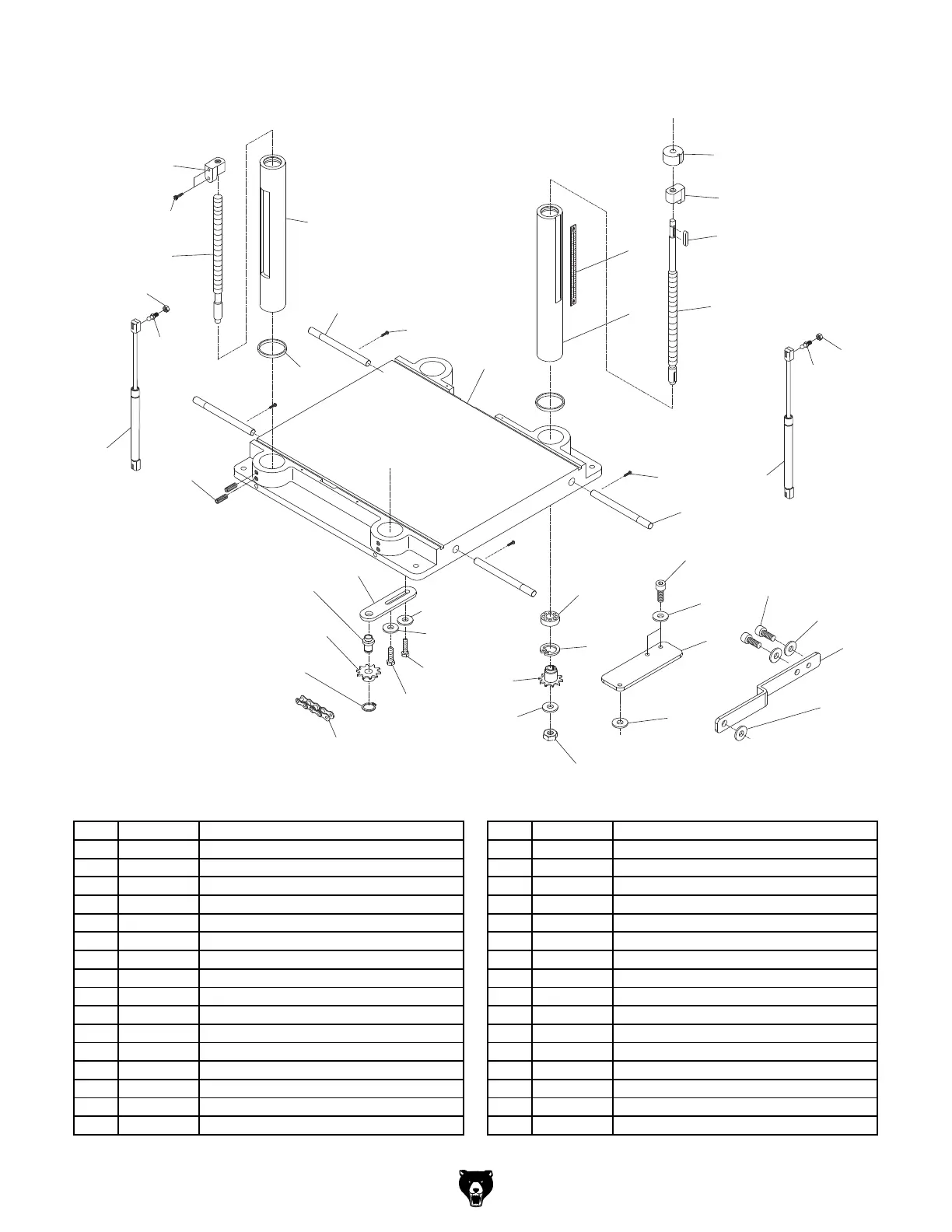

Table & Columns
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0815201 CAP SCREW 1/4-20 X 5/8 219 P0815219 EXT RETAINING RING 15MM
202 P0815202 HEX BOLT 5/16-18 X 3/4 220 P0815220 ELEVATION IDLER SPROCKET 10T
203 P0815203 FLAT WASHER 5/16 221 P0815221 IDLER SHAFT
205 P0815205 HEX NUT 3/8-16 222 P0815222 IDLER BRACKET
206 P0815206 LOCK WASHER 3/8 223 P0815223 TABLE BASE
207 P0815207 SUPPORT ROD 224 P0815224 BALL BEARING 6302ZZ
208 P0815208 PHLP HD SCR 10-24 X 3/8 225 P0815225 INT RETAINING RING 42MM
209 P0815209 LEADSCREW NUT 226 P0815226 ELEVATION SPROCKET 10T
210V2 P0815210V2 ELEVATION LEADSCREW V2.09.18 227V2 P0815227V2 DEPTH SCALE V2.09.18
211 P0815211 CAP SCREW 1/4-20 X 1/2 229V2 P0815229V2 DRIVE COLUMN V2.09.18
212V2 P0815212V2 COLUMN V2.09.18 232 P0815232 LEADSCREW BUSHING
213 P0815213 COLUMN BUSHING 233 P0815233 KEY 4 X 4 X 20
214V2 P0815214V2 GAS SPRING ASSEMBLY V2.09.18 234V2 P0815234V2 ELEVATION DRIVE LEADSCREW V2.09.18
215V2 P0815215V2 GAS SPRING BRACKET (FRONT) V2.09.18 235 P0815235 FLAT WASHER 1/4
216V2 P0815216V2 GAS SPRING BRACKET (REAR) V2.09.18 236 P0815236 FLAT WASHER 8MM
217 P0815217 SET SCREW 3/8-16 X 1/2 237 P0815237 HEX NUT M8-1.25
218 P0815218 HEIGHT CHAIN #410 X 134 238 P0815238 GAS SPRING BALL JOINT M8-1.25 X 14
