Model G0815 (Mfd. Since 09/18)
-5-
Internal Components
Like all machinery there is potential danger when operating this machine. Accidents are fre-
quently caused by lack of familiarity or failure to pay attention. Use this machine with respect
and caution to decrease the risk of operator injury. If normal safety precautions are overlooked
or ignored, serious personal injury may occur.
Workpiece

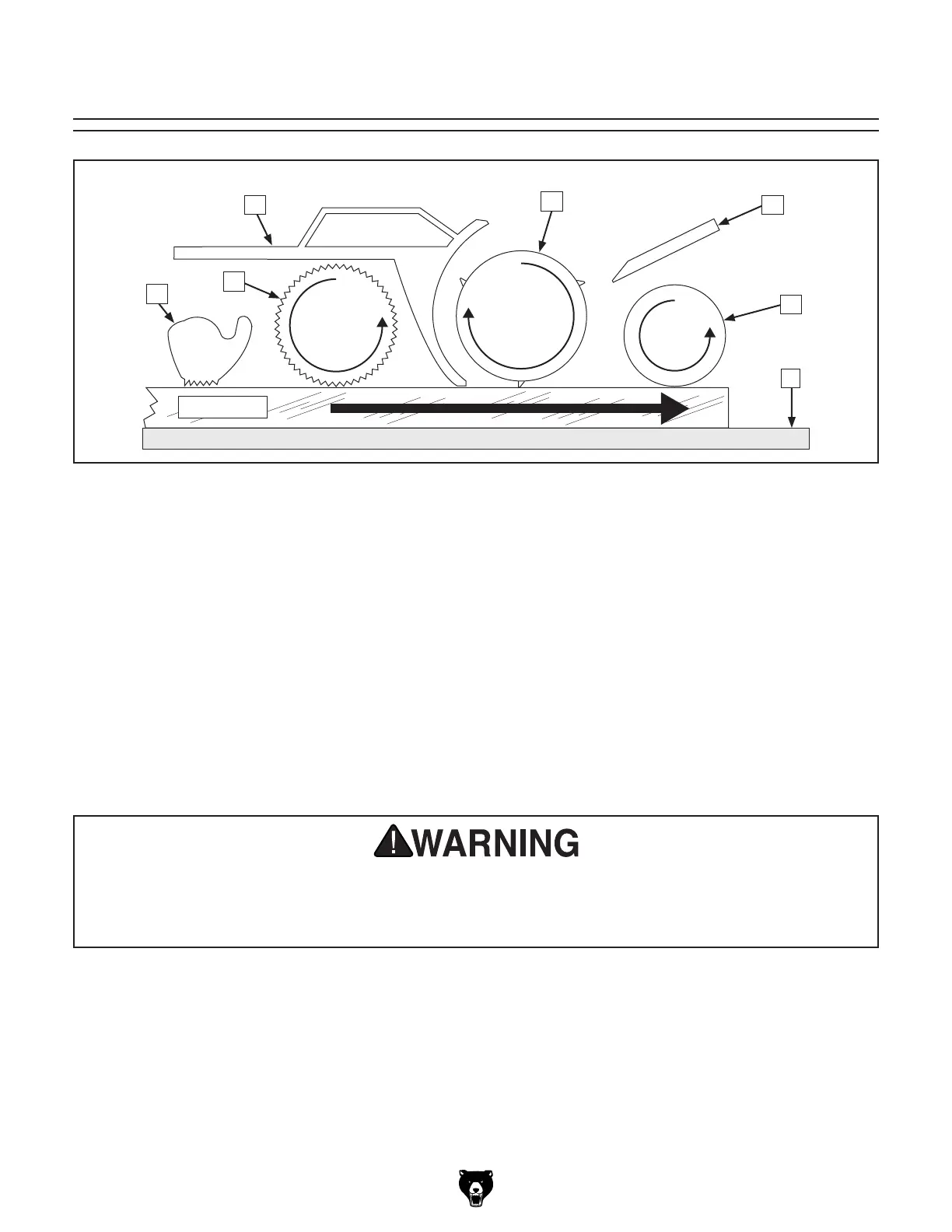

Figure 4. Workpiece path and major planing components (side cutaway view).
A
C
B
D
G
E
F
Front Rear
A. Anti-Kickback Fingers: "Grab" workpiece if
a kickback occurs, reducing the risk of kick-
back related injuries.
B. Serrated Infeed Roller: Pulls the workpiece
toward the cutterhead.
C. Chip Breaker: Breaks off freshly cut chips/
shavings as they're lifted by the cutterhead to
prevent tear-out and divert them toward the
dust hood for improved overall extraction.
D. Cutterhead: Holds the knives that remove
material from the workpiece.
E. Chip Deflector: Directs chips/shavings
into the dust hood as they travel over the
cutterhead, helping to prevent them from
coming back down to the workpiece and
interfering with the quality of the cut.
F. Outfeed Roller: Pulls the workpiece through
the planer.
G. Planer Table: Provides a smooth and level
path for the workpiece as it travels through
the planer.
