Grizzly G0815 User Manual

Model G0815 (Mfd. Since 09/18)
-37-
Tensioning/
Replacing V-Belts
After approximately 16 hours of operation,
V-belts will stretch and seat into pulley
grooves and need to be properly tensioned
to avoid severely reducing life of V-belts.
Three V-belts transfer power from the motor to the
cutterhead, and then to the infeed and outfeed
rollers with the use of the drive chain system. To
ensure efficient transfer of power to these sys-
tems, make sure the V-belts are always properly
tensioned and in good condition.
If the V-belts are worn, cracked, or damaged,
replace them. Always replace the V-belts with a
matched set of three, or belt tension may not be
even among the belts, causing premature belt
failure.
V-belts and pulleys will be hot after opera-
tion. Allow them to cool before handling.
To tension/replace V-belts:
1. DISCONNECT MACHINE FROM POWER!
2. Remove upper and lower V-belt cover from
left side of machine to expose belts, as
shown in Figure 47.

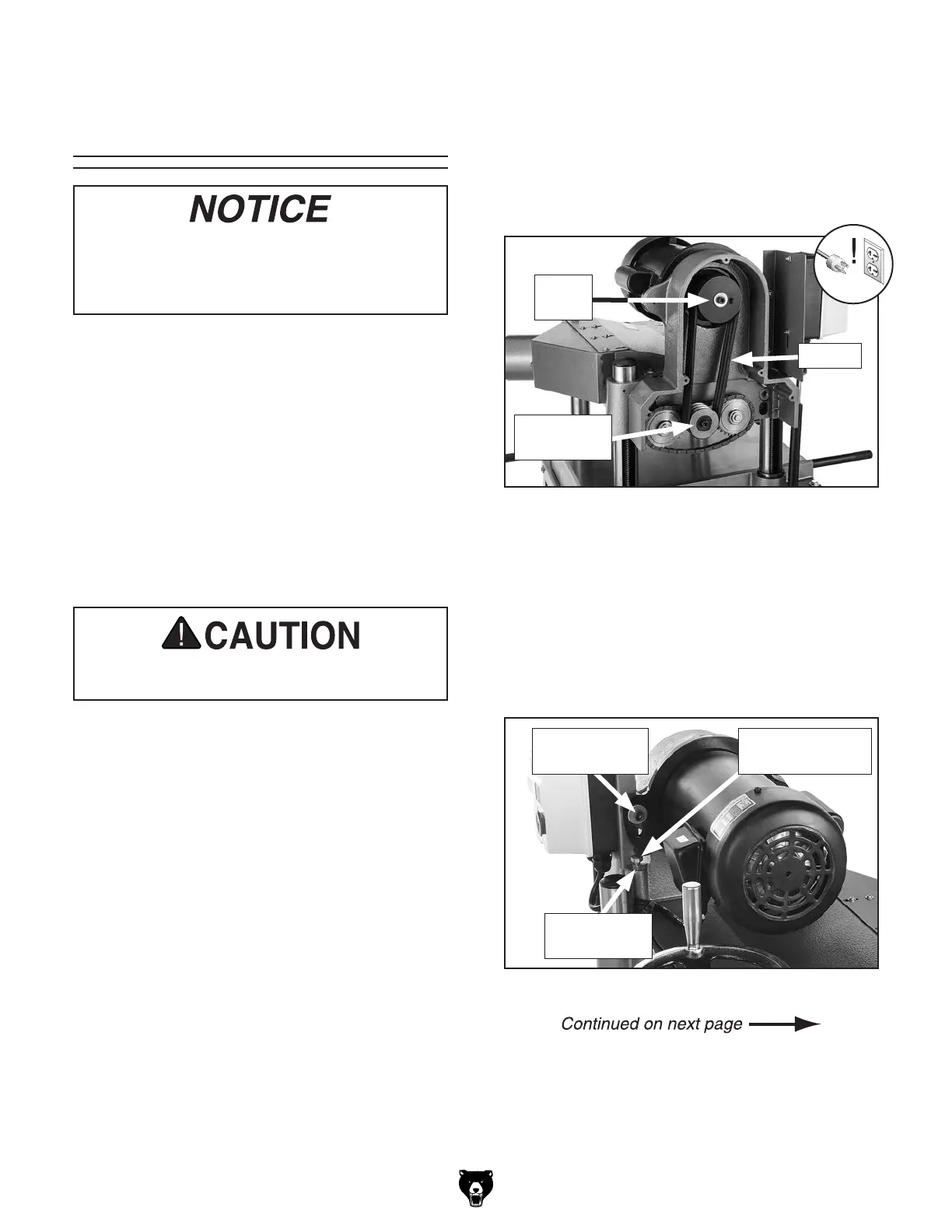

Figure 47. Belt covers removed to expose
V-belts and pulleys.
V-Belts
Motor
Pulley
Cutterhead
Pulley
3. Loosen motor mount screws and belt tension
jam nut shown in Figure 48.
4. If V-belts need to be replaced, rotate belt ten-
sion adjustment bolt (see Figure 48) to lower
motor and release belt tension. Roll belts off
pulleys, then replace with a matched set of 3.
Figure 48. Belt tension controls.
Belt Tension
Jam nut
Belt Tension
Adjustment Bolt
Motor Mount
Screw (1 of 2)
Tools Needed Qty
Phillips Screwdriver #2 ...................................... 1
Hex Wrench 8mm .............................................. 1
Open-End Wrench 14, 17mm ......................1 Ea.
