-20-
Model G0886 (Mfd. Since 01/19)

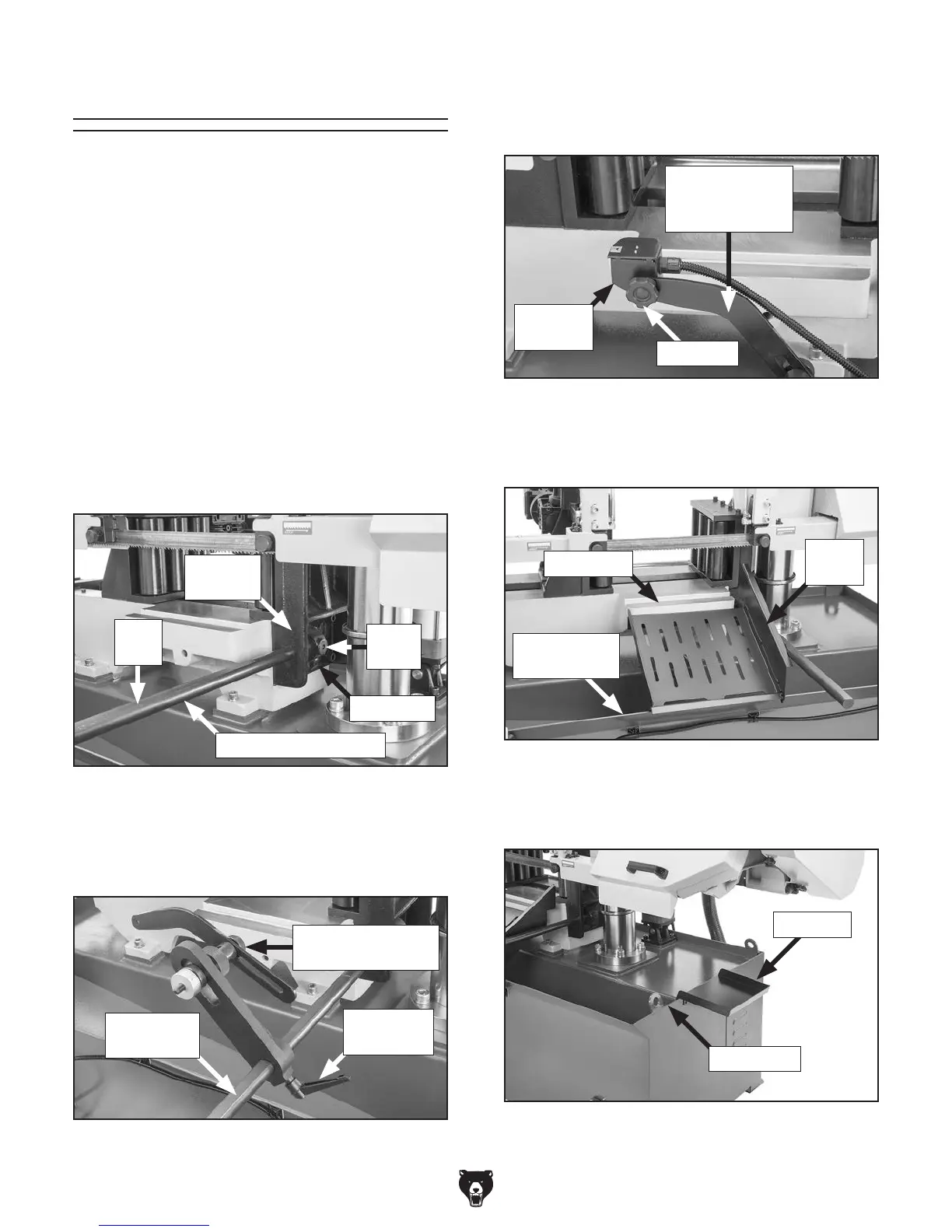

Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup and gather
all
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
With the exception of the proximity sensor, drip
tray, and cutoff chute, the Model G0886 comes
fully assembled from the factory.
To assemble machine:
1. Slide proximity sensor bar into hole in fixed
vise jaw with flat edge on bar upward, as
shown in Figure 14, then tighten set screws.
Figure 14. Proximity sensor bar attached.
Fixed
Vise Jaw
Flat
Edge
2. Slide proximity sensor bracket assembly onto
proximity sensor bar, as shown in Figure 15,
then tighten adjustable handle.
Figure 15. Proximity sensor bracket attached.
Proximity
Sensor Bar
Adjustable
Handle
Proximity Sensor
Bracket Assembly
3. Attach proximity sensor to proximity sensor
bracket assembly with pre-installed knob
bolt, as shown in Figure 16.
Figure 16. Proximity sensor attached.
Knob Bolt
4. Position cutoff chute between vise table and
angled base flange, as shown in Figure 17.
5. Position drip tray on base edge, as shown in
Figure 18.
Figure 17. Cutoff chute positioned.
Figure 18. Drip tray positioned.
Angled Base
Flange
Vise Table
Cutoff
Chute
Base Edge
Drip Tray
Set
Screw
Proximity
Sensor
Proximity Sensor Bar
Set Screw
Proximity
Sensor Bracket
Assembly
