Grizzly G0886 User Manual

-32-
Model G0886 (Mfd. Since 01/19)
3. Loosen upper motor mount hex bolts (see
Figure 38), allowing motor to pivot and V-belt
to slacken.
4. Move V-belt to required pulley combination
(see Figure 36).
5. Use 2x4 to leverage motor and tension V-belt,
then tighten hex bolts loosened in Step 3.
6. Close and secure pulley cover with knob
bolts removed in Step 2.

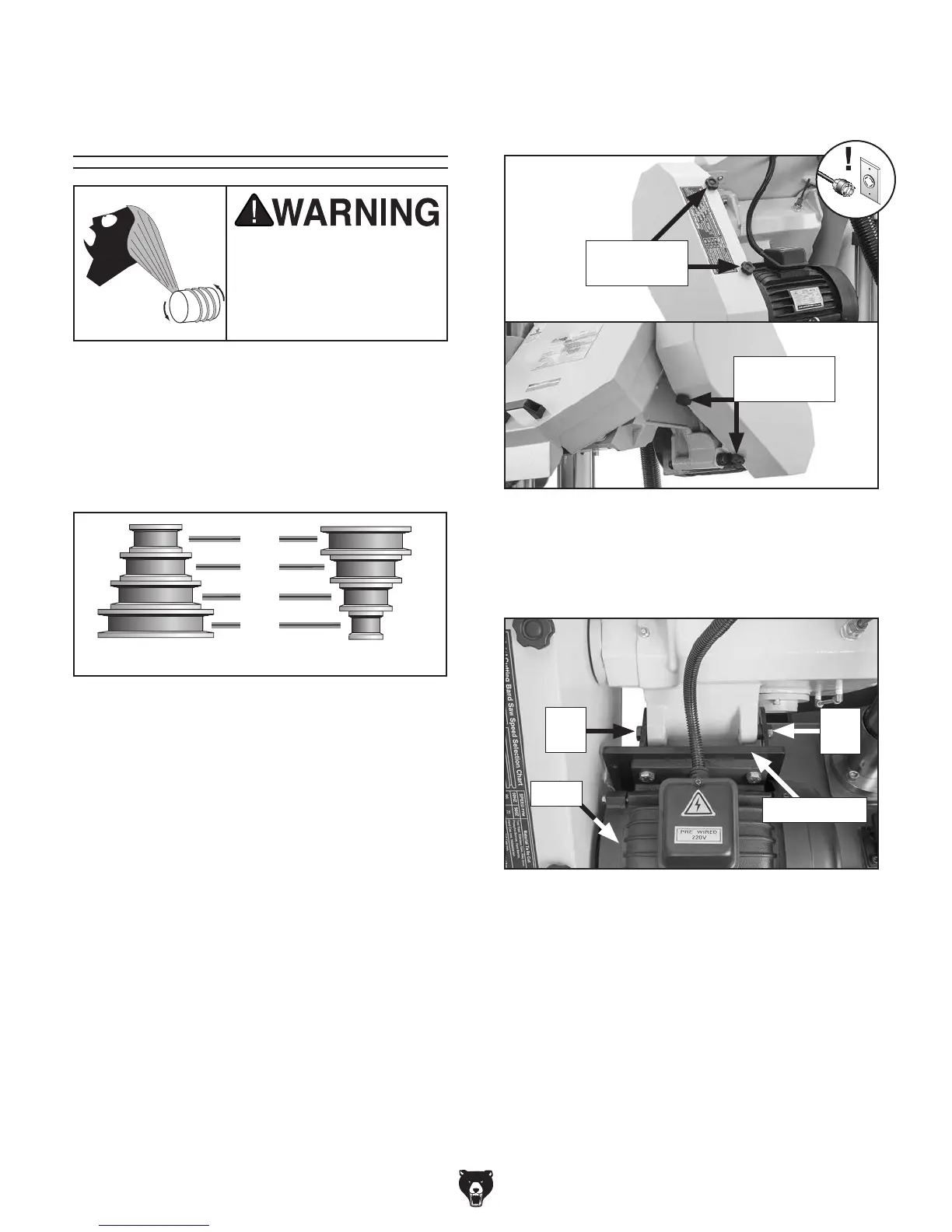

Figure 36. V-belt positions in FPM.
92
161
236
338
MotorDrive Wheel
Figure 38. Location of motor mount hex bolts.
Changing Blade
Speed
Entanglement Hazard!
You MUST install the pul-
ley cover before operat-
ing or severe injury may
occur.
The Model G0886 has four speed settings—92,
161, 236, and 338 feet per minute (FPM). These
different speed settings are changed by moving
belt position on pulleys (see Figure 36). Refer to
the chart on Page 33 for cutting speed recom-
mendations by material type.
Figure 37. Location of pulley cover knob bolts.
Upper Knob
Bolts
Lower Knob
Bolts
Hex
Bolt
Hex
Bolt
Motor Mount
Changing Blade Speed
Blade Speed
During operation, pay attention to the chips being
produced from the cut and compare them to the
Chip Inspection Chart on Page 34 to properly
set the blade speed.
Item(s) Needed Qty
Open-End or Socket Wrench 19mm ................. 1
Scrap 2x4 12" .................................................... 1
To change blade speeds:
1. DISCONNECT MACHINE FROM POWER!
2. Remove (4) knob bolts (see Figure 37) that
secure pulley cover to frame. Support pulley
cover as you remove knob bolts.
Motor
