-24-
Model G0886 (Mfd. Since 01/19)
25. Trigger proximity sensor with a piece of metal
stock to start cutting cycle again.
26. Press Emergency Stop button (C) to com-
pletely to stop machine.
27. WITHOUT resetting Emergency Stop but-
ton (C), attempt to trigger proximity sensor
with a piece of metal stock to start cutting
cycle again.
— If cutting cycle does not start, Emergency
Stop button safety feature is working
correctly. Congratulations! Test Run is
complete.
— If cutting cycle does start (with Emergency
Stop button pushed in), immediately dis-
connect power. The Emergency Stop but-
ton safety feature is not working correctly.
This safety feature must work properly
before proceeding with regular operations.
Call Tech Support for help.
Recommended
Adjustments
The adjustments listed below have been per-
formed at the factory. However, because of the
many variables involved with shipping, we recom-
mend that you at least verify the following adjust-
ments to ensure accurate cutting results.
Step-by-step instructions on verifying these adjust-
ments can be found in SECTION 7: SERVICE.
Factory adjustments that should be verified:
1. Blade Tracking (Page 54).
2. Blade Guides (Page 56).
3. Squaring Blade to Table (Page 58).
Disabling & Locking
Switch
The master power switch can be disabled and
locked by inserting a padlock through it, as
shown. Locking the switch in this manner can
prevent unauthorized operation of the machine,
which is especially important if the machine is not
stored inside an access-restricted building.
IMPORTANT: Locking the switch with a padlock
only restricts its function. It is not a substitute
for disconnecting power from the machine when
adjusting or servicing.
1
0

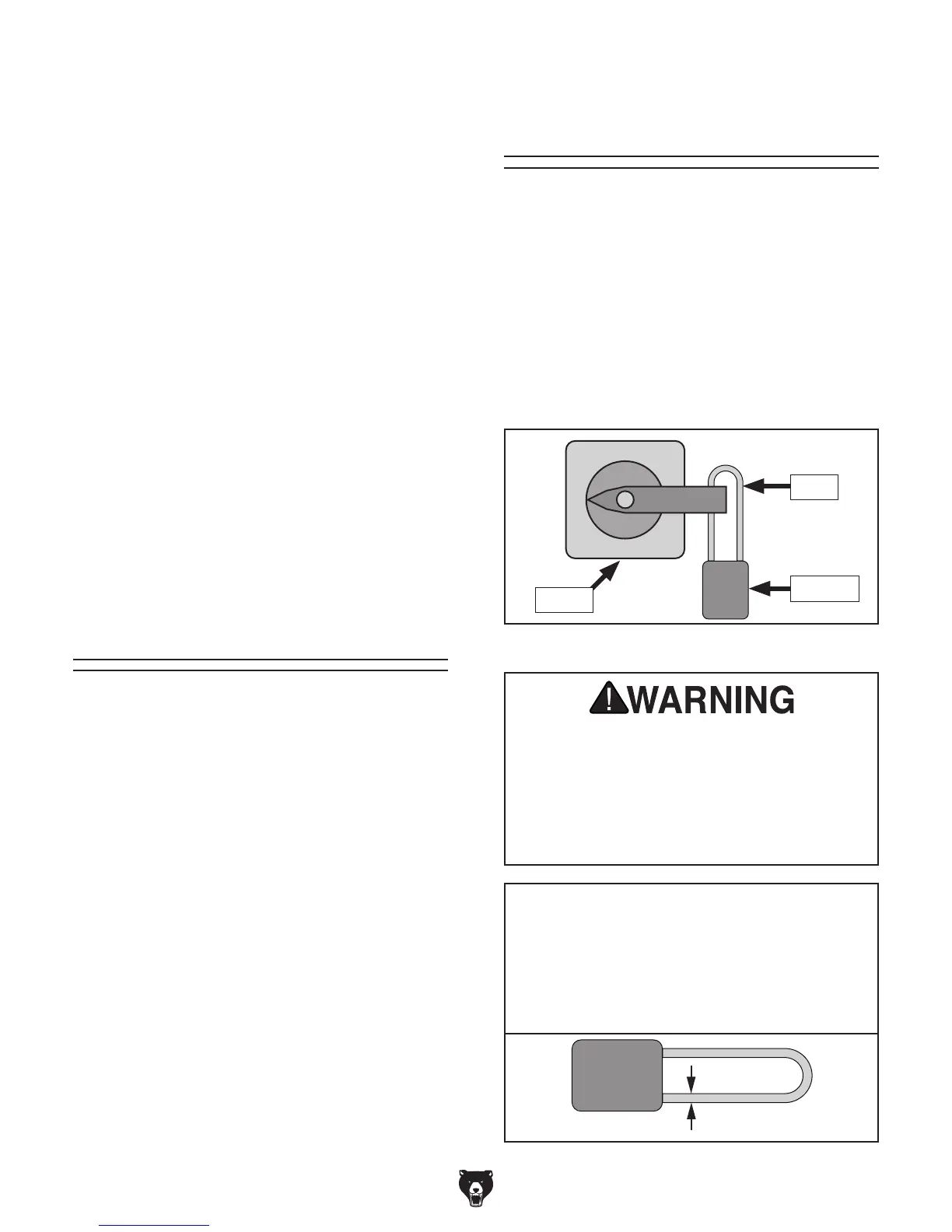

Figure 23. Switch disabled by a padlock.
Figure 24. Maximum lock shaft requirements.
Switch
Padlock
Shaft
0.20"
NOTICE
The padlock shaft diameter is important to
the disabling function of the switch. With
any padlock used to lock the switch, test
the switch after installation to ensure that it
is properly disabled.
Children or untrained people can be
seriously injured by this machine. This
risk increases with unsupervised operation.
To help prevent unsupervised operation,
disable and lock the switch before leaving
machine unattended! Place key in a well-
hidden or secure location.
