Grizzly G0886 User Manual

Model G0886 (Mfd. Since 01/19)
-49-
To change coolant:
1. DISCONNECT MACHINE FROM POWER!
2. Remove chip collection tray (see Figure 74)
from machine base. Clean chip collection
tray.
3. Remove drain plug (see Figure 74), empty
tank contents into drain pan, and dispose of
coolant following federal, state, and cutting
fluid manufacturer requirements.
Changing Coolant
6. Re-wrap drain plug threads with Teflon tape,
then re-install drain plug.
7. Mix 6.5 gallons of coolant according to cutting
fluid manufacturer's specifications, then refill
tank with coolant.
8. Replace chip collection tray.
Item(s) Needed Qty
Safety Wear ....................................See Hazards
Coolant ..............................................6.5 Gallons
Open-End or Socket Wrench 17mm .................. 1
Hex Wrench 4mm .............................................. 1
10-Gallon Drain Pan .......................................... 1
Clean Jug or Bucket .......................................... 1
Water Hose w/Spray Gun .................................. 1
Antibacterial Soap ............................. As Needed
Disposable Shop Rags ...................... As Needed
Teflon Thread Tape ........................... As Needed
4. Remove coolant pump access panel on left
side of machine, as shown in Figure 75.
5. Thoroughly clean reservoir and pump filter
with hot, soapy water, then rinse with clean
water. You may need to remove coolant
pump bracket screws to access pump filter.

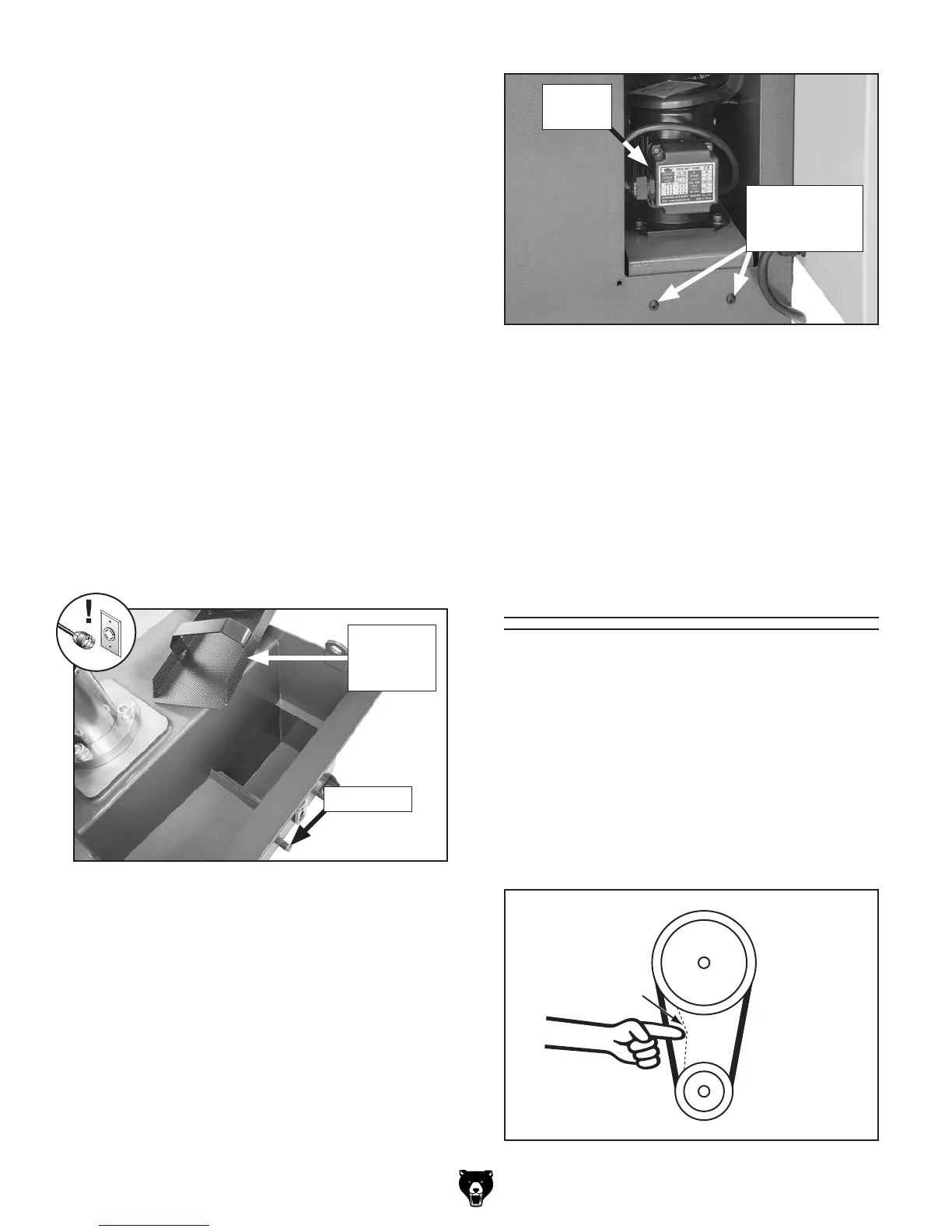

Figure 75. Coolant pump access panel removed.
Figure 74. Coolant drain plug location.
Chip
Collection
Tray
Drain Plug
Changing Coolant
Inspect V-belt regularly for tension and wear.
Refer to Figure 76 for proper belt tension. Belt
deflection should be approximately
1
⁄4" under
moderate pressure. The replacement V-belt can
be found in the back of this manual in the parts
breakdown.
To replace the V-belt, refer to Changing Blade
Speed on Page 32 to loosen it. Remove the old
belt from the pulleys, then install a new V-belt and
ensure it is properly tensioned.
Inspecting V-Belt
Pulley
Deflection
Pulley
Figure 76. Checking belt tension.
1
⁄4"
Inspecting V-Belt
Coolant
Pump Bracket
Screws
Coolant
Pump
