Model G0886 (Mfd. Since 01/19)
-55-
Adjusting Blade
Brush
The Model G0886 has a blade brush to help keep
metal chips off the blade wheels. It will wear over
time and require re-adjustment when it no longer
makes proper contact with the blade. Eventually
the brush will require replacement. This is con-
sidered a normal wear item and is not covered by
warranty.
Item(s) Needed Qty
Hex Wrench 4mm .............................................. 1
To adjust blade brush:
1. DISCONNECT MACHINE FROM POWER!
2. Open drive wheel cover.
3. Loosen button head cap screws on blade
brush bracket (see Figure 80).

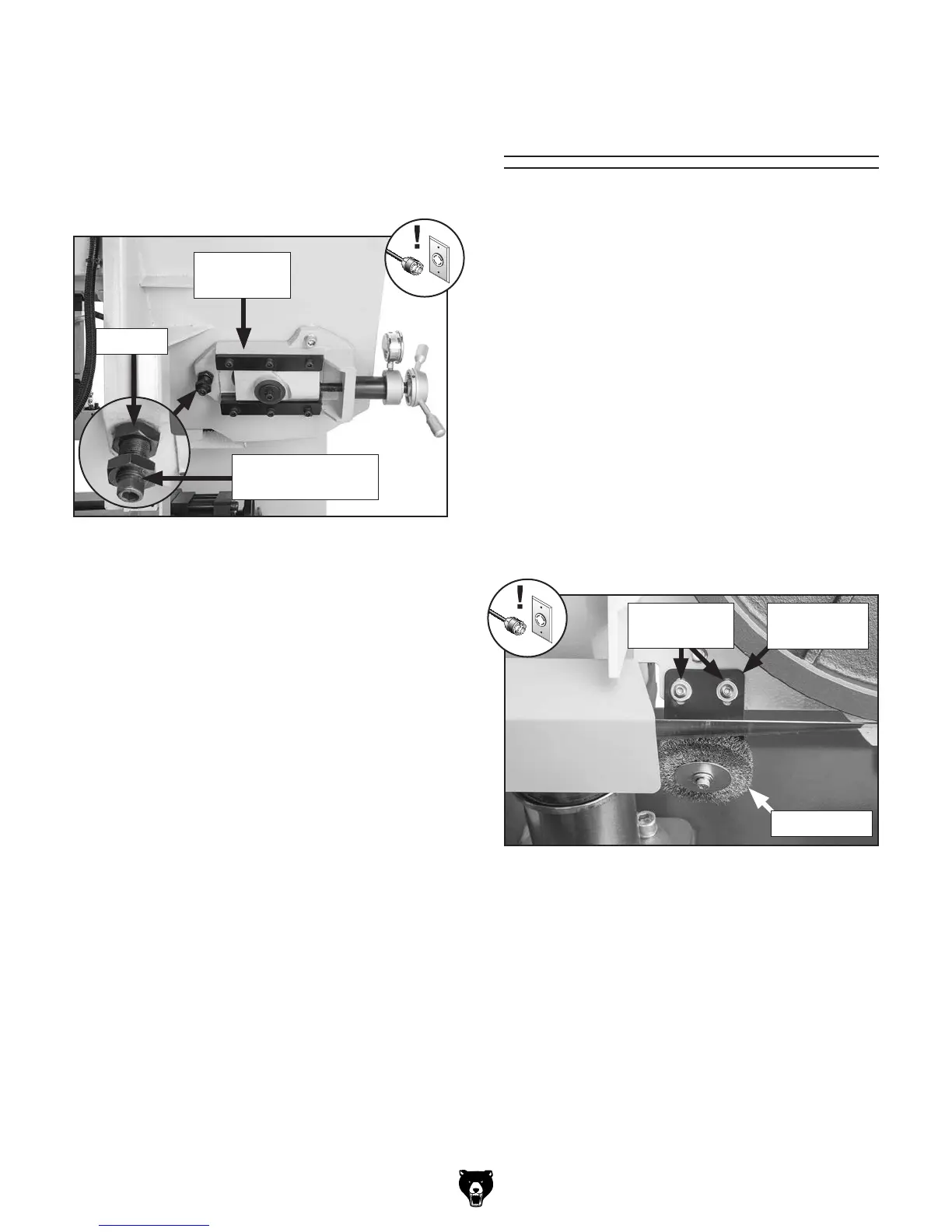

Figure 80. Blade brush and components.
Blade Brush
Blade Brush
Bracket
Button Head
Cap Screws
4. Adjust blade brush bracket so blade extends
approximately
1
⁄8" into bristles of brush, then
tighten button head cap screws. Holes in
bracket are slotted for easy adjustment.
Figure 79. Blade tracking controls on idler
wheel.
5. Loosen jam nut on tracking adjustment screw
(see Figure 79), then tighten or loosen track-
ing adjustment screw to move idler wheel
assembly forward or backward.
Tip: Make small, incremental adjustments
with tracking adjustment screw.
Jam Nut
Tracking
Adjustment Screw
Idler Wheel
Assembly
6. Repeat Steps 3–5 as needed until back of
blade lightly touches shoulder of idler wheel.
7. Tighten jam nut to secure setting.
Adjusting Blade Brush
