-4-
Model G0938 (Mfd. Since 03/21)
Controls &
Components
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Refer to the following figures and descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and minimize your risk of
injury when operating this machine.
B. LED Work Light ON/OFF Switch: Turns
LED work light ON and OFF.
C. Variable-Speed Knob: Adjusts blade speed
from 450 to 1500 SPM.
D.
ON/OFF Switch: Starts and stops motor.
E. LED Work Light: Used to illuminate
workpiece.
F. Blade Holder: Holds blade in place.
G. Blade Holder Lock Knob: Locks blade in
place, or unlocks blade for removal.
H. Air Nozzle: Adjustable nozzle blows debris
away from line of cut during operations.
I. Hold-Down Shoe: Holds down workpiece as
blade moves during operation. Adjust hold-
down shoe to thickness of workpiece.
J. Table: Supports workpiece.
K. Table Tilt Scale: Displays degree of table
angle from 0° to 45° when the table is tilted
for bevel cutting.
L. Blade Storage Tray: Provides convenient
access to extra blades or wrenches.
M. Table Insert: Removable plate when
changing blades.
N. Blade Tension Lever: Increases/decreases
blade tension. Turn clockwise to increase
blade tension, and counterclockwise to
decrease blade tension.
O. Positive Stop: Quickly return table to 0° from
a left-tilt setting. Positive stop is adjustable,
allowing for calibration, or if desired, minor
deviations from 0°.
P. Dust Port: Connects vacuum hose or dust
collection system.
Q. Table Lock Knob: Locks table at desired
angle.
R. Table Tilt Knob: Adjusts table to desired
angle for bevel cutting.
Main Controls & Components

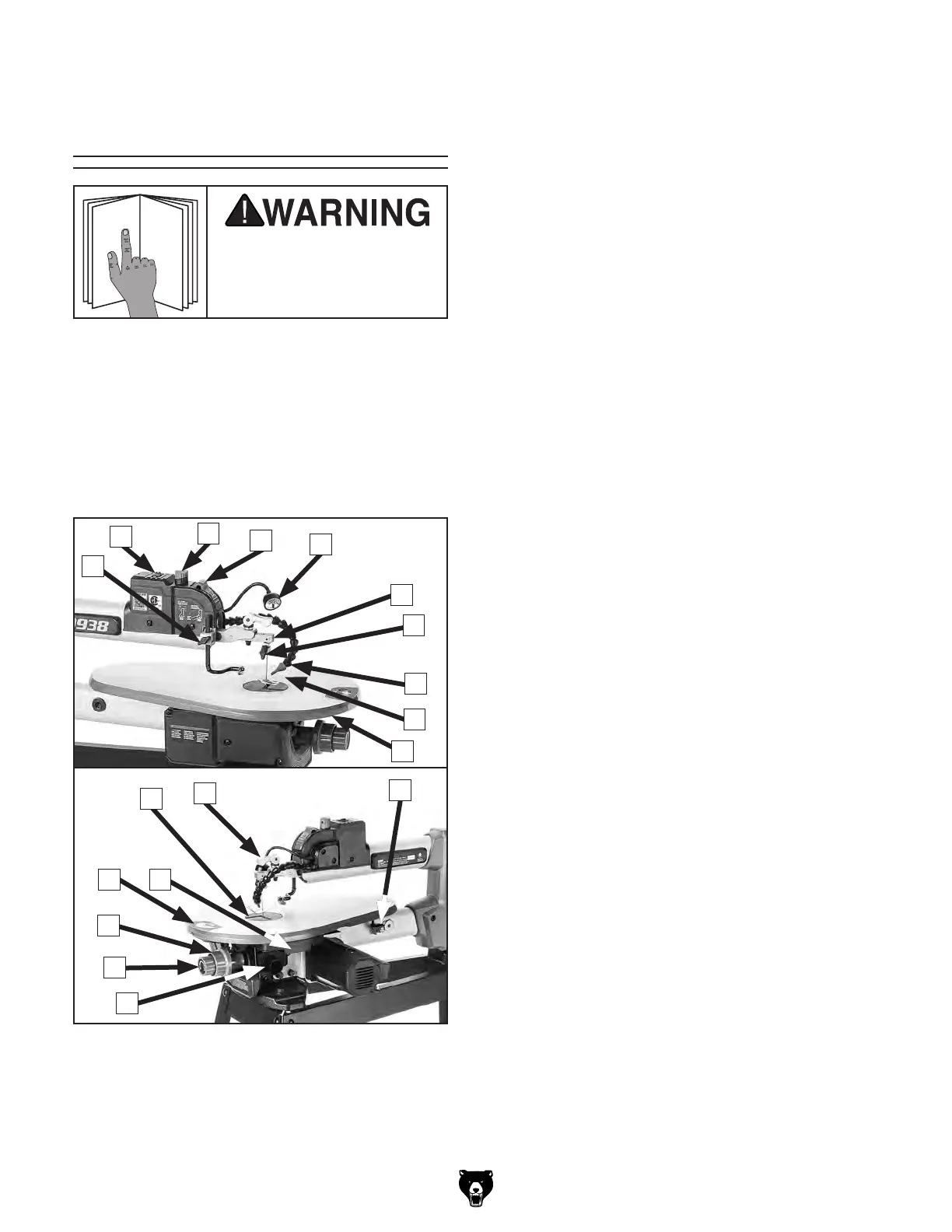

Figure 1. Main controls & components.
B
D
I
C
E
F
A
G
H
H
M
R
N
K
Q
P
L
O
J
A. Hold-Down Shoe Lock Knob: Locks hold-
down shoe in position.
