Although some figures might not exactly
represent your machine, this process is the
same on the G0945, G0946, and G0947.
The knives/indexable inserts are very sharp
and can easily cut your hands. ALWAYS
use caution when making adjustments near
these parts to reduce risk of personal injury.
Straightedge
Outfeed Table

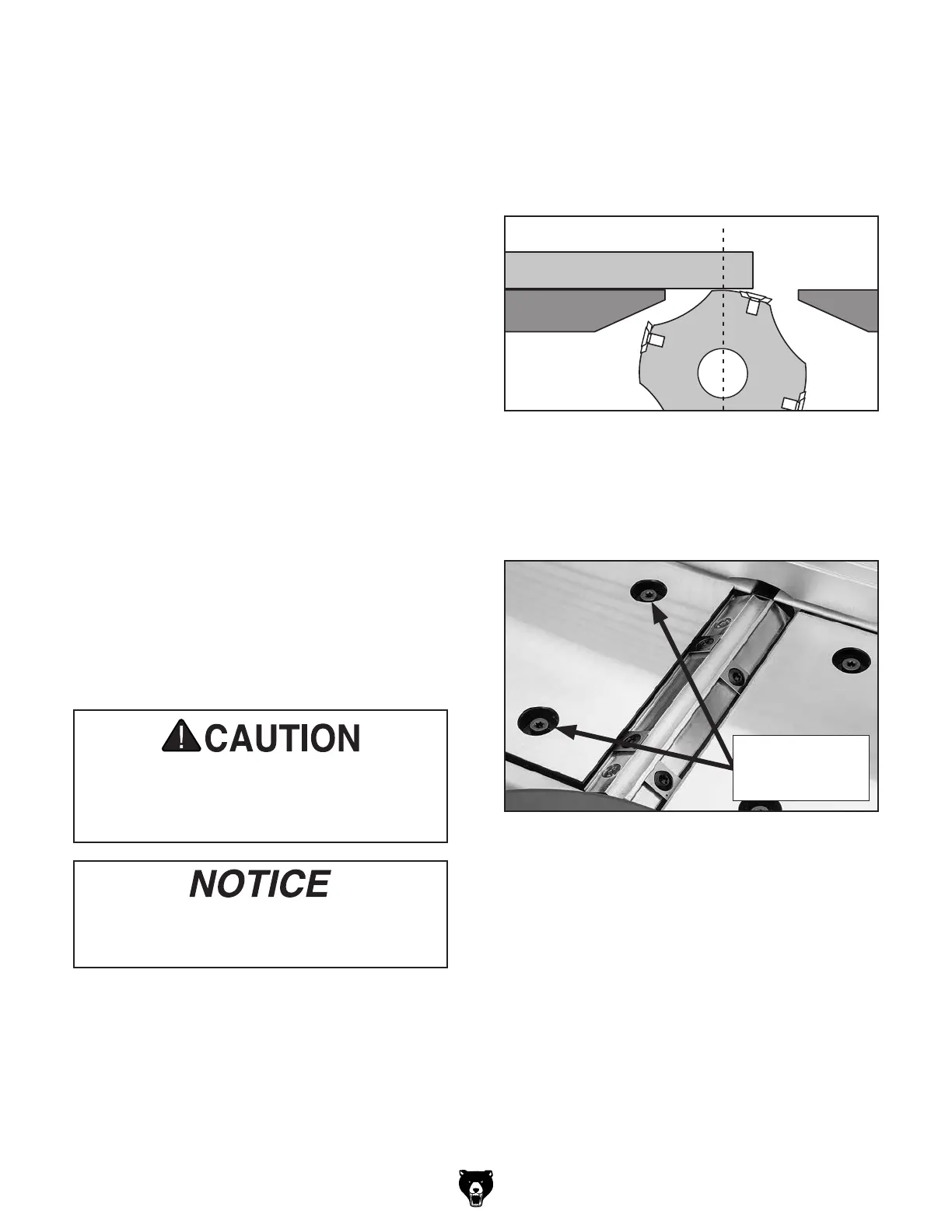

Figure 45. Example of straightedge just touching
cutterhead body.
Figure 46. Example of outfeed table leveling
adjuster location.
Model G0945/G0946/G0947 (Mfd. Since 06/21)
-41-
Adjusting Table Parallelism
For safe and proper cutting results, the tables
must be parallel to the cutterhead. Adjusting them
to be parallel is a task of precision and patience,
and may take up to one hour to complete. This is
considered a permanent adjustment, and should
not need to be repeated. Due to the complex
nature of this task, we recommend that you
double check the current table positions to make
sure that they really need to be adjusted before
starting.
Each table has four leveling adjusters that allow
the table to be adjusted parallel. Each leveling
adjuster is locked in place by a cap screw and flat
washer.
The correct order for adjusting table parallel-
ism is to first adjust outfeed table parallel with
cutterhead, then adjust infeed table parallel with
outfeed table.
When setting outfeed table, all measurements
MUST be made from the cutterhead body—not
the knives/inserts, or the results may be skewed.
IMPORTANT: The following steps are intended to
be performed directly after the steps involved in
Checking Outfeed Table on Page 39. DO NOT
continue until you have performed those steps.
To adjust table parallelism:
1.
Place straightedge on outfeed table so it
hangs over cutterhead, then rotate cutterhead
until cutterhead body is at the highest point of
rotation (see Figure 45).
2.
Access outfeed table leveling adjusters by
removing (4) cap screws and flat washers
from table openings (see Figure 46).
Cap Screws and
Flat Washers
(2 of 4)
To Next Page
