Grizzly G0945 User Manual

Black Lines Represent
Straightedge Positions
From Overhead View

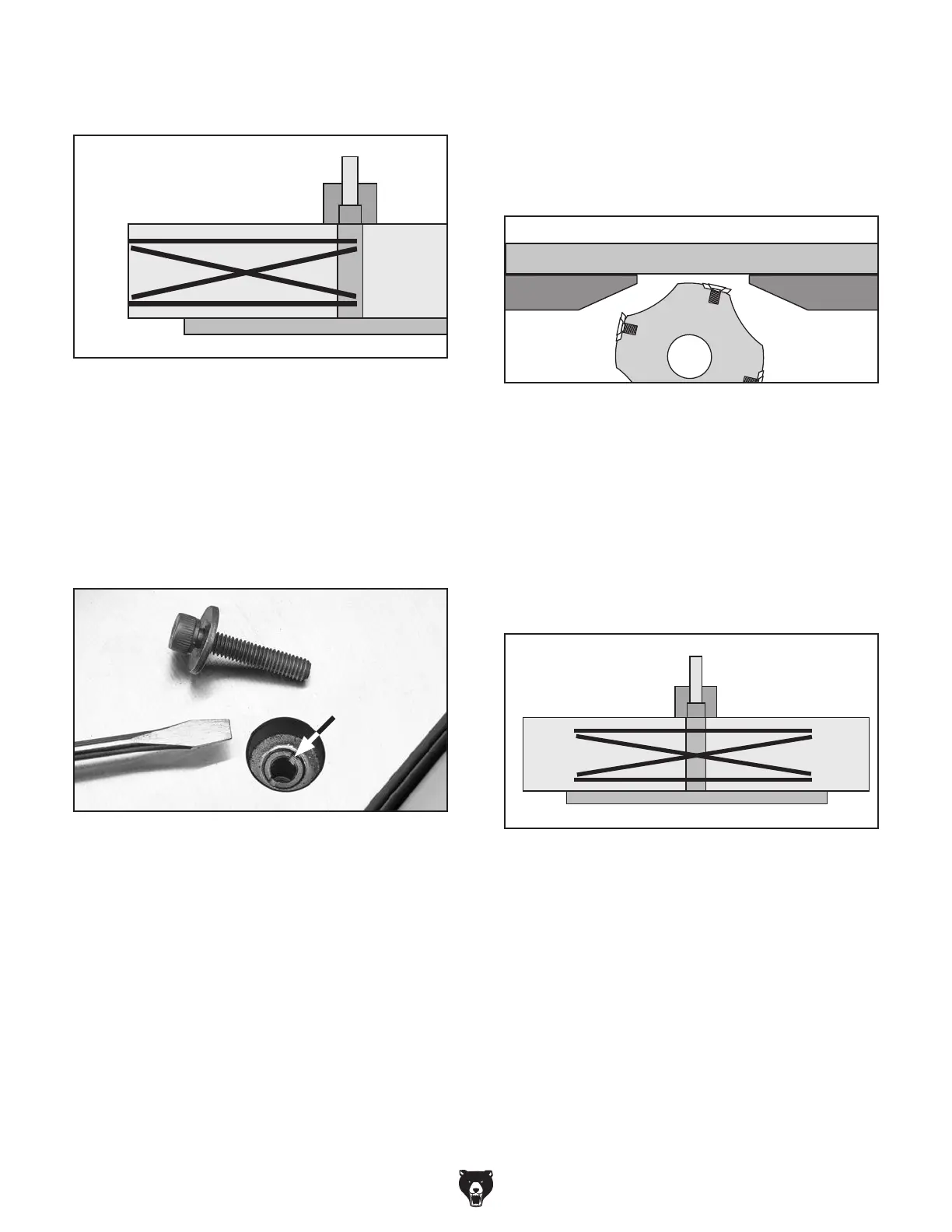

Figure 47. Straightedge positions for checking
outfeed table parallelism.
Figure 48. Leveling adjuster location.
Straightedge
Outfeed Table Infeed Table
Figure 49. Example of infeed and outfeed table
height set evenly.
Black Lines Represent
Straightedge Positions
from Overhead View
Figure 50. Example of infeed and outfeed table
height set evenly.
-42-
Model G0945/G0946/G0947 (Mfd. Since 06/21)
3. Place straightedge in one of the positions
shown in Figure 47.
6.
Place straightedge halfway across infeed and
outfeed tables, and adjust infeed table height
even with outfeed table (see Figure 49).
Note: Infeed table depth-of-cut scale should
be set at "0".
7.
Access infeed table leveling adjusters by
removing (4) cap screws and flat washers
from table openings.
8.
Place straightedge in one of the positions
shown in Figure 50, and rotate leveling
adjuster(s) under straightedge until straight-
edge lies flat across both tables.
9.
Repeat Step 8 with each remaining straight-
edge position as many times as necessary
until infeed table is parallel with outfeed table.
10.
Install cap screws and flat washers removed
in Steps 2 & 7 in infeed and outfeed table
openings.
11.
Install fence (if removed) and cutterhead
guard, then verify proper operation.
12.
G0947 Only: Proceed to Checking/Adjusting
Extension Parallelism on Page 43.
4.
Use a flat head screwdriver to rotate leveling
adjuster(s) (see Figure 48) under straight-
edge until straightedge touches cutterhead
body while lying flat across outfeed table.
Note: Rotate leveling adjusters clockwise to
lift table, and counterclockwise to lower table.
5.
Repeat Step 4 with each remaining straight-
edge position as many times as necessary
until outfeed table is parallel with cutterhead.
