-20-
Model G7945/G7946 (Mfd. Since 09/17)
7. With help of an assistant, place drill press on
base plate.
8. Position drill press close to front of mobile
base, so mobile base will not become a trip-
ping hazard.
9. Mount drill press to base plate with lag bolts
and flat washers, as shown in Figure 13, or
with through bolts, flat washers, and hex nuts.

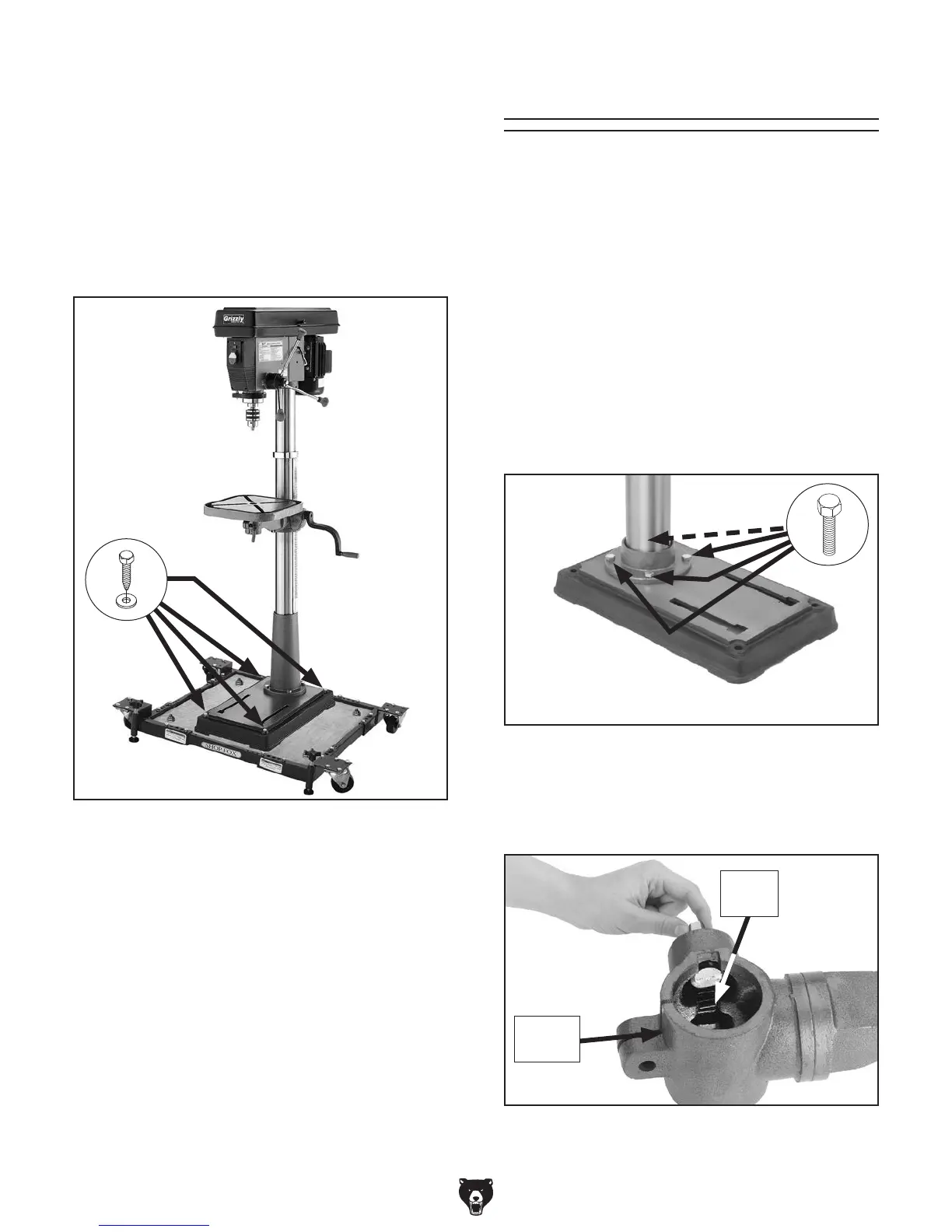

Figure 13. Drill press bolted to mobile base,
using lag bolts and flat washers.
x 4
3. Check to make sure the pinion gear is fully
inserted into the hole on the side of the table
bracket shown in Figure 15.
To assemble the machine:
1. Place the column on the base and align the
mounting holes.
2. Secure the column to the base with the four
hex bolts, as shown in Figure 14.
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
Figure 15. Pinion gear position.
Table
Bracket
Pinion
Gear
Figure 14. Column secured to base.
x 4
