Grizzly G7948 - Assembly Instructions

Model G7947/G7948 (Mfd. Since 01/21)
-21-
The column must be secured on the base to prop-
erly assemble your drill press.
To assemble the machine:
1.
Place column on base and align mounting
holes.
2.
Secure column to base with (4) hex bolts, as
shown in Figure 14.
3.
Place pinion in table support, as shown in
Figure 15, so pinion and gear teeth mesh
together.

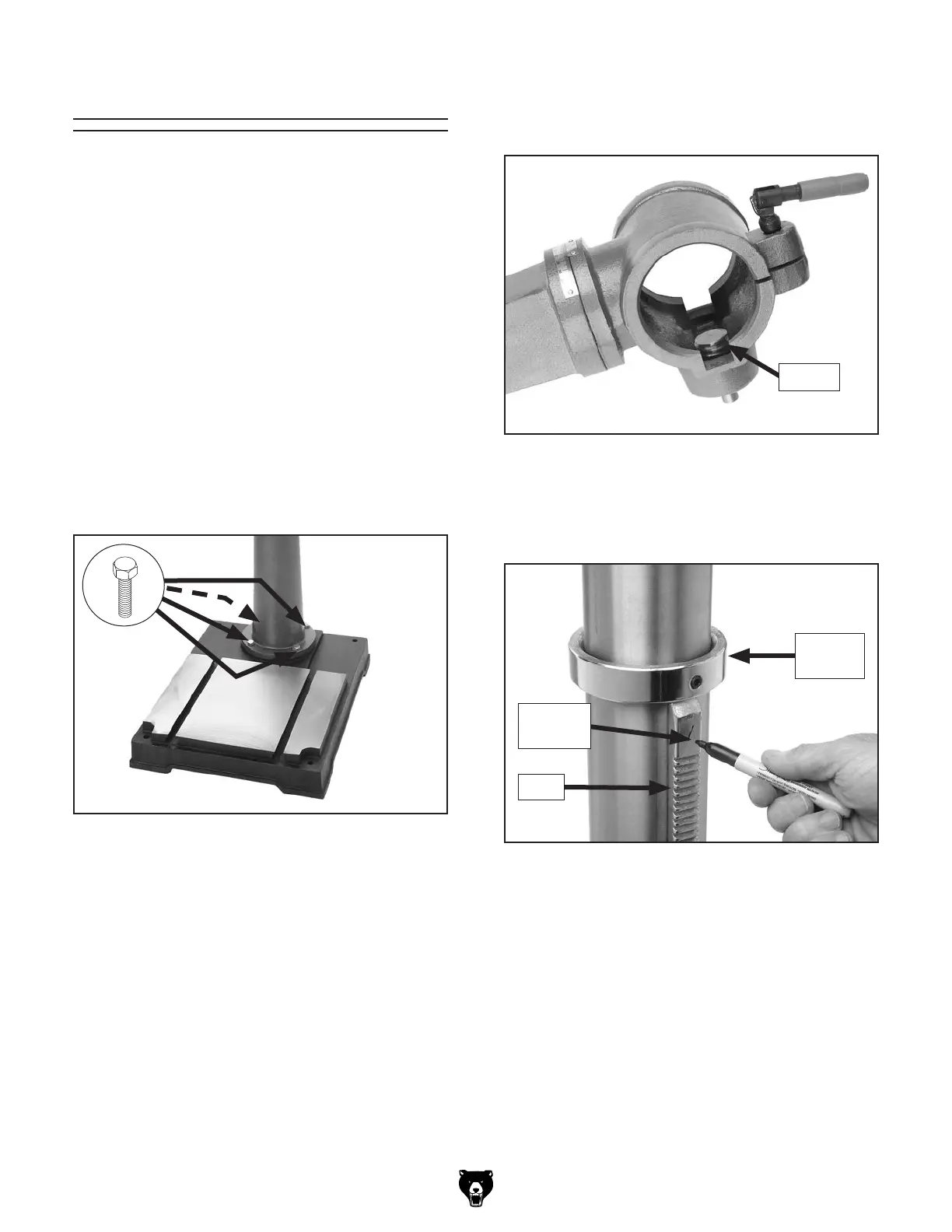

Figure 14. Column secured to base.
Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup and gather
all
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
Figure 15. Pinion correctly installed in table
support.
Pinion
4. Mark top of rack, as shown in Figure 16, to
keep track of which end is up.
Figure 16. Marking top of rack to show which
end is up.
Column
Ring
Marking
Location
Rack
x 4
5.
Remove column ring by loosening set screw,
and remove rack.
