GROOMING MOWERS - SGM Series - Models SGM 48-60-72-84
23
The rear wheel arms usually don't need to be moved, and should remain mounted in their original
position.
(*) NOTE: SGM48 front wheel arms are fixed and cannot be changed.

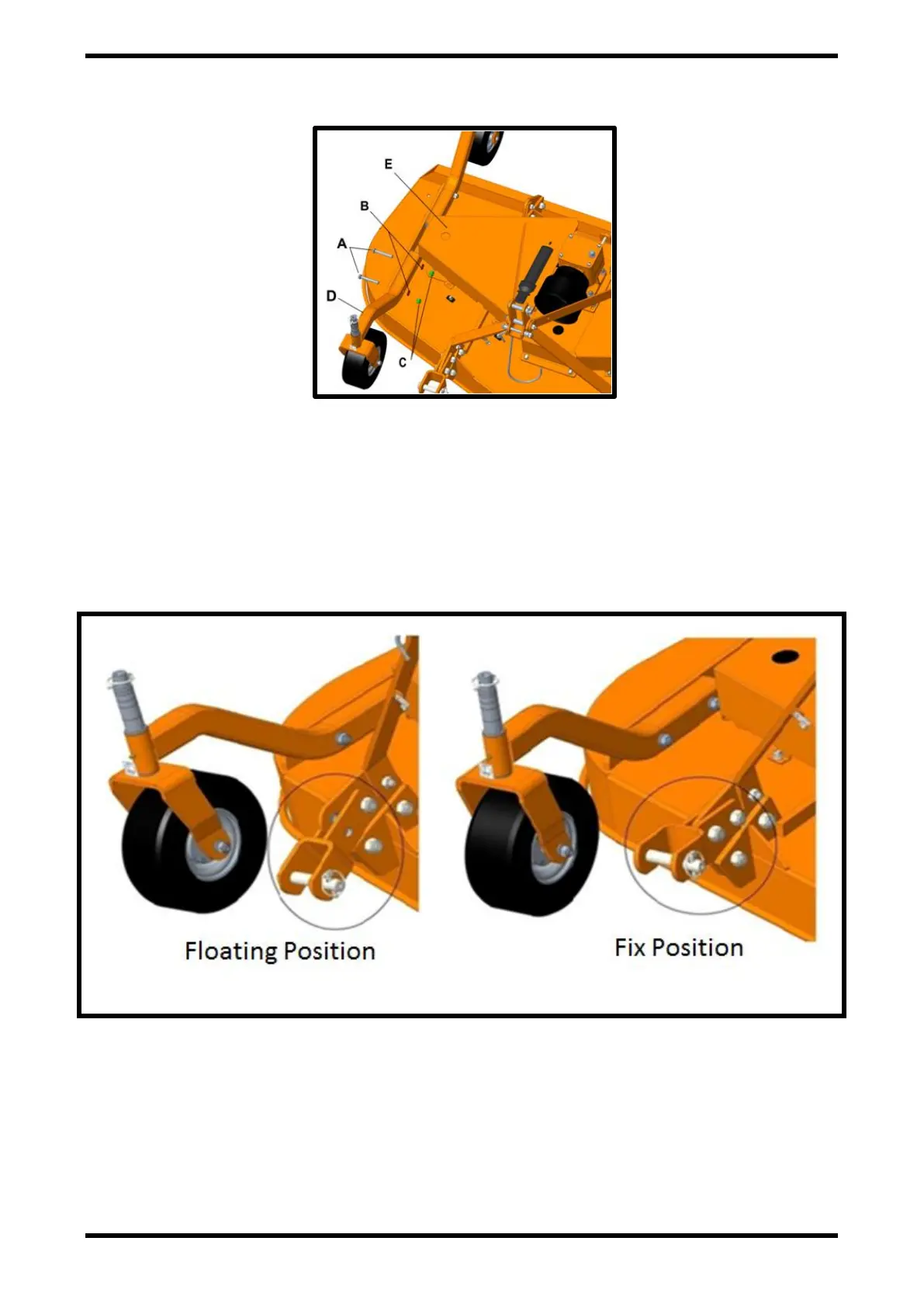

LOWER HITCHES ADJUSTMENT
The lower hitched of the SGM mowers can be set in two different configurations:
Fixed position (see picture below - left side);
Floating position (see picture below - right side), that allows the mower to float and follow
con-tour over hilly and uneven terrain.
To change from fixed to floating position, remove screw (A), nut (B) and bushing (C) clamping the
two bent plates (D) to the front plate (E) welded to the frame.
