Growatt MOD 11KTL3-X Manual

1

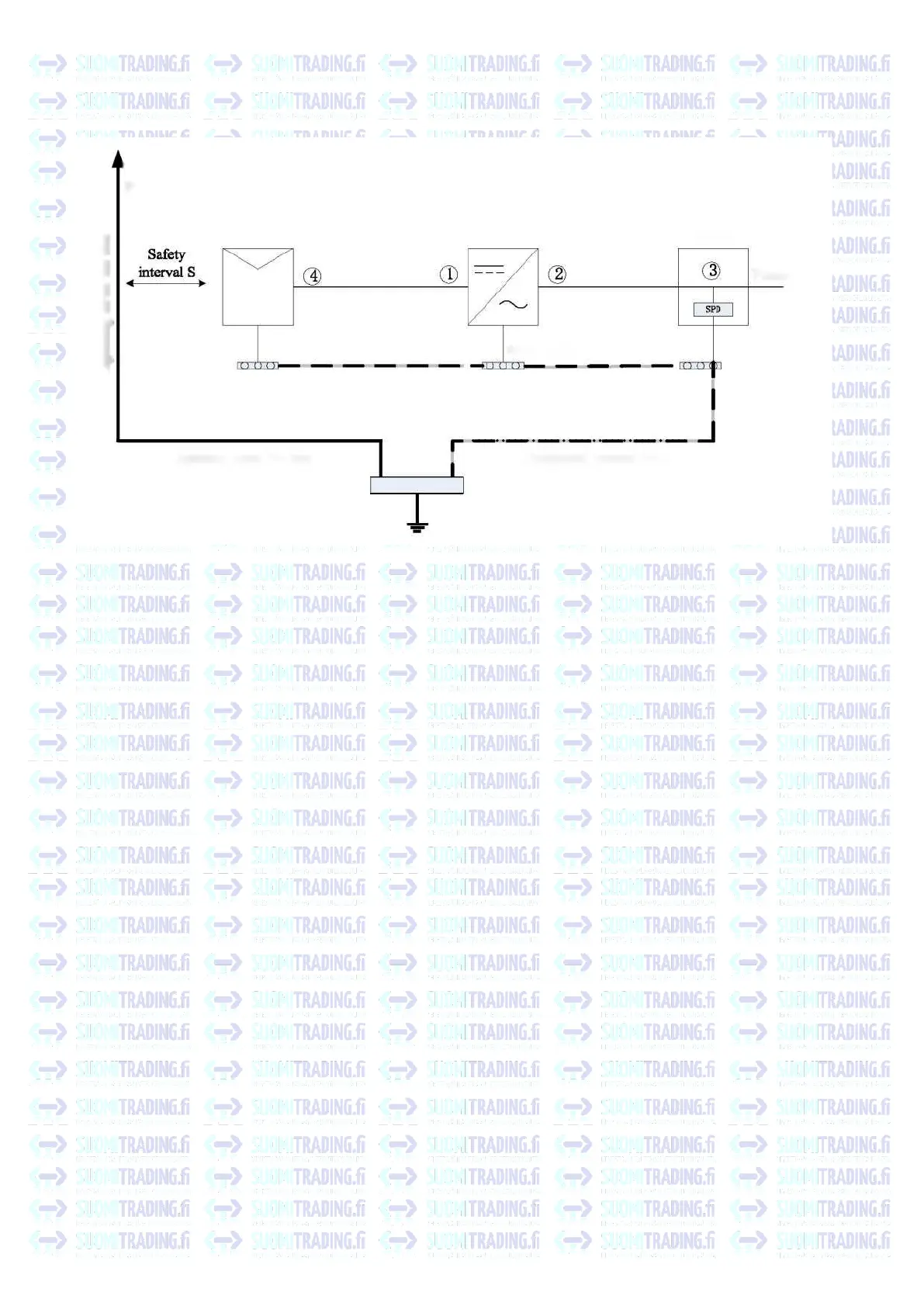

Lightning pro-
tection device
Lightning down the line
Photovoltaic panel
Inverter
Distribution
Cabinet
Lightning down the line
Equipment ground wire
1) It is generally recommended to install lightning protection devices (such as lightning rods /
lightning protection belts and down conductors) to prevent lightning from hitting the PV array.
2) Lightning protection devices and down-conductors and related equipment in photovoltaic
systems (including photovoltaic panels, inverters, cables, power distribution equipment) should
maintain a safe separation distance S.
Suggested value of S: According to the general 5 storey height (about 15m) building roof, S
takes 2.5m enough, the distance S have relationship with the building height.
A. When the safety distance S is satisfied:
The position of the figure should be equipped with a lightning protection module. In general,
it is recommended to install Type II in position (l) and Type I in position ©.
B. When the safety and safety distance S is not met:
In addition to position 3, Type I lightning protection module should be installed in Figure
3) The lightning down conductor and the equipment ground wire eventually sink at a total
ground point, but the two cannot share the wire. That is, the equipment grounding wire should
be pulled separately, and the wire diameter requirement >6mm
2
when the safety interval dis-
tance S is satisfied.
4) About the above lightning protection lightning receptor system related design reference
GB/T 21 71 4.3-201 5.
25
Power grid
Grounding bar
Total grounding point
Fig 6.17

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
