6.6 Active power control with smart meter, CT or ripple
control signal receiver
This series inverter has integrated export limitation functionality. To use this function, you can
connect the Growatt smart meter. For the detailed information, please contact with Growatt.

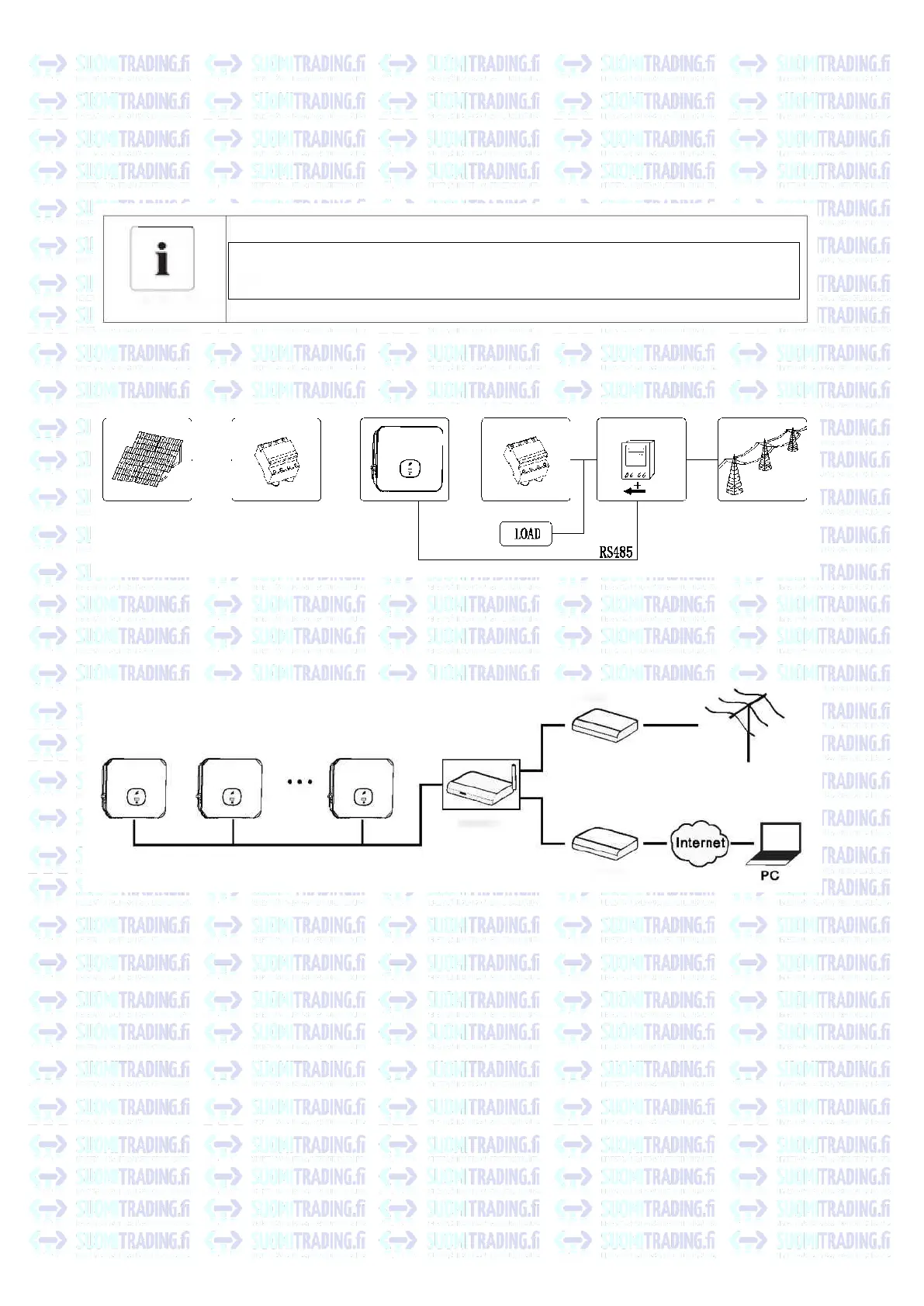

Fig 6.18
Active power control with a Radio Ripple Control Receiver(RRCR).
Radio ripple con-
trol receiver
Fig 6.19
Router
Public Grid
6.7 GFCI(Standard)
6.7.1 Ground Fault Circuit Interrupt(GFCI)
This inverter includes an integrated residual current device .If the leakage current is over
300mA and last for more than 300ms,the inverter will report 201 fault and the OLED will
display Residual I High.
The inverter has the function of detecting residual current and protecting the inverter against
residual current. If your inverter must equip a AC breaker which has the function of detecting
residual current ,you must choose a Type A RCD breaker with the rating residual current more
than 300mA.
26
The position of export limitation CT or Meter must between the Inverter &
Load and gird.
Information
Monitor

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
