Growatt SPH3000 User Manual

21 22

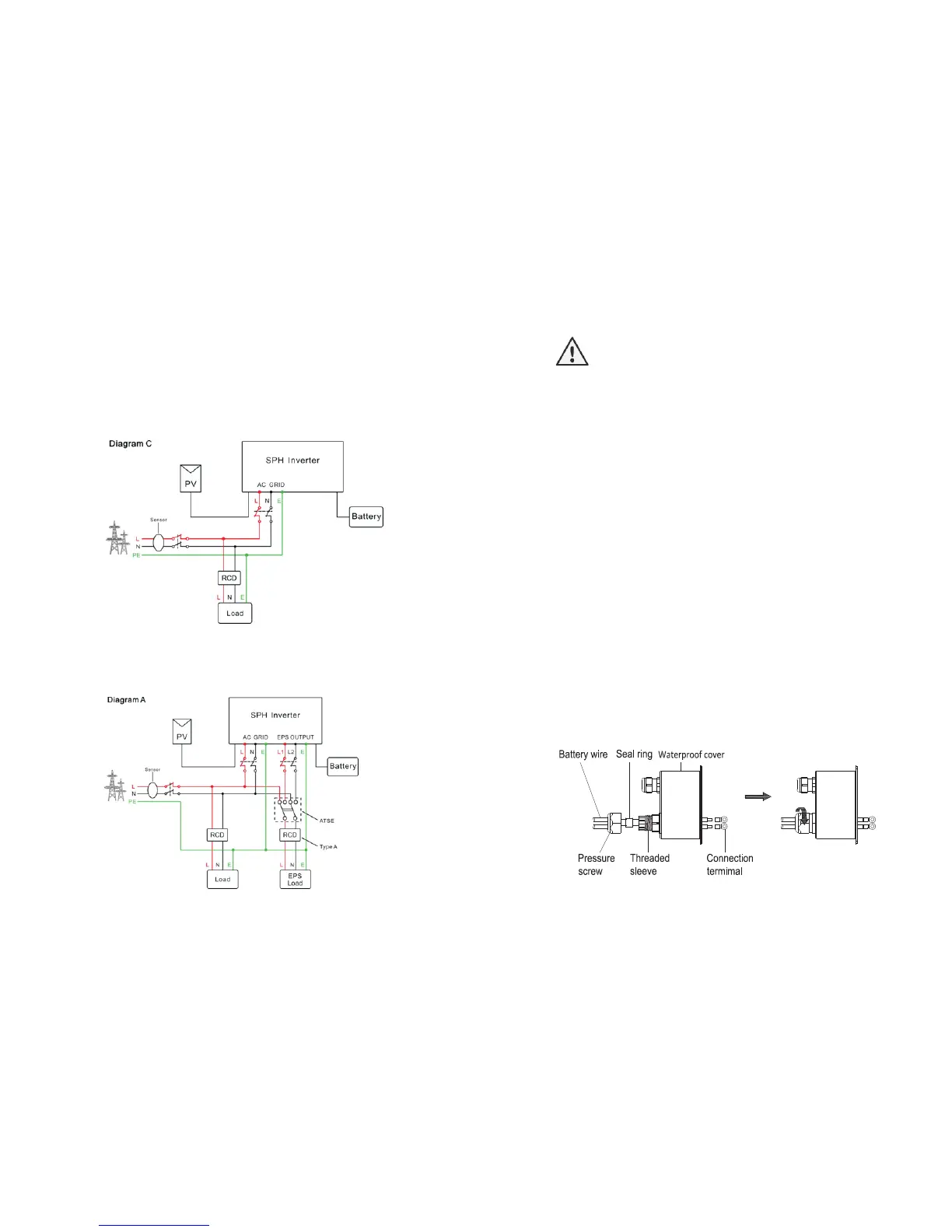

The recommended wiring diagram is as follows:
Chart 5.16
Step4: Plug the socket into AC output terminal，clockwise rotation to tighten the
socket, counterclockwise rotation to loosen the socket.
Install battery steps are as follows:
1.Open cover.
2.Thread cables through pressure screw, seal ring, threaded sleeve, waterproof cover.
3.Thread cables into connection terminal, then press the terminal by relevant tools
and make sure battery cables are firmly (Growatt lithium battery contains a battery
cable in the original packing).
4.Connect positive pole (+) of battery cable to battery positive terminal (+) of the
inverter, connect negative pole (-) of battery cable to battery negative terminal (-).
Chart 5.17
Chart 5.15
Notice:
1.If you want to use on gird only, please refer to chart 5.15. connect with AC grid and
float EPS OUTPUT.
2.If you want to use both on gird power and back up power ,please refer to chart
5.16. connect with AC grid and EPS OUTPUT like the chart show.
3.On grid terminal and off grid terminal can't directly connect together, if directly
connected together, it will cause damage to inverter!
4.Off Grid terminal can't connect to grid. If there is grid power, it will cause damage
to inverter!
5.If you want to use on gird and off grid, you can use ATS (automatic transfer switch )
like before or ask Growatt for help to connect them.
5.4.3 Connection of battery terminal

Growatt SPH3000 Specifications

General

Model	SPH3000
Category	Inverter
Rated Power	3000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
AC Output Voltage	230 V
Frequency	50/60Hz
Dimensions	505 x 453 x 198 mm
Weight	26 kg
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	3000 W
Max. AC Apparent Power	3000VA
AC Voltage Range	180-280V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single Phase
Max. Charging Current	50A
Max. Discharging Current	50A
Max. DC Power for Charging/Discharging	3000W
Protection Degree	IP65
Cooling Method	Natural Convection
Max. Output Power	3000 W
Max. Efficiency	97.5%
THD	<3%
Battery Voltage Range	40-60V
Communication	WiFi
Operating Temperature Range	-25 ~ +60 °C
