Growatt SPH3000 User Manual

23
24

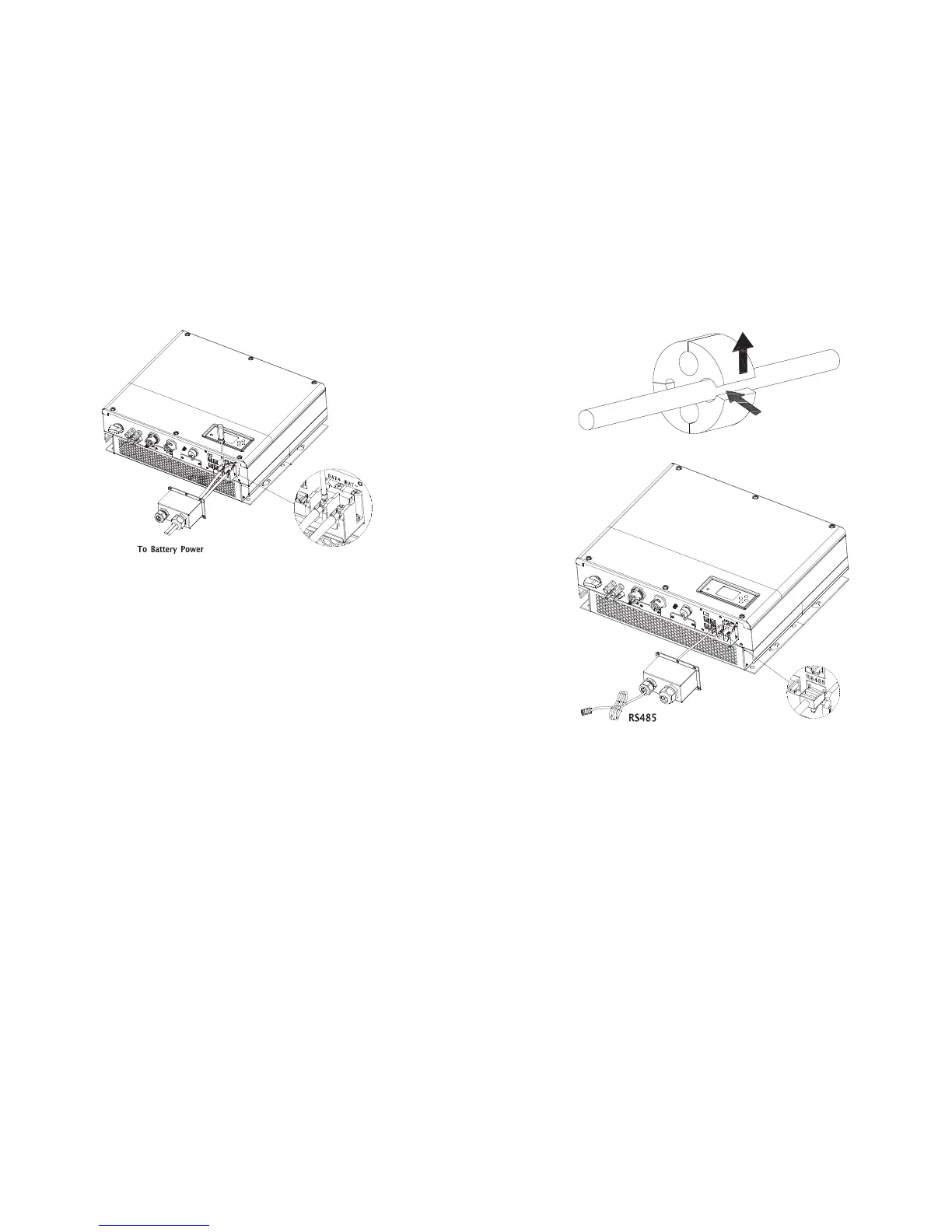

Chart 5.18
5.4.4 Connection of communication terminal for lithium battery
When using lithium batteries which need to connect BMS system of the battery，
connect lithium battery terminal (RJ45) steps as follows:
5.4.5 Connection of temperature probe for lead-acid battery
When customer using lead-acid battery, the temperature probe of the lead-acid
battery is used to detect the ambient temperature of the lead-acid battery, the
battery temperature cable of the SPH side connection steps are as follows:
1.Thread the swivel nut over the “NTC” cable.
2.Press the cable support sleeve out of the cable gland.
3.Remove the filler plug from the cable support sleeve.
4. Route the “NTC” cable through a min opening in the cable support sleeve.
5. Thread the “NTC” cable through the cable gland.
6. Insert the RJ45 plug of the network cable into the “NTC” pin connector on the
inverter until it snaps into place.
Note：we suggest the distance between battery and SPH no longer than 1.5m, and
The power line area must be larger than 5 AWG.
1.Unscrew the swivel nut from the cable gland for the “RS485” (lithium battery
communication) cable and “NTC” (lead-acid battery temperature sensor) cable and
“DRMs” (only used in Australia) cable and the “CT/Meter” (connection of sensor or
meter communication) cable at the connection cap.
2.Insert LAN cables into RJ45 terminal, the order of the cables as follow, then press
the RJ45 terminal with suitable tools and make sure all of cables are firmly.
3.Connect pressed RJ45 terminal into corresponding port of the inverter.
2. Thread the swivel nut over the “RS485” cable.
3. Press the cable support sleeve out of the cable gland.
4. Remove the filler plug from the cable support sleeve.
5. Route the “RS485” cable through an opening in the cable support sleeve.
6. Thread the “RS485” cable through the cable gland.
7. Insert the RJ45 plug of the network cable into the “RS485” pin connector on the
inverter until it snaps into place.
Chart 5.19
Chart 5.20
Note：If you are using a lead-acid battery, you do not need to install this
communication cable,please skip this step to 5.3.5.

Growatt SPH3000 Specifications

General

Model	SPH3000
Category	Inverter
Rated Power	3000 W
Max. DC Voltage	550 V
MPPT Voltage Range	120 V - 500 V
AC Output Voltage	230 V
Frequency	50/60Hz
Dimensions	505 x 453 x 198 mm
Weight	26 kg
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	3000 W
Max. AC Apparent Power	3000VA
AC Voltage Range	180-280V
Power Factor	0.8 leading to 0.8 lagging
THDi	<3%
AC Connection Type	Single Phase
Max. Charging Current	50A
Max. Discharging Current	50A
Max. DC Power for Charging/Discharging	3000W
Protection Degree	IP65
Cooling Method	Natural Convection
Max. Output Power	3000 W
Max. Efficiency	97.5%
THD	<3%
Battery Voltage Range	40-60V
Communication	WiFi
Operating Temperature Range	-25 ~ +60 °C
