Growatt SPH6000 User Manual

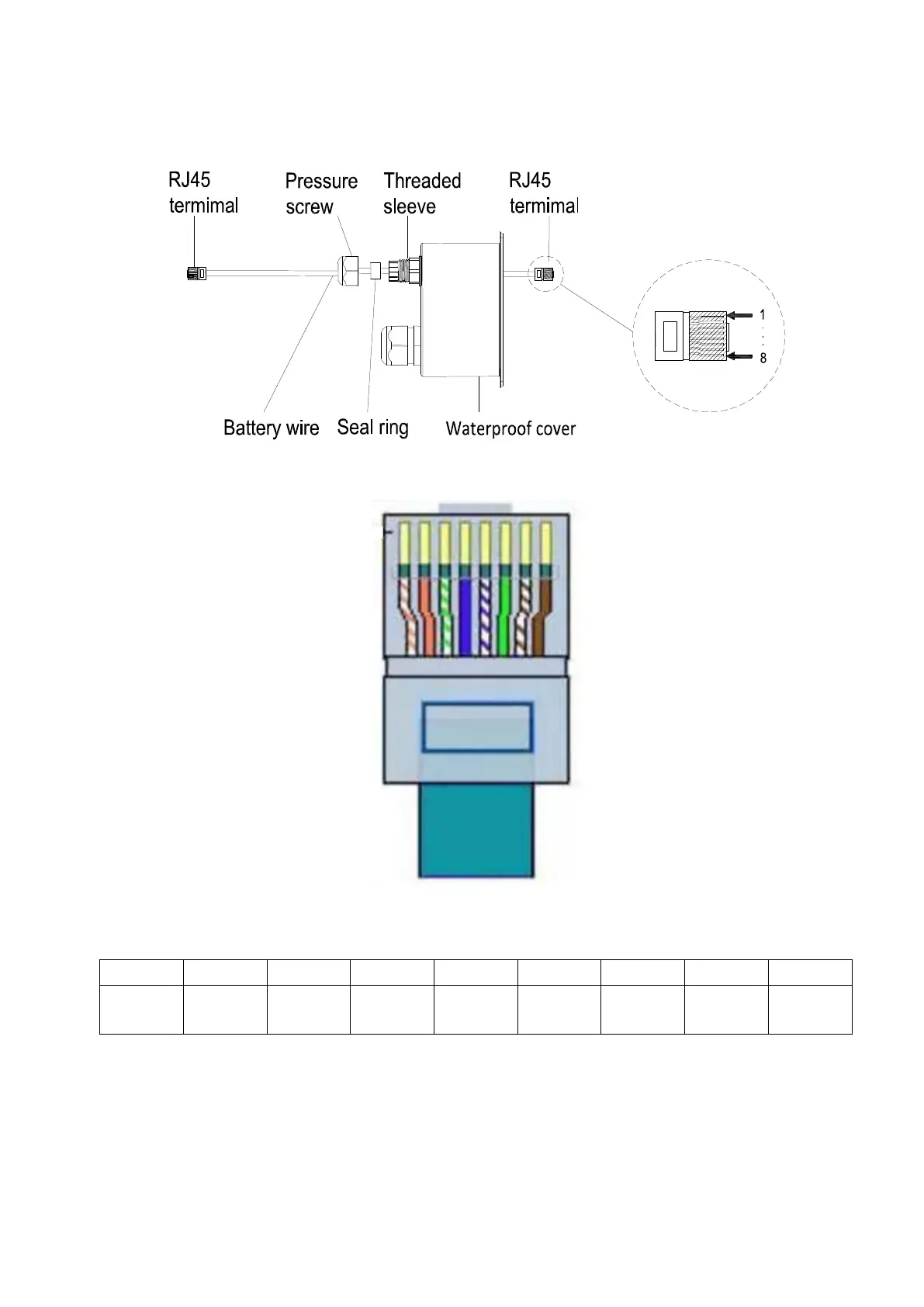

LAN line RJ45 sequence as follow:
Chart 5.5
Chart 5.6
LAN line 1-8 colors as below:
PIN 1 2 3 4 5 6 7 8
Color
White
orange
Orange
White
green
Blue
White
blue
Green
White
brown
Brown
5.3 Installation Instructions
5.3.1 Attention Layout（length of sensors consider）
There’re three types of sensors for use with SPH. One is wired current sensor, one is meter sensor, or SP-CT,
if you choose wired sensor or meter. Before installing you should know something that as below:

Growatt SPH6000 Specifications

General

Model	SPH6000
Category	Inverter
Rated Power	6000 W
Max. DC Voltage	550 V
Max. Output Current	27.3 A
Start Voltage	150 V
Nominal DC Voltage	360V
Number of DC Inputs	2
Number of MPP Trackers	2
Nominal AC Power	6000 W
Max. AC Power	6600 W
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Max. Output Power	6600 W
Output Voltage	230V
Output Frequency	50/60 Hz
Nominal AC Voltage	230V
AC Voltage Range	180V-280V
Power Factor	0.8 leading - 0.8 lagging
Communication	RS485
Cooling Method	Natural Convection
