Growatt SPH6000 User Manual

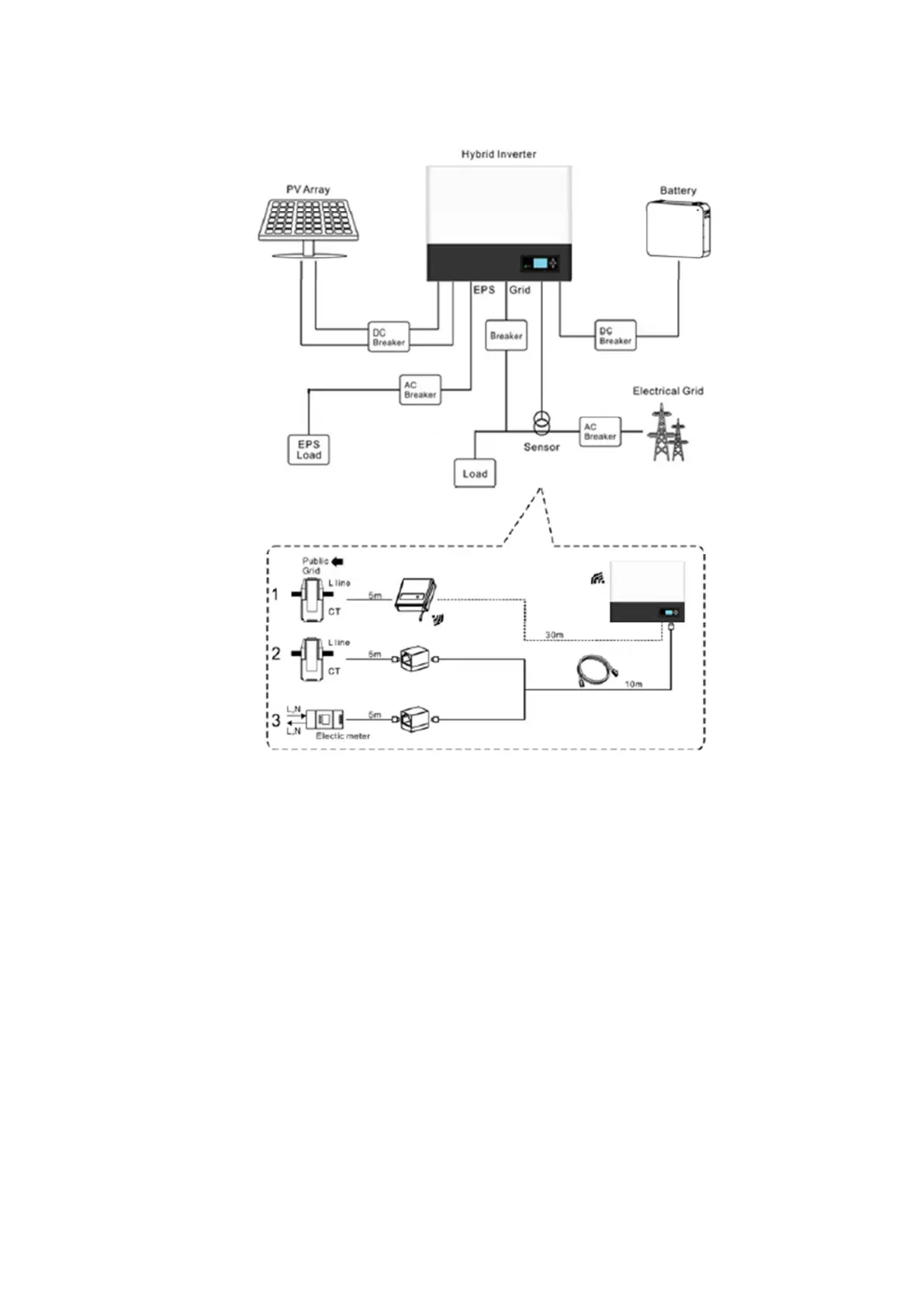

Chart 2.1
As shown above, a complete grid-connected system of SPH TL BL-UP consists of PV modules, SPH TL BL-UP
inverter, battery, utility grid and other components.
Attention:
As the system refer to battery use, we must make sure ventilation of the service environment and temperature
control in order to prevent the danger of battery explosion, battery recommended installation environment
must be strictly in accordance with the specification, if the specification is IP20 environment, the pollution
degree of the unit is PD2, meanwhile the temperature should be control in the 0-40℃ of indoor ventilation
and the humidity should be 5%-85%. If the chosen PV modules needs to positive or negative ground connection,
please contact with Growatt for technical support before installation.
2.2 Safety Measure

Growatt SPH6000 Specifications

General

Model	SPH6000
Category	Inverter
Rated Power	6000 W
Max. DC Voltage	550 V
Max. Output Current	27.3 A
Start Voltage	150 V
Nominal DC Voltage	360V
Number of DC Inputs	2
Number of MPP Trackers	2
Nominal AC Power	6000 W
Max. AC Power	6600 W
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Max. Output Power	6600 W
Output Voltage	230V
Output Frequency	50/60 Hz
Nominal AC Voltage	230V
AC Voltage Range	180V-280V
Power Factor	0.8 leading - 0.8 lagging
Communication	RS485
Cooling Method	Natural Convection
