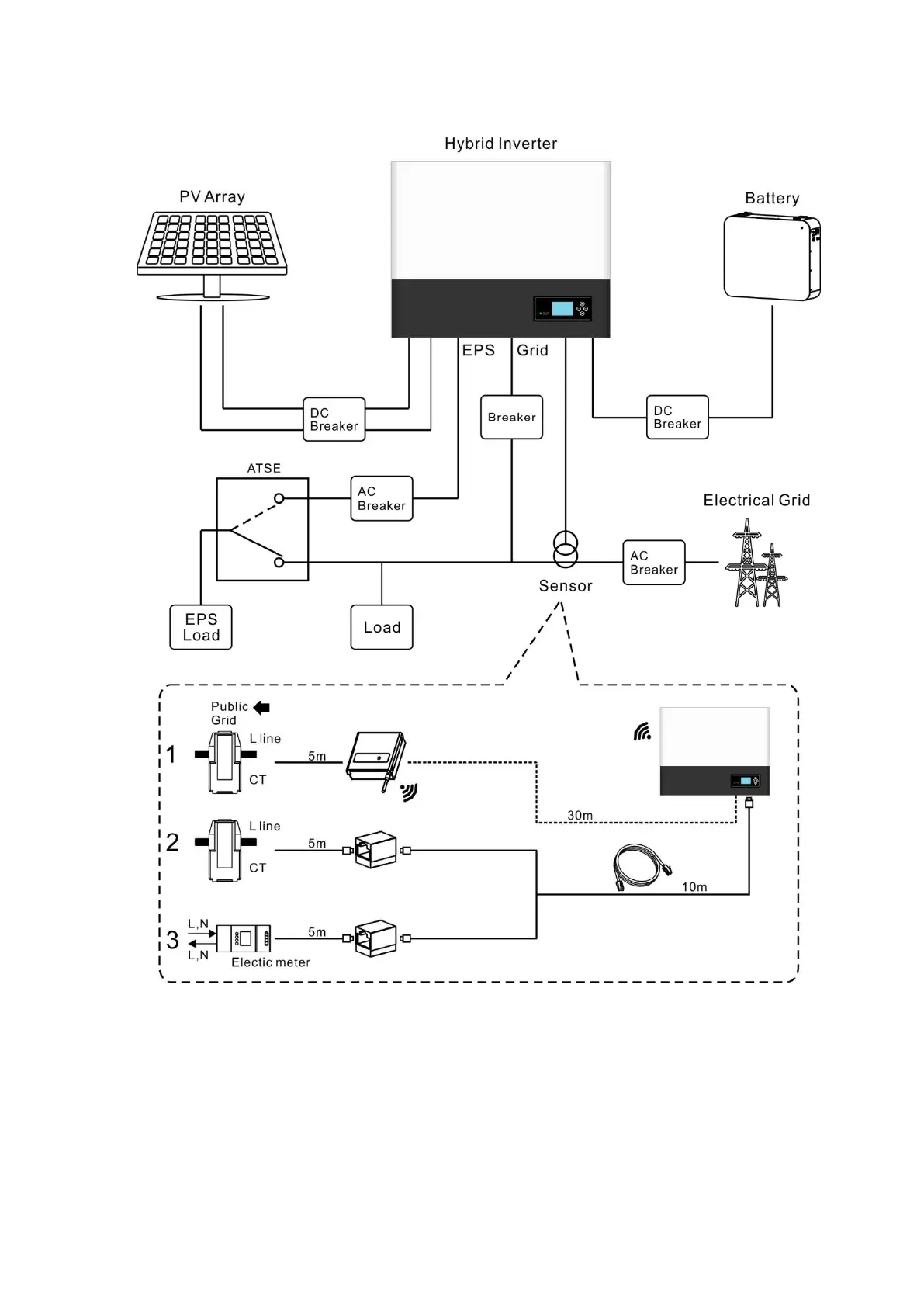

Chart 5.7-2 Growatt SPH 3000-6000
5.3.2 Installation of SPH
1. Project the machine’s probably sizes on the wall, the thickness of wall for SPH must be not less than
60mm.
2. Make sure the drill position, use paper board(installation guide), put the paper board cling to the wall,
make sure the top edge of paper board is level (As the chart 5.8a below).
3. Mark four points at the wall via the hole of the paper board, then remove the paper board.
