Growatt SPH6000 User Manual

make sure that the maximum input voltage of the inverter is not exceeded.
Connection of PV terminal

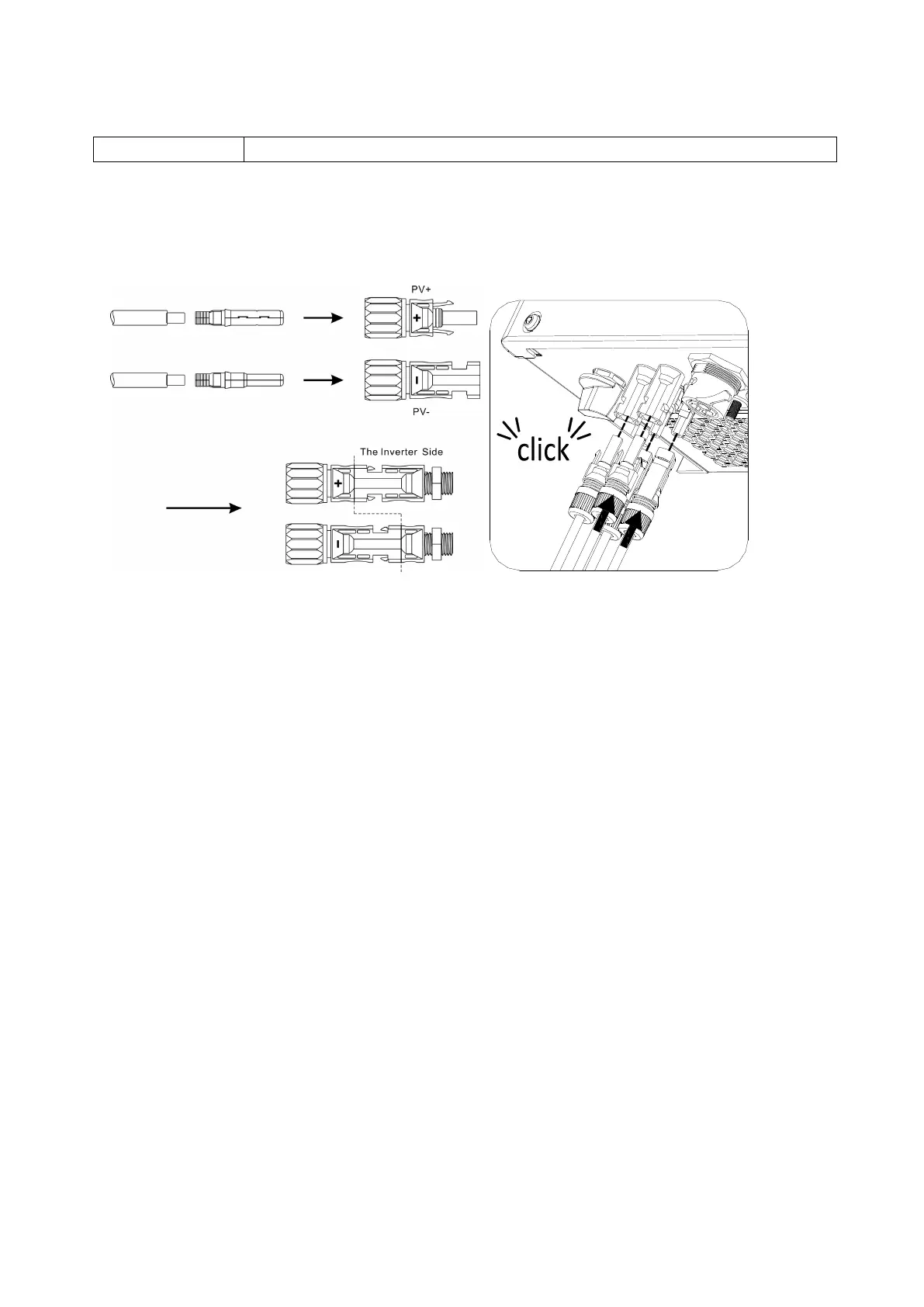

Chart 5.9
Similar to the traditional inverter connecting, the input of PV panel energy can be realized by using MC4 PV
terminal, the detail steps are as follows:
1. Turn off PV switch.
2. Insert PV panel positive and negative cables into MC4 terminal, then connect positive pole(+) of
connection cable to positive pole(+) of PV input connector, connect negative pole(-) of connection cable to
negative pole(-)of PV input connector, please pay attention to PV input voltage and current within permission
Limit:
Max PV voltage: 550V (consider the lowest temperature)
Max PV input current: 12A
Max PV input power per string: 4000W
Remark:
1. We suggest you use the cable≥4mm
2
/12 AWG to connect.
2. Please do not connect to DC source!
5.4.2 Connection of AC terminal and off grid terminal
SPH has a grid output terminal and off grid out terminal, look down on the SPH from the front, the terminal on
the left (on grid) is grid outlet for connecting grid, the terminal on the right is an emergency power outlet for
connecting critical load.

Growatt SPH6000 Specifications

General

Model	SPH6000
Category	Inverter
Rated Power	6000 W
Max. DC Voltage	550 V
Max. Output Current	27.3 A
Start Voltage	150 V
Nominal DC Voltage	360V
Number of DC Inputs	2
Number of MPP Trackers	2
Nominal AC Power	6000 W
Max. AC Power	6600 W
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Max. Output Power	6600 W
Output Voltage	230V
Output Frequency	50/60 Hz
Nominal AC Voltage	230V
AC Voltage Range	180V-280V
Power Factor	0.8 leading - 0.8 lagging
Communication	RS485
Cooling Method	Natural Convection
