Growatt SPH6000 User Manual

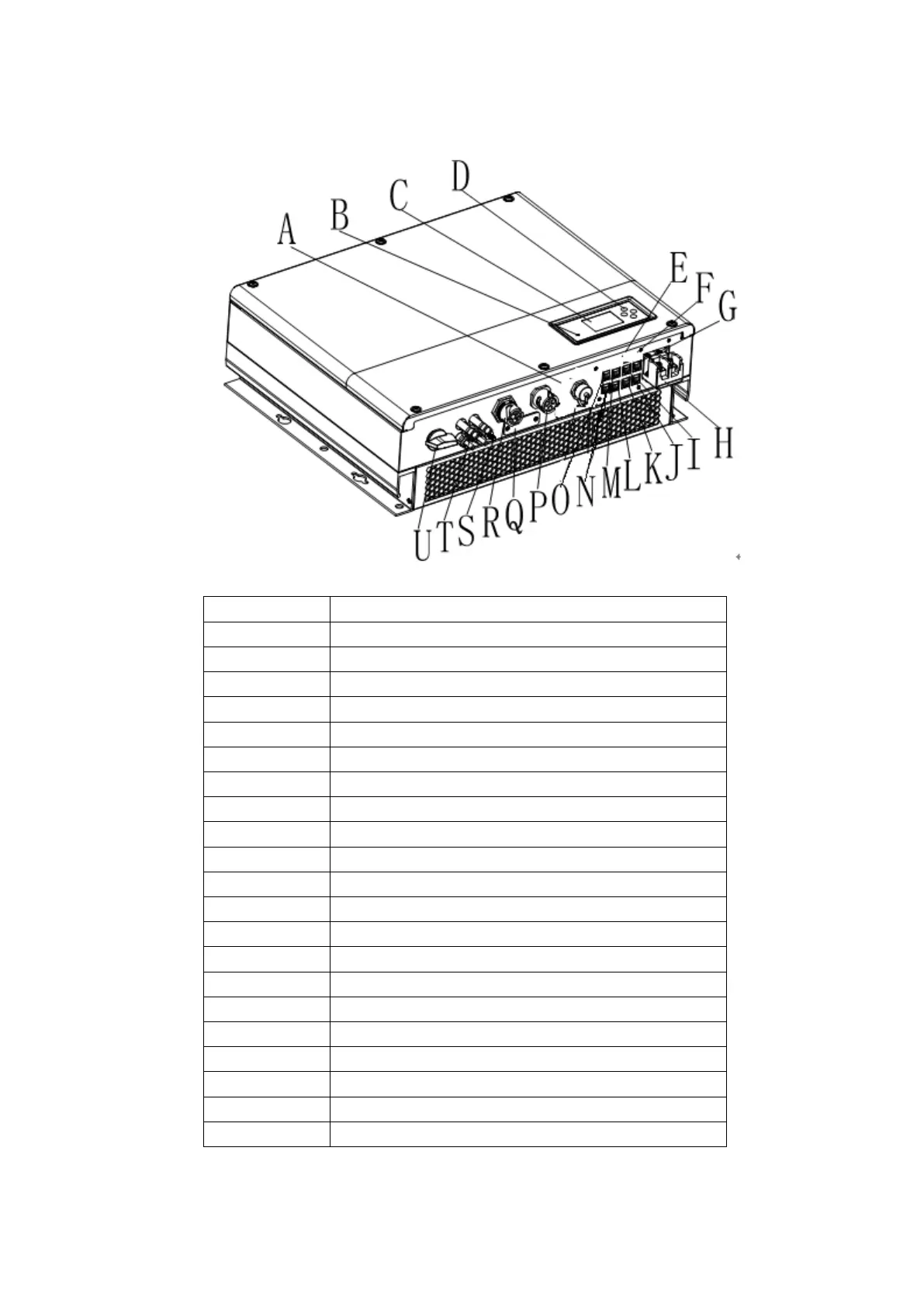

Chart 1.1
Position Description
A
USB interface
B LED of status display
C LCD screen
D Function button
E
DIP switch（set safety standard）
F Dry contact
G RS485 communication interface of Lithium battery
H Battery terminal
I CAN communication interface of Lithium battery
J RJ45 interface of DRMs(used only in Australia)
K NTC: Lead-acid temperature sensor terminal
L RS485 communication interface of meter
M CT input terminal
N RS485-1 communication
O VPP communication
P AC Grid (on grid connection)
Q RSD(do not open except by Professional staff)
R EPS output(off grid connection)
S Ground point
T PV input
U PV switch

Growatt SPH6000 Specifications

General

Model	SPH6000
Category	Inverter
Rated Power	6000 W
Max. DC Voltage	550 V
Max. Output Current	27.3 A
Start Voltage	150 V
Nominal DC Voltage	360V
Number of DC Inputs	2
Number of MPP Trackers	2
Nominal AC Power	6000 W
Max. AC Power	6600 W
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Max. Output Power	6600 W
Output Voltage	230V
Output Frequency	50/60 Hz
Nominal AC Voltage	230V
AC Voltage Range	180V-280V
Power Factor	0.8 leading - 0.8 lagging
Communication	RS485
Cooling Method	Natural Convection
