Appendix
29
1.4 EtherNet/IP configuration
This web page is used to configure all the parameters relevant to the EtherNet/IP protocol standard.

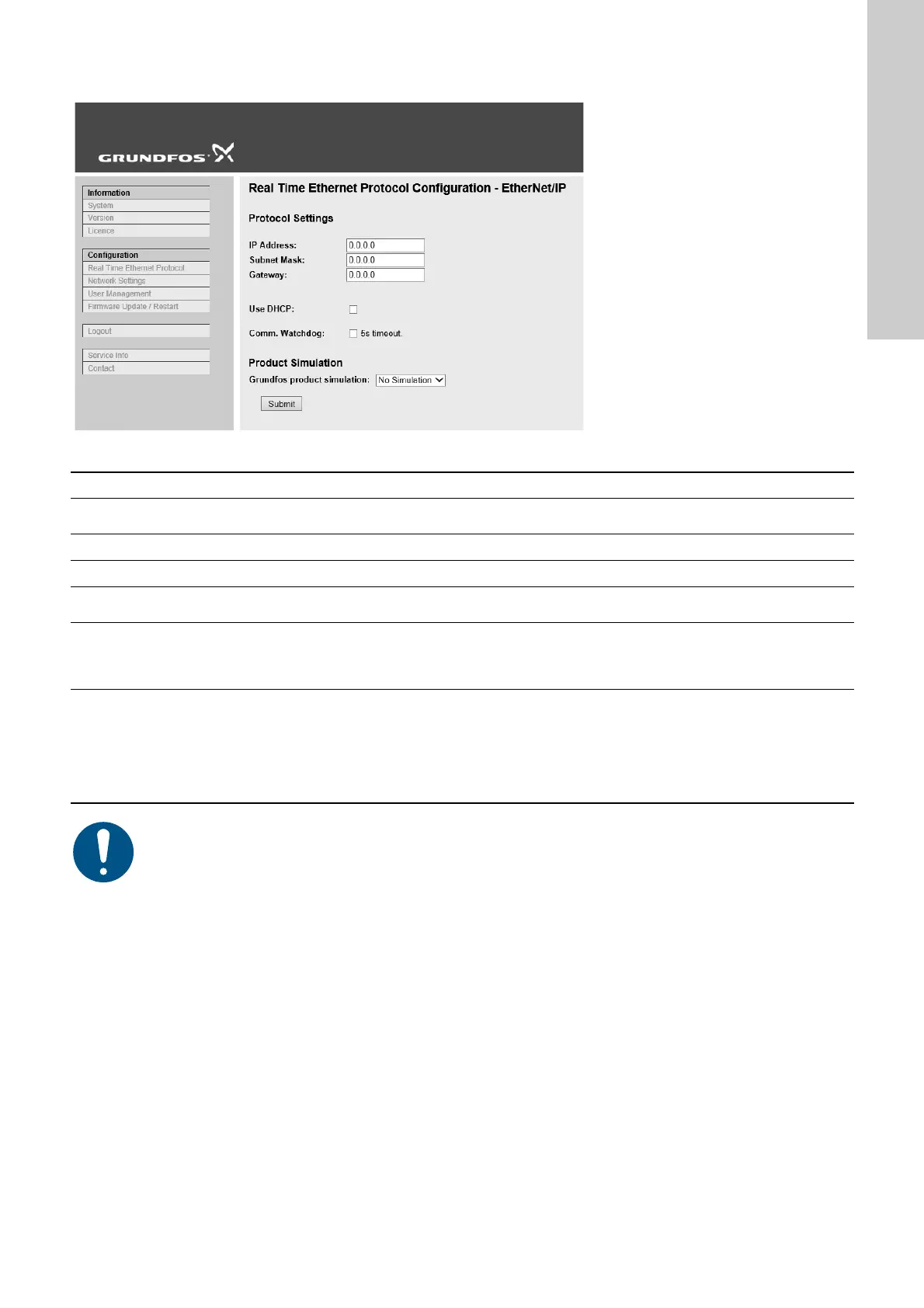

Fig. 3 Real Time Ethernet Protocol Configuration - EtherNet/IP
TM07 4519 1919
Object Description
IP Address
Configuration of the static IP address if a DHCP server is not used. EtherNet/IP is not allowed to share the IP
address with a CIM 500 webserver.
Subnet Mask Configuration of the subnet mask if a DHCP server is not used.
Gateway Configuration of the gateway address if a DHCP server is not used.
Use DHCP
The CIM 500 module can be configured to automatically obtain its EtherNet/IP network settings from a DHCP
server, if available on the network. Default: No use of DHCP.
Communication
Watchdog
For enabling of a 5 seconds communication watchdog timer. Only active for pump or booster products.
Unchecked: Watchdog is disabled (default).
Checked: Watchdog is enabled, time-out is 5 seconds.
Watchdog action: The pump or the booster is set to local mode.
Grundfos product
simulation
The module can be put in product simulation mode to generate realistic simulated values of all the
EtherNet/IP input data. It will thus be possible to connect an EtherNet/IP master to a module fitted in a CIU or
an E-box without installing this device in a real industrial process system. In an office environment, it can then
be verified that communication works, and data is received and handled correctly by the EtherNet/IP master
application program (for example PLC program) before installing the device.
To enable product simulation, select a product type from the dropdown list.
To terminate product simulation, select "No Simulation".
You need a contract with Grundfos and an external
router with Internet connection to gain access to the
GRM server.
