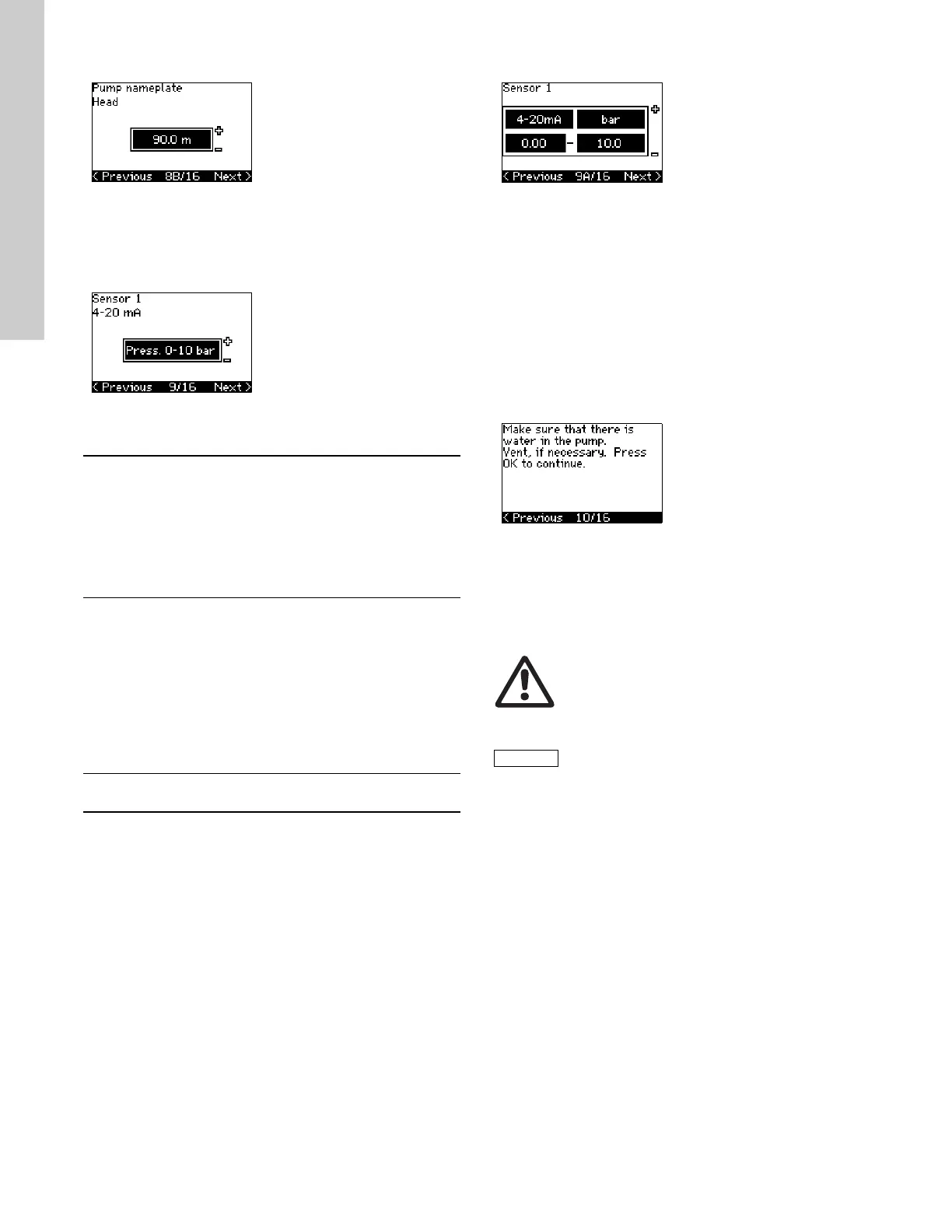

11.3.12 Rated head (8B/16)
This display only appears if the control mode selected is
proportional differential pressure.
Set the rated head according to the pump nameplate:
• 1-3277 ft. (1-999 m).
11.3.13 Sensor connected to terminal 54 (9/16)
Set the measuring range of the connected sensor with a signal
range of 4-20 mA. The measuring range depends on the control
mode selected:
If the control mode selected is "Constant other value", or if the
measuring range selected is "Other", the sensor must be set
according to the next section, display 9A/16.
11.3.14 Another sensor connected to terminal 54 (9A/16)
This display only appears when the control mode "Constant other
value" or the measuring range "Other" has been selected in
display 9/16.
• Sensor output signal:
0-20 mA
4-20 mA.
• Unit of measurement of sensor:
bar, mbar, m, kPa, psi, ft, m
3
/h, m
3
/min, m
3
/s, l/h, l/min, l/s,
gal/h, gal/m, gal/s, ft
3
/min, ft
3
/s,°C, °F, %.
• Sensor measuring range.
The measuring range depends on the sensor connected and the
measuring unit selected.
11.3.15 Priming and venting (10/16)
See the installation and operating instructions of the pump.
The general setting of the CUE is now completed, and the start-
up guide is ready for setting the direction of rotation:
• Press [OK] to go on to automatic or manual setting of the
direction of rotation.
11.3.16 Automatic setting of the direction of rotation (11/16)
The CUE automatically tests and sets the correct direction of
rotation without changing the cable connections.
This test is not suitable for certain pump types and will in certain
cases not be able to determine with certainty the correct direction
of rotation. In these cases, the CUE changes over to manual
setting where the direction of rotation is determined on the basis
of the installer’s observations.
Proportional differential pressure:
• 0-20 ft. (0 - 0.6 bar)
• 0-33 ft. (0-1 bar)
• 0.54 ft. (0 - 1.6 bar)
• 0-84 ft. (0 - 2.5 bar)
• 0-200 ft. (0-4 bar)
• 0-334 ft. (0-6 bar)
• Other.
Constant differential pressure:
• 0-20 ft. (0 - 0.6 bar)
• 0-33 ft. (0-1 bar)
• 0.54 ft. (0 - 1.6 bar)
• 0-84 ft. (0 - 2.5 bar)
• 0-200 ft. (0-4 bar)
• 0-334 ft. (0-6 bar)
• Other.
Constant pressure:
• 0-58 psi (0-4 bar)
• 0-87 psi (0-6 bar)
• 0-120 psi (0-8 bar)
• 0-145 psi (0-10 bar)
• 0-232 (0-16 bar)
• 0-362 (0-25 bar)
• 0-580 (0-40 bar)
• 0-879 (0-60 bar)
• Other.
Constant flow rate:
• Other.
Constant temperature:
• Other.
Constant level:
• Other.
Warning
During the test, the pump will run for a short
time. Ensure that no personnel or equipment is in
danger!
Before setting the direction of rotation, the CUE
will make an automatic motor adaptation of
certain pump types. This will take a few minutes.
The adaptation is carried out during standstill.
