Multifunction valve
Multifunction valve
Compact valve unit for direct mounting on the pump
discharge connection. The valve has four functions:
1. Constant counter-pressure
2. Anti-siphoning
3. Pump protection
4. Manual pressure relief.
Relief pressure: 160 psi (11 bar)
Constant counter pressure: 22 psi (1.5 bar)
Maximum volume: 13 GPH (50 l/h).

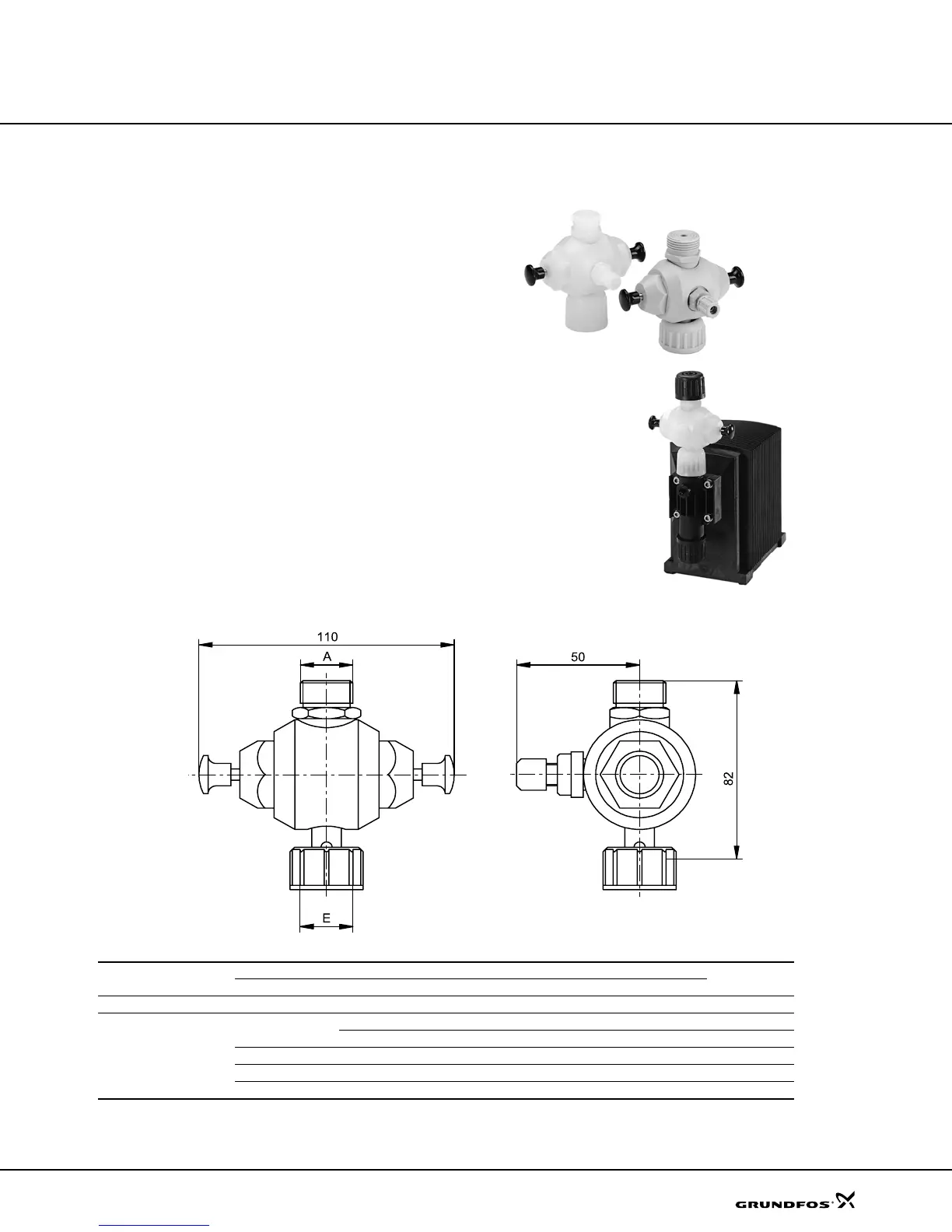

Dimensions (mm)
TM01 9583 2100 - TM01 8961 0900
TM01 2220 1498
Pump type
Materials Dimensions
Product
Number
Housing Gasket Diaphragm A E
SS DME, DMS* PVDF FKM PTFE M28 x 2 M28 x 2 96497411
DME 2 to 48 DMS
PP
EPDM PTFE M30 x 3.5 M30 x 3.5 96440584
FKM PTFE M30 x 3.5 M30 x 3.5 96440585
PVDF FKM PTFE M30 x 3.5 M30 x 3.5 96440586
PVC EPDM PTFE M30 x 3.5 M30 x 3.5 96496470
PVC FKM PTFE M30 x 3.5 M30 x 3.5 96446752
* M28 x 2 fits stainless steel pump heads
