16 | Page

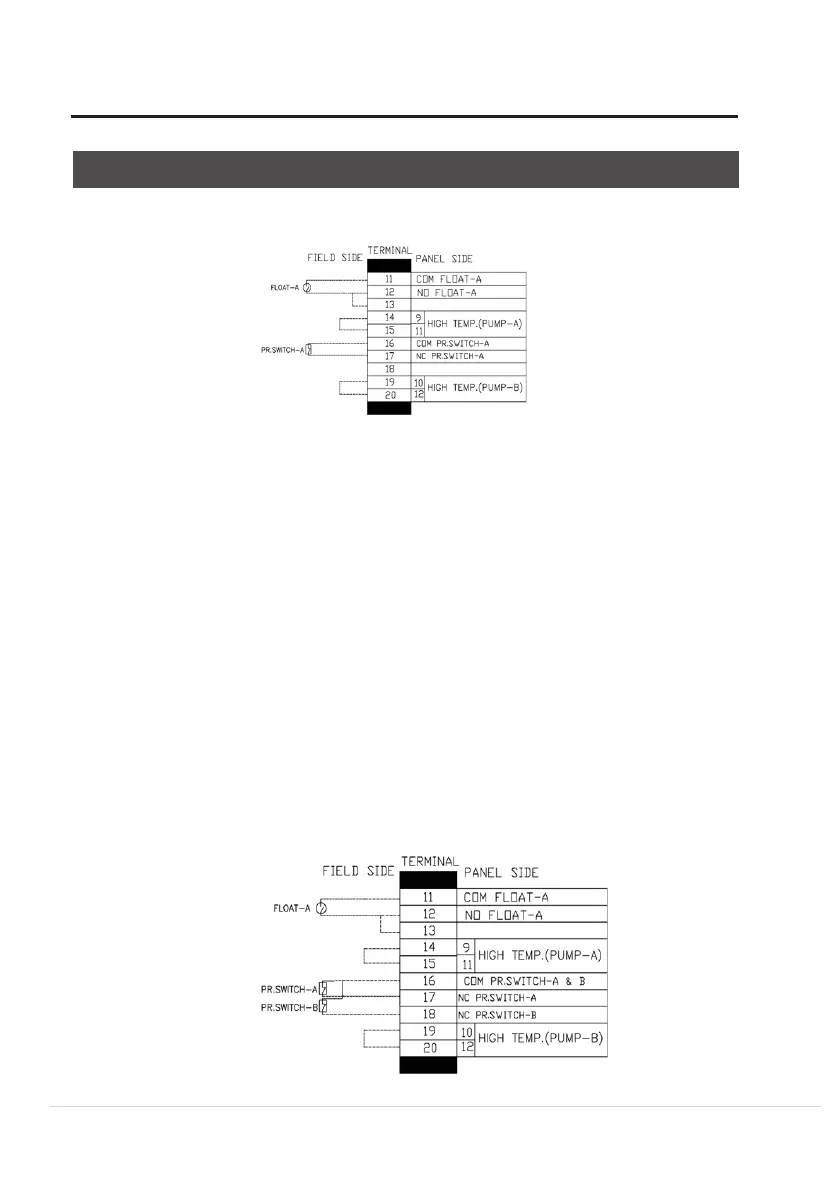

INSTALLATION - BOOSTING:
Using 1 Float Switch and 1 Pressure Switch
Start condition:
If the water level in source tank is high and the float switch A in the source
tank is in up position and the Pressure in the line is below the cut-in pressure
setting on the pressure switch A the pump starts. Panel will alternate between
pump A and pump B, when previous demand cycle is completed, and pump(s)
have stopped. LCD screen displays RUN indicating pump is running.
Stop condition:
If the water level in the source tank is low and Float switch A in the source tank
is in down position, the pump stops. LCD screen displays NO WATER, that means
there is no water in the source tank and can lead to a dry run situation.
If the Pressure in the line is equal to or above the cut-out pressure setting on
the pressure switch A installed, the pump stops. LCD screen displays FULL, that
means there is no demand of water.
Using 1 Float Switch and 2 Pressure Switch
TERMINALS
To Next Page
