Grundfos MAGNA 2000 Series User Manual

20
8.2.1 Control mode setting
Description of function, see section 7.1 Control
modes.
To change the control mode, press , pos. 3,
according to this cycle:

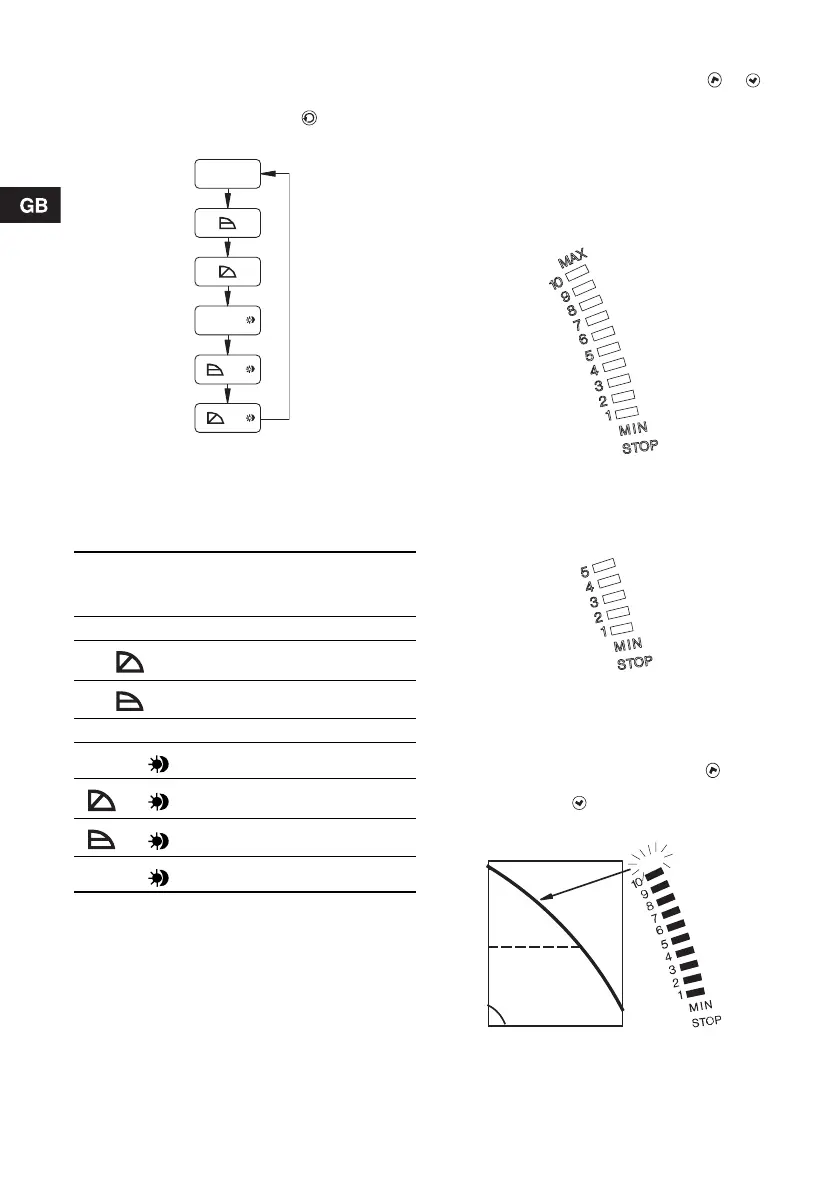

Fig. 20 Cycle of control modes
Automatic night-time duty can be activated together
with each of the control modes.
The light symbols in pos. 4, see fig. 19, indicate the
pump settings:
"–" = no light.
8.2.2 Setpoint setting
Set the setpoint of the pump by pressing or
when the pump has been set to proportional-
pressure control, constant-pressure control or
constant-curve duty.
The light fields, pos. 5, on the control panel indicate
the setpoint set.
MAGNA 32-120, 40-120, 50-120, 65-120
The light fields can indicate a maximum setpoint of
10 metres.
Fig. 21 Light fields MAGNA xx-120
MAGNA 50-60, 65-60
The light fields can indicate a maximum setpoint of
5metres.
Fig. 22 Light fields MAGNA xx-60
8.2.3 Setting to max. curve duty
Description of function, see section 7.5 Max. or min.
curve duty.
To change over to the max. curve, press
continuously until "MAX" illuminates, see fig. 23. To
change back, press continuously until the desired
setpoint is indicated.
Fig. 23 Max. curve
TM03 1288 1505
Light in Control mode
Automatic
night-time
duty
AUTO
ADAPT AUTOADAPT NO
Proportional
pressure
NO
Constant pressure NO
– Constant curve NO
AUTO
ADAPT
AUTOADAPT YES
Proportional
pressure
YES
Constant pressure YES
– Constant curve YES
AUTO
ADAPT
AUTO
ADAPT
+
+
+
TM02 0482 2507TM02 0483 2507TM02 0246 2507
H
H
MAX
H
