8.4 R100 display overview
The R100 displays are divided into four parallel
menus, see fig. 25:
0. GENERAL, see operating instructions for R100
1. OPERATION
2. STATUS
3. INSTALLATION
The number stated at each individual display in
fig. 25 refers to the section in which the display is
described.

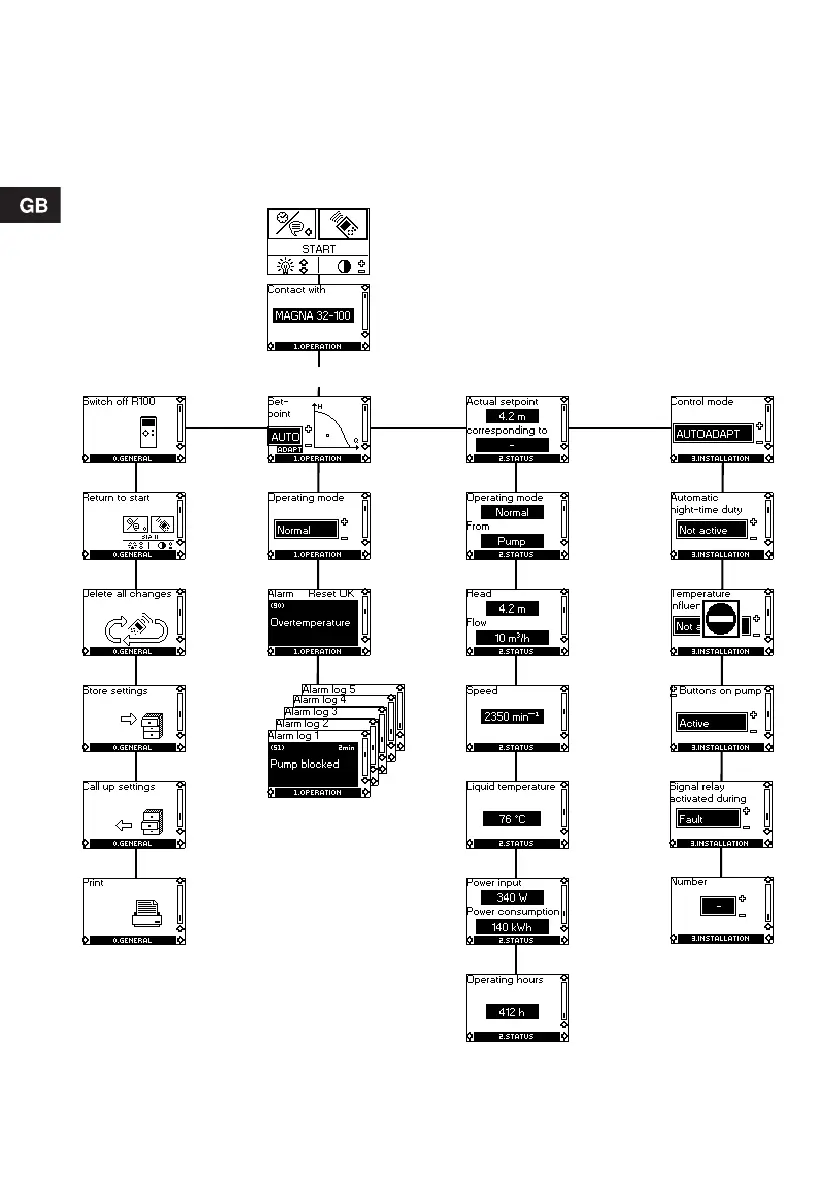

Fig. 25 Menu overview
8.7.5
8.7.4
8.7.1
8.7.2
8.7.6
8.6.5
8.6.4
8.6.1
8.6.2
8.6.6
8.6.3
8.5.4
8.5.1
8.5.2
8.5.3
8.6.7
8.7.3
3. INSTALLATION2. STATUS0. GENERAL 1. OPERATION
This display appears only once, i.e. when the R100
gets contact with the pump.
