Grundfos MAGNA1 C Series User Manual

English (GB)
13

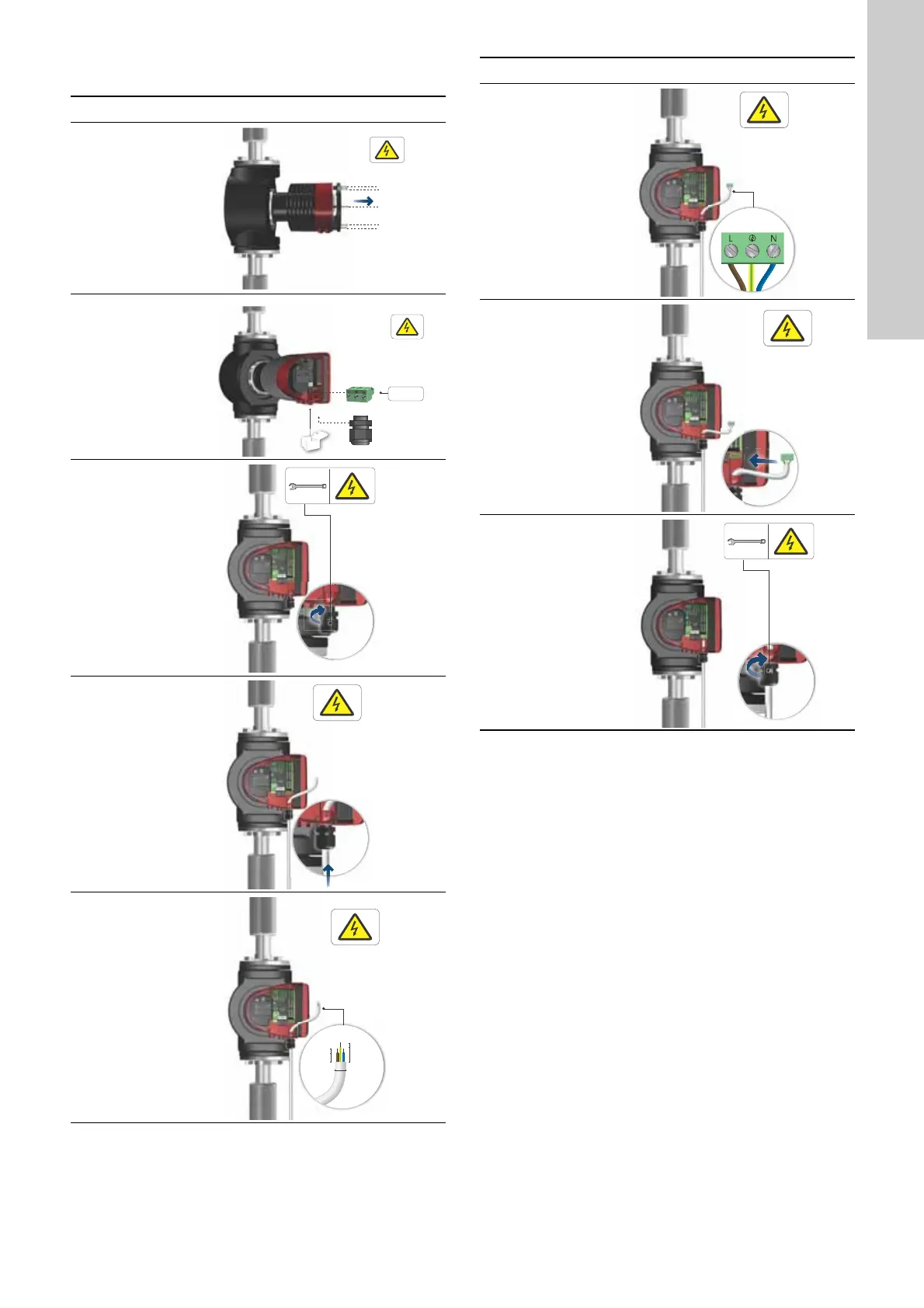

3.5.4 Connection to the power supply, terminal-connected
version
Step Action Illustration
1
Remove the
front cover from
the control box.
Do not remove
the screws from
the cover.
TM05 5530 3016
2
Locate the
power supply
plug and cable
gland in the
small cardboard
box supplied
with the pump.
TM06 8049 0717
3
Connect the
cable gland to
the control box.
TM06 8050 0717
4
Pull the power
cable through
the cable gland.
TM06 8051 0717
5
Strip the cable
conductors as
illustrated.
TM06 8052 0717
1 x 230 V
7 mm
20 mm
7 mm
25 mm
Min. Ø 7 mm
Max. Ø 14 mm
6
Connect the
cable
conductors to
the power
supply plug.
TM06 8053 0717
7
Insert the power
supply plug into
the male plug in
the control box.
TM06 8054 0717
8
Tighten the
cable gland.
Refit the front
cover.
TM06 8061 0717
Step Action Illustration

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
