Grundfos MAGNA1 C Series User Manual

English (GB)
4

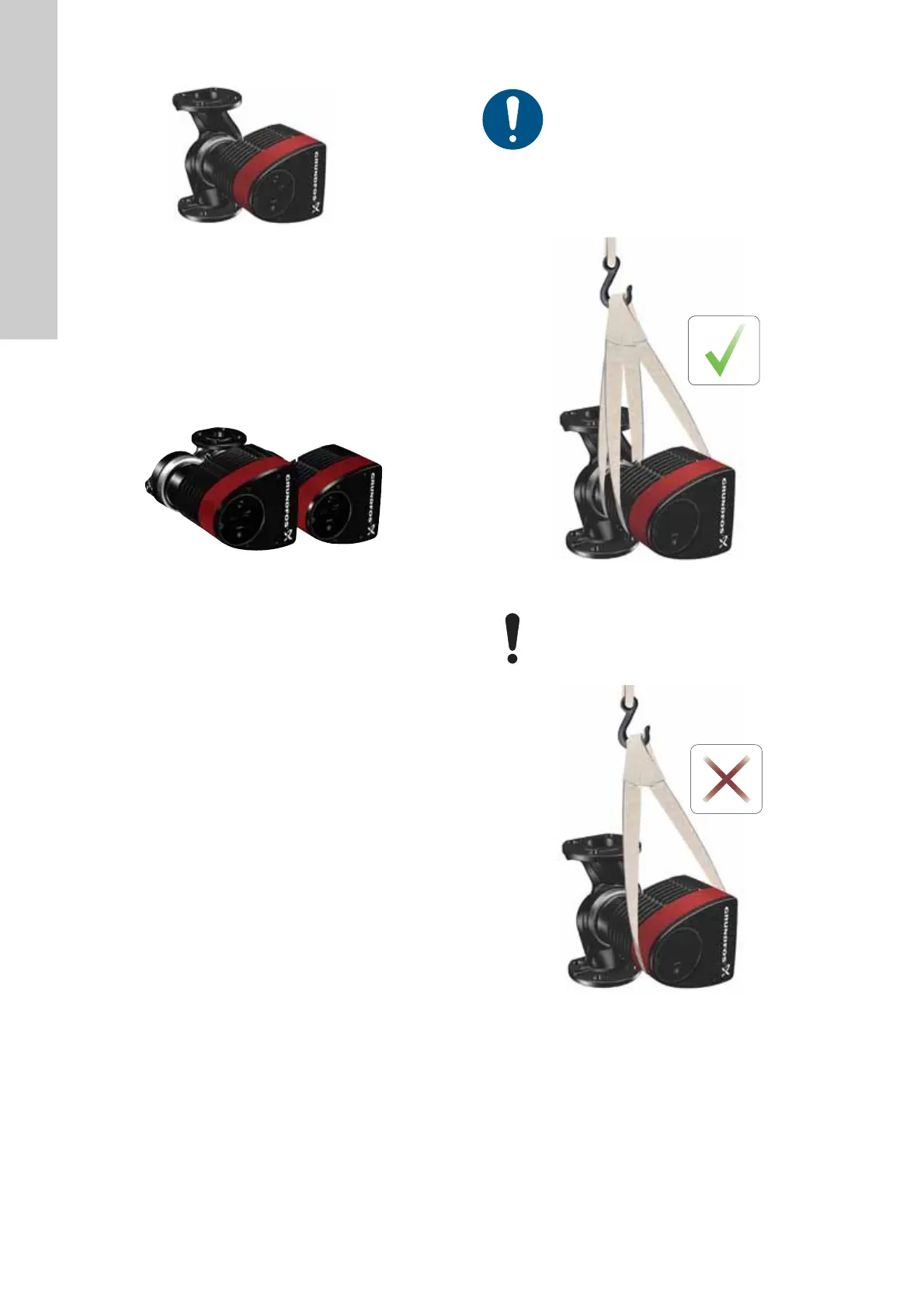

2.2.3 Terminal-connected single-head pump
Fig. 3 Terminal-connected single-head pump
The box contains the following items:
• MAGNA1 pump
• insulating shells
•gaskets
• quick guide
• safety instructions
• box with terminal and cable glands.
2.2.4 Terminal-connected twin-head pump
Fig. 4 Terminal-connected twin-head pump
The box contains the following items:
• MAGNA1 pump
•gaskets
• quick guide
• safety instructions
• two boxes with terminal and cable glands.
2.3 Lifting the product
Always lift directly on the pump head or the cooling fins when
handling the pump. See fig. 5.
For large pumps, it may be necessary to use lifting equipment.
Position the lifting straps as illustrated in fig. 5.
Fig. 5 Correct lifting of the pump
Fig. 6 Incorrect lifting of the pump
TM06 7223 3016TM06 6741 3016
Observe local regulations concerning limits for
manual lifting or handling.
TM05 5819 3016
Do not lift the pump head by the control box, i.e. the
red area of the pump. See fig. 6.
TM06 7219 3016

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
