8.2.1 Adjusting the proportional pressure using Grundfos GO
Remote
The setpoint of the proportional-pressure curve can be adjusted
using Grundfos GO Remote.
For instructions on how to connect the pump to Grundfos GO
Remote, see section 8.3 Connecting the pump to Grundfos GO
Remote.
Adjusting the proportional pressure is only possible
in proportional pressure mode.

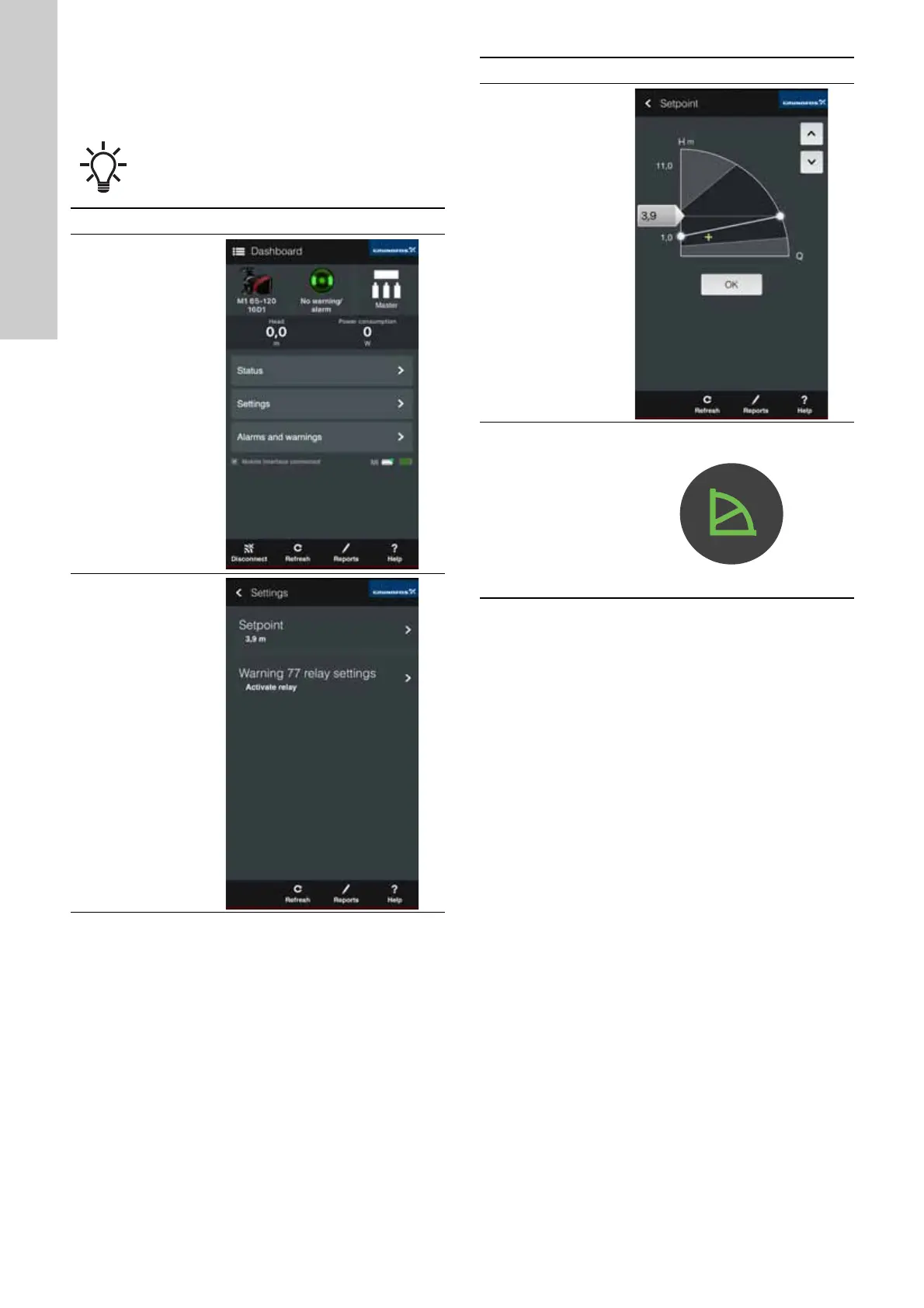

Step Action Illustration
1
Choose
"Settings" in the
Grundfos GO
Remote
dashboard.
TM06 8584 0817
2
Choose
"Setpoint" in the
"Settings"
menu.
TM06 8583 0817
3
Use the arrows
on the top right
of the screen, or
slide the
setpoint
indicator up and
down to adjust
the setpoint.
Press "OK".
TM06 8582 0817
4
When the pump
receives the
setpoint from
Grundfos GO
Remote, the
proportional-pre
ssure symbol on
the pump lights
up - none of the
level indicators
lights up.
Step Action Illustration

Grundfos MAGNA1 C Series Specifications

General

Head	Up to 12 m
Maximum Operating Pressure	10 bar
Power Supply	1 x 230 V, 3 x 400 V
Insulation Class	F
Type	Circulator Pump
Pump Housing	Cast Iron
Approvals	CE, EAC
Connection Type	Flanged or threaded
Material	Cast Iron
Weight	Varies depending on model
