Grundfos MAGNA1 Series User Manual

English (GB)
10

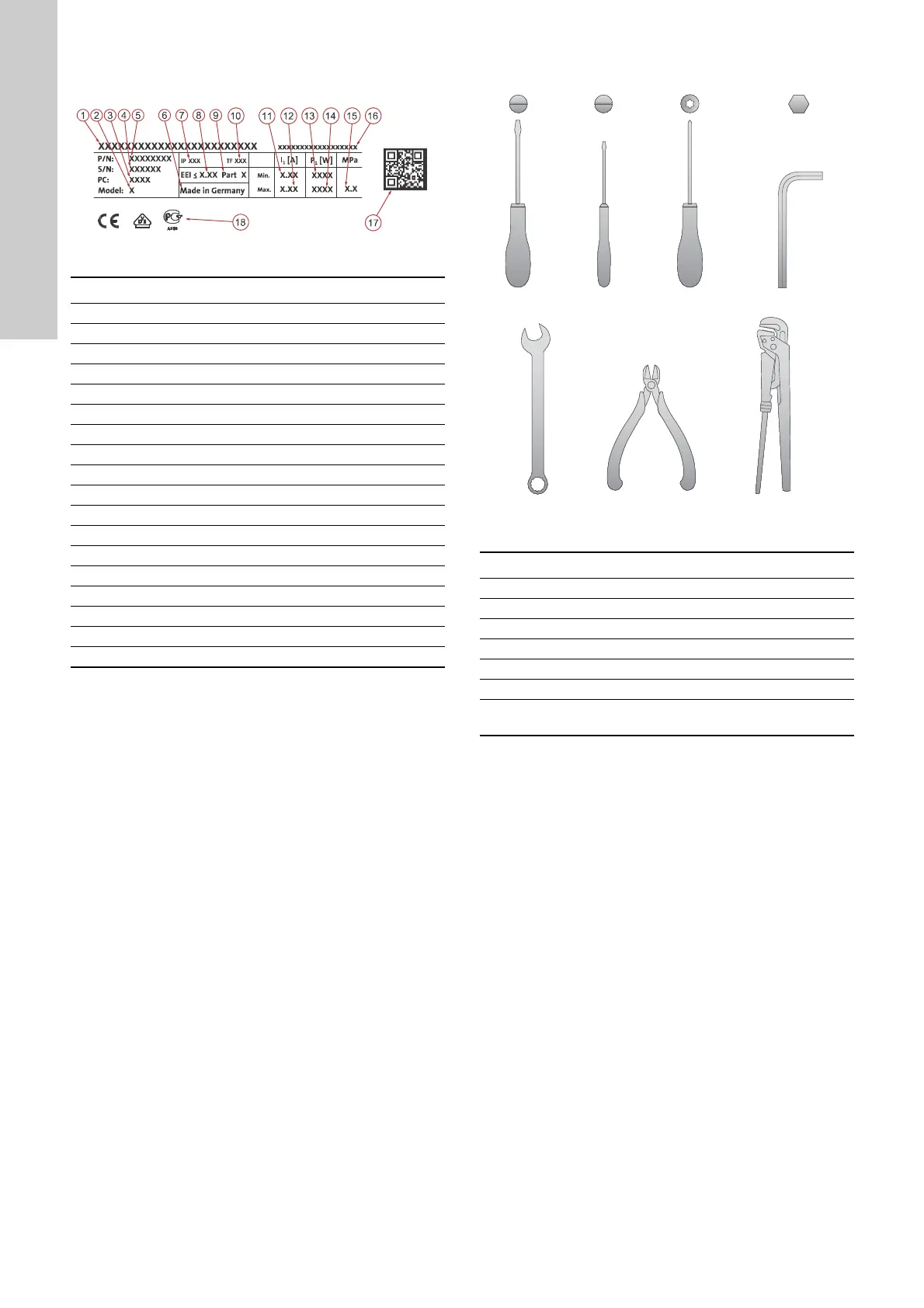

2.7 Nameplate
The pump nameplate provides the following information:
Fig. 6 Example of nameplate
2.8 Tools
Fig. 7 Recommended tools
TM05 5561 3812
Pos. Description
1 Product name
2 Model
3 Production code (year and week)
4 Serial number
5 Product number
6 Country of manufacture
7 Enclosure class
8 Energy Efficiency Index (EEI)
9 Part (according to EEI)
10 Temperature class
11 Minimum current [A]
12 Maximum current [A]
13 Minimum power [W]
14 Maximum power [W]
15 Maximum system pressure
16 Voltage [V] and frequency [Hz]
17 QR (Quick Response) code
18 CE mark and approvals
TM05 6472 4712
Pos. Tool Size
1 Screwdriver, straight slot 1.2 x 8.0 mm
2 Screwdriver, straight slot 0.6 x 3.5 mm
3 Screwdriver, torx bit TX20
4 Hexagon key 5.0 mm
5 Open-end spanner Depending on DN size
6 Side cutter
7 Pipe wrench
Only used for pumps with
unions
1.2 x 8.0 TX200.6 x 3.5 5.0
1
2
3
4
5
6
7

Grundfos MAGNA1 Series Specifications

General

Insulation Class	F
Type	Circulator pump
Control Panel Position	Integrated
Series	MAGNA1
Weight	Varies by model
Power Supply	3 x 380-480 V, 50/60 Hz
Pump Housing	Cast iron
Connection Type	Flanged
Voltage	380-480 V
Material	Cast iron, stainless steel
Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
