4. Electrical installation
Carry out the electrical connection and protection according to
local regulations.
Check that the supply voltage and frequency correspond to the
values stated on the nameplate.
• The pump must be connected to an external mains switch.
• The pump requires no external motor protection.
• The motor incorporates thermal protection against slow
overloading and blocking.
• When switched on via the power supply, the pump will start
pumping after approx. 5 seconds.
4.1 Supply voltage
1 x 230 V ± 10 %, 50/60 Hz, PE.
The voltage tolerances are intended for mains voltage variations.
They should not be used for running pumps at other voltages than
those stated on the nameplate.
4.2 Connection to the power supply
Warning
Switch off the power supply before making
connections.
Warning
The pump must be connected to an external
mains switch with a minimum contact gap of
3 mm in all poles.
Earthing or neutralisation must be used for
protection against indirect contact.
If the pump is connected to an electric
installation where an earth leakage circuit
breaker (ELCB) is used as an additional
protection, this circuit breaker must trip when
earth fault currents with DC content (pulsating
DC) occur.
The earth leakage circuit breaker must be marked
with the first or both of the symbols shown
below:
The number of starts and stops via the power
supply must not exceed four times per hour.

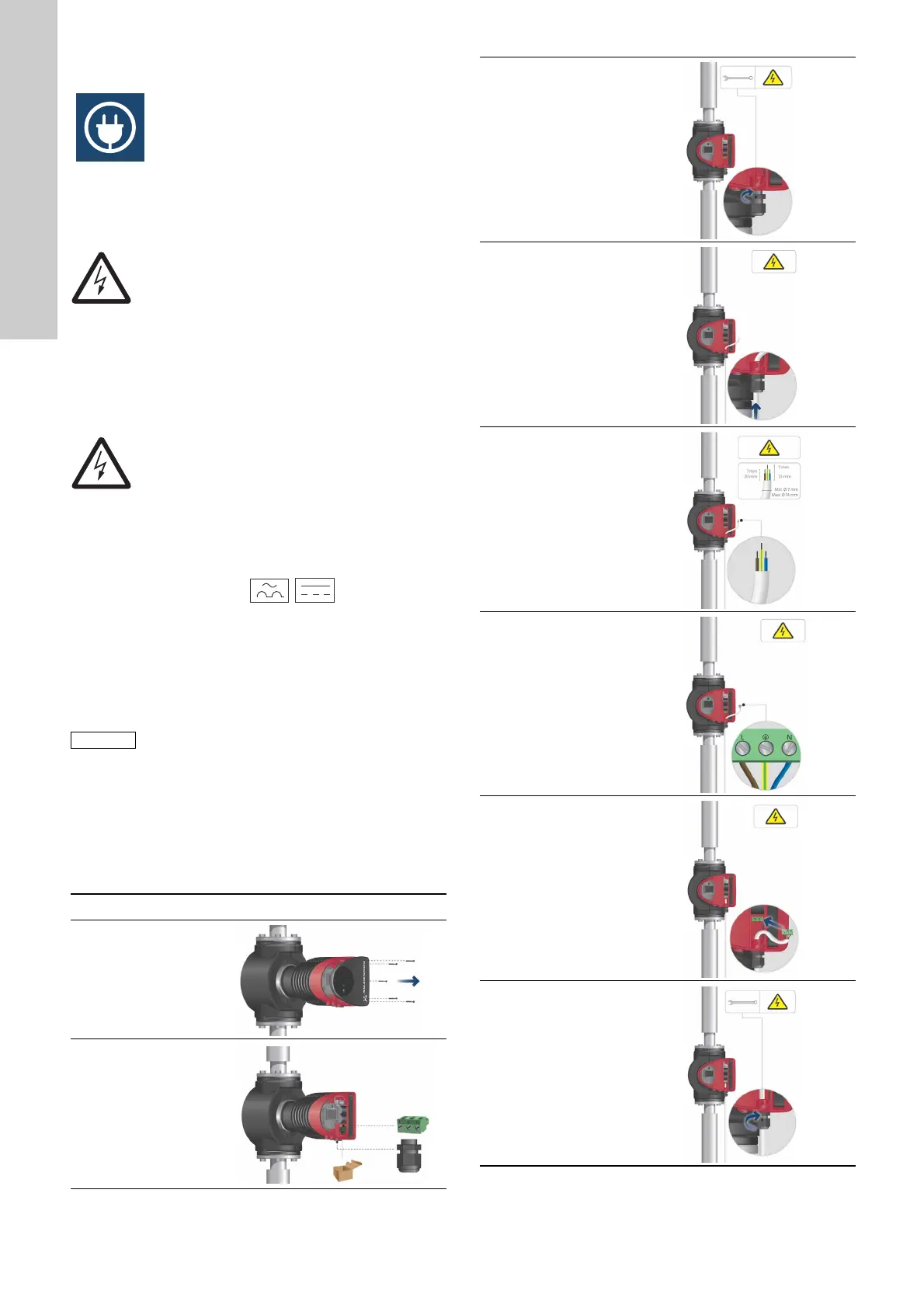

Step Action Illustration
1
Remove the front
cover from the
control box.
Note: Do not
remove the
screws from the
cover.
TM05 5530 3812
2
Locate the power
supply plug and
cable gland in the
small paper bag
supplied with the
pump.
TM05 5531 3812
3
Connect the cable
gland to the
control box.
TM05 5532 3812
4
Pull the power
supply cable
through the cable
gland.
TM05 5533 3812
5
Strip the cable
conductors as
illustrated.
TM05 5534 3812
6
Connect the cable
conductors to the
power supply plug.
TM05 5535 3812
7
Insert the power
supply plug into
the male plug in
the pump control
box.
TM05 5536 3812
8
Tighten the cable
gland.
Refit the front
cover.
TM05 5537 3812
