Grundfos MAGNA1 Series - Electrical Connection Diagrams

English (GB)
16
4.4 Connection diagrams

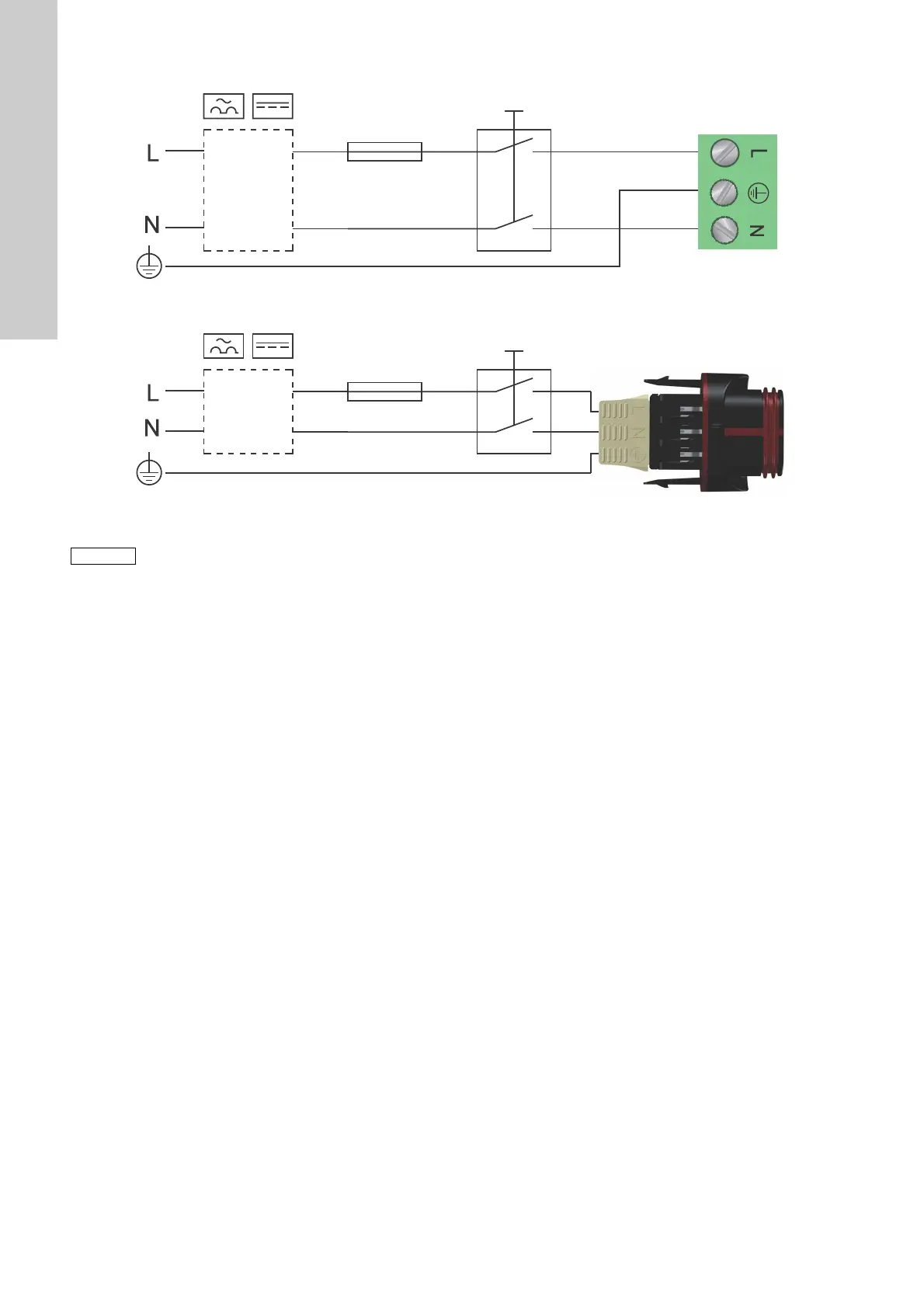

Fig. 15 Example of terminal connection, 1 x 230 V ± 10 %, 50/60 Hz, PE
Fig. 16 Example of ALPHA plug connection, 1 x 230 V ± 10 %, 50/60 Hz, PE
TM03 2397 3712TM05 5277 3712
External switch
Fuse
(min. 10 A, time lag)
ELCB
External switch
Fuse
(min. 10 A, time lag)
ELCB
Note
All cables used must be connected in accordance
with local regulations.
