Grundfos MAGNA1 Series User Manual

English (GB)
27

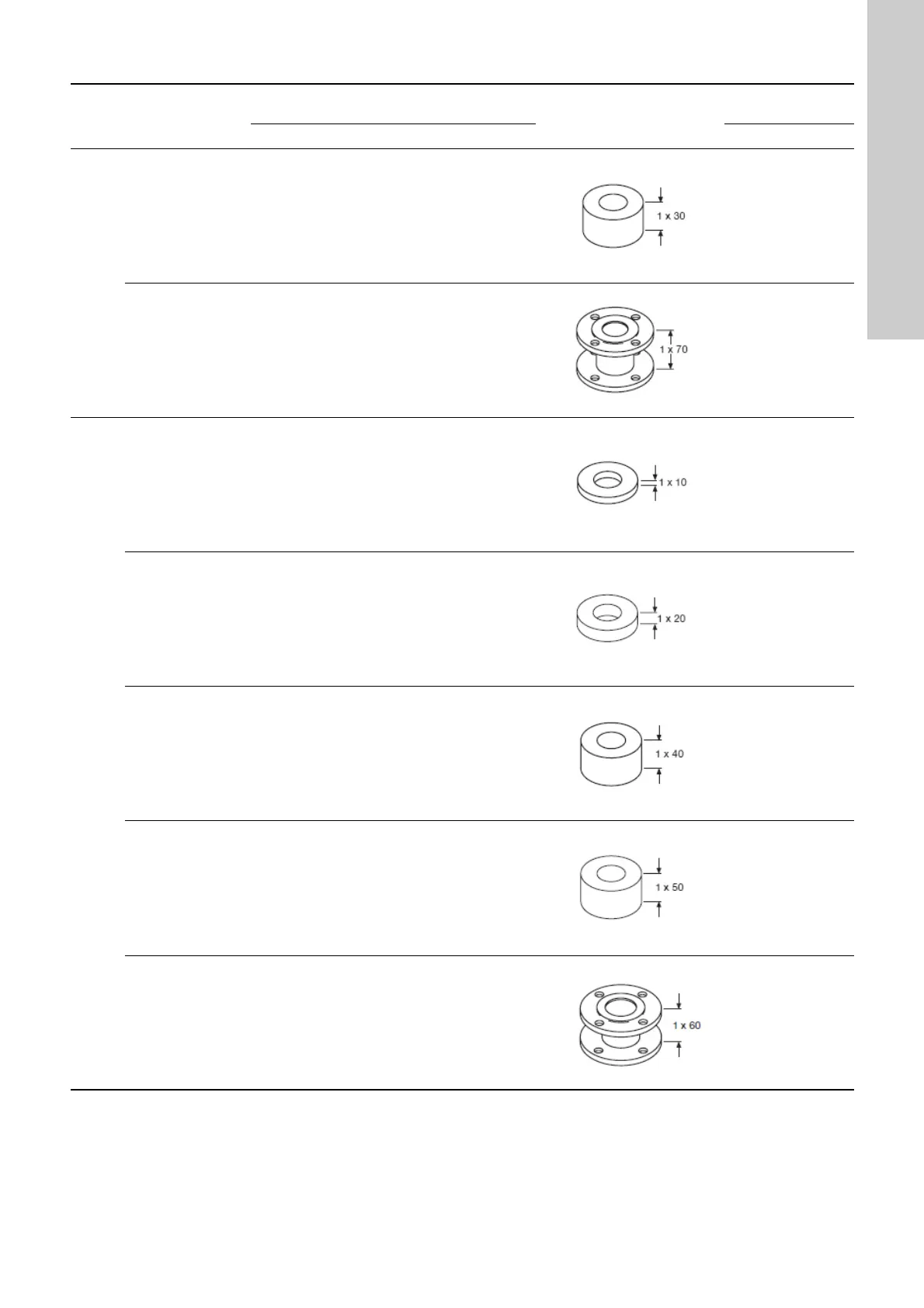

11.4 Adapter for various port-to-port lengths
DN Type
Height
[mm]
Diameter
[mm]
Pitch circle diameter
[mm]
Adapter
Product number
PN 6 PN 10 PN 6 PN 10 PN 6 PN 10
40
A40-30 1 x 30 - - - -
TM05 4372 2212
96281076 96608515
A40-70 1 x 70 - - 100 110
TM05 4373 2212
539921 539721
50
A50-10 1 x 10 90 102 - 125
TM05 4374 2212
549921 549821
A50-20 1 x 20 90 102 - -
TM05 4375 2212
549922 549822
A50-40 1 x 40 - - - -
TM05 4376 2212
96281077 96608516
A50-50 1 x 50 90 102 - -
TM05 4377 2212
549923 549823
A50-60 1 x 60 - - 110 125
TM05 4378 2212
549924 549824

Grundfos MAGNA1 Series Specifications

General

Insulation Class	F
Type	Circulator pump
Control Panel Position	Integrated
Series	MAGNA1
Weight	Varies by model
Power Supply	3 x 380-480 V, 50/60 Hz
Pump Housing	Cast iron
Connection Type	Flanged
Voltage	380-480 V
Material	Cast iron, stainless steel
Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
